Gigabit Ethernet, 54V, 60W, IP67
The single-port midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.

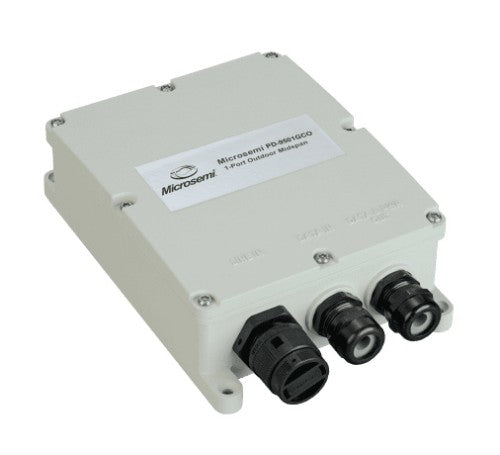

Microsemi PD-9501GCO Fast Ethernet, Gigabit Ethernet 54 V
£167.82
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Outdoor rated: IP67
Description
SummaryThe single-port midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Power over Ethernet (PoE) voltage | 54 V |
| Features | |
| Plug and Play | Yes |
| Surge protection | Yes |
| Product colour | Black, White |
| Pin assignment & polarity | : 4/5 (+), 7/8 (–), 1/2(–), 3/6(+) |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Certification | IP67, CE, FCC Part 15, Class B, EN 55032 Class B (Emissions), EN 55024, EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI, UL/IEC/EN 60950-1 (ed.2), UL 60950-22, NEMA 250, Level 4X ASTM B-117 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet (PoE) voltage | 54 V |
| Input voltage | 100-240 V |
| Input frequency | 50/60 Hz |
| Input current | 2 A |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 149 °F |
| Operating altitude | 0 - 2000 m |
| Input voltage | 100-240 V |
| Input frequency | 50/60 Hz |
| Input current | 2 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Compliance certificates | RoHS, WEEE |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 149 °F |
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
| Weight | 1.4 kg |
| Width | 170 mm |
| Depth | 140 mm |
| Height | 60 mm |
| Certificates | |
| Certification | IP67, CE, FCC Part 15, Class B, EN 55032 Class B (Emissions), EN 55024, EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI, UL/IEC/EN 60950-1 (ed.2), UL 60950-22, NEMA 250, Level 4X ASTM B-117 |
