DES-1005D - Fast Ethernet, Duplex, 5x RJ-45, IEEE 802.3x, 2K MAC, Auto-MDIX, RoHS, Black
The DES-1005D allows users to simply plug any port to either a 10Mbps Ethernet or 100Mbps Fast Ethernet network for compatibility, convenience, and faster connection. The switch comes in a small compact size designed for easy installation and high performance. The DES-1005D eliminates unnecessary traffic and relieves data congestion by delivering dedicated bandwidth for each of the five ports.
Each port on the DES-1005D supports automatic MDI/MDIX detection providing true 'plug and play' capability without the need for confusing crossover cables or crossover ports. With the media auto-sensing feature, plug in the network cable to the DES-1005D directly without the need to worry if the end node is a NIC (Network Interface Card) or switch/hub. The DES-1005D also supports flow control and auto-negotiation of half or full duplex transfer modes for each port.
The DES-1005D provides dynamic memory allocation for data flow control to guarantee against possible packet loss. The DSS-5+ uses fast store-and-forward switching to ensure low data latency and prevents error packages from transmitting among segments.
Auto-sensing 10/100 ports
The DES-1005D uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.

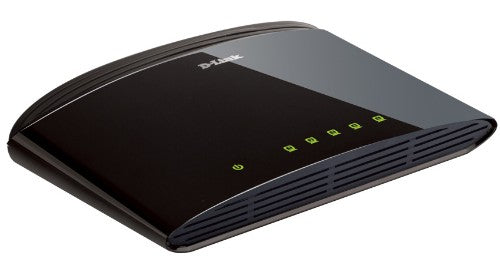

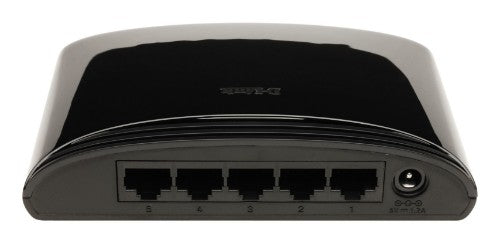

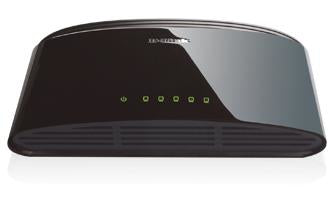

D-Link DES-1005D Unmanaged Fast Ethernet (10/100) Black
£6.57
Taxes included.
Shipping calculated at checkout.
Details
Description
D-Link's DES-1005D is a powerful 5 port 10/100Mbps desktop switch that is an ideal choice for small workgroups.The DES-1005D allows users to simply plug any port to either a 10Mbps Ethernet or 100Mbps Fast Ethernet network for compatibility, convenience, and faster connection. The switch comes in a small compact size designed for easy installation and high performance. The DES-1005D eliminates unnecessary traffic and relieves data congestion by delivering dedicated bandwidth for each of the five ports.
Each port on the DES-1005D supports automatic MDI/MDIX detection providing true 'plug and play' capability without the need for confusing crossover cables or crossover ports. With the media auto-sensing feature, plug in the network cable to the DES-1005D directly without the need to worry if the end node is a NIC (Network Interface Card) or switch/hub. The DES-1005D also supports flow control and auto-negotiation of half or full duplex transfer modes for each port.
The DES-1005D provides dynamic memory allocation for data flow control to guarantee against possible packet loss. The DSS-5+ uses fast store-and-forward switching to ensure low data latency and prevents error packages from transmitting among segments.
Auto-sensing 10/100 ports
The DES-1005D uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| MAC address auto-learning supported | Yes |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Packet buffer memory | 0.046875 MB |
| MAC address table | 2000 entries |
| Supported data transfer rates | 10/20/100/200 Mb/s |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
| Forwarding rate | 0.1488 Mpps |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | LAN, Power |
| Rack mounting | No |
| Certification | RoHS, FCC, CE |
| Performance | |
| Plug and Play | Yes |
| Packet buffer memory | 0.046875 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (typical) | 2.5 W |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Power LED | Yes |
| Packet transfer speed | 14880 - 148800 p/s |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 8.528 BTU/h |
| Weight & dimensions | |
| Width | 125.3 mm |
| Depth | 83.4 mm |
| Height | 29.1 mm |
| Packaging content | |
| User guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Packaging data | |
| Package width | 65 mm |
| Package depth | 105 mm |
| Package height | 98 mm |
| Package weight | 170 g |
| User guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Shipping (inner) case width | 35 cm |
| Shipping (inner) case net weight | 8.5 kg |
| Shipping (inner) case length | 51.5 cm |
| Shipping (inner) case height | 23 cm |
| Products per shipping (inner) case | 50 pc(s) |
| Products per pallet (sea) | 2400 pc(s) |
| Products per pallet (air) | 2400 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Pallet height (sea) | 197.5 cm |
| Pallet height (air) | 197.5 cm |
| Pallet gross weight (sea) | 465.2 kg |
| Pallet gross weight (air) | 465.2 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Shipping (inner) case gross weight | 9.25 kg |
| Memory | |
| Packet buffer memory | 0.046875 MB |
| Certificates | |
| Certification | RoHS, FCC, CE |
| Indication | |
| Power LED | Yes |
| LED indicators | LAN, Power |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
