15.6'', 16:9, 1920 x 1080, 60 Hz, 371 x 227.5 x 26.9 mm
Touchscreen Monitor
The 1504L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 15” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 15" touchscreen.
Easily pair the 15-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1504L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti- glare coverglass and low-blue light settings - the 1504L 15-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.
Durable, energy efficient touchscreen.
- Scratch-resistant glass surface
- IP54 sealed design
- IK08 impact resistant
- Energy Star 8.0 certified
Secure your cables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.

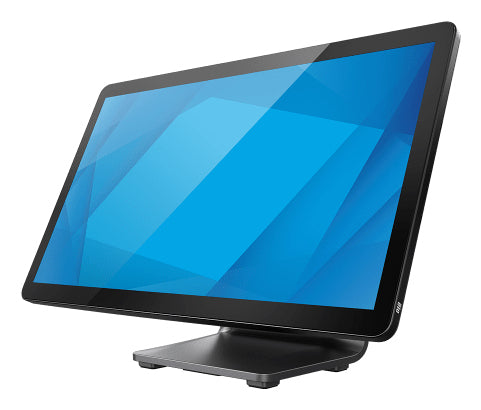

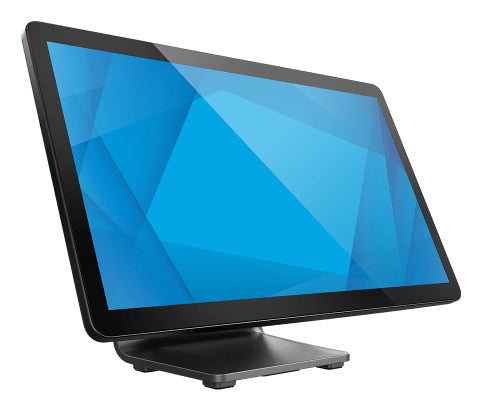

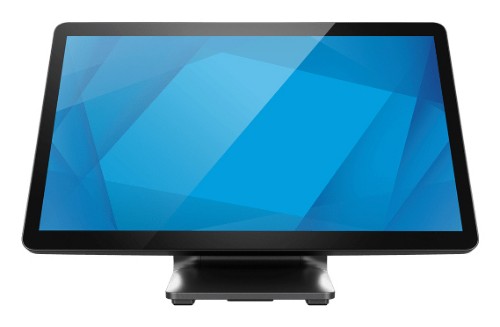

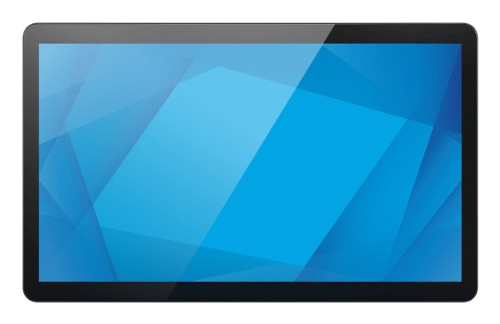

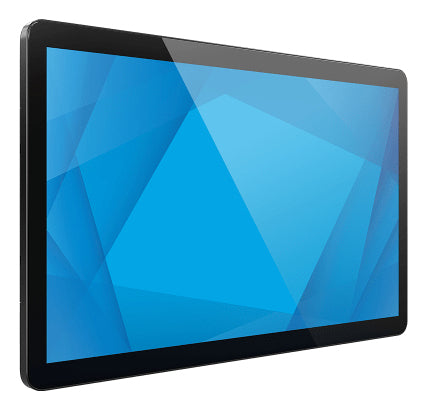

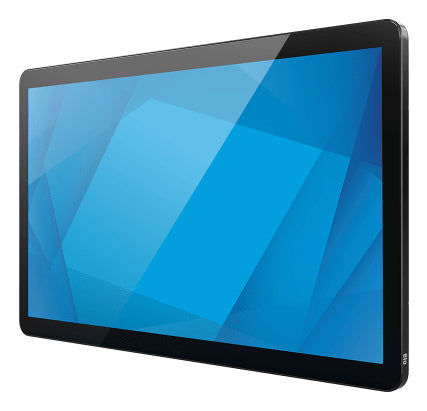

Elo Touch Solutions 1504L Digital signage flat panel 39.6 cm (15.6") LED 450 cd/m² Black Touchscreen
Elo Touch Solutions 1504L Digital signage flat panel 39.6 cm (15.6") LED 450 cd/m² Black Touchscreen
£437.28
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Scratch-resistant glass surface
- IP54 sealed design
- IK08 impact resistant
- Energy Star 8.0 certified
Description
1504L 15-inchTouchscreen Monitor
The 1504L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 15” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 15" touchscreen.
Easily pair the 15-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1504L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti- glare coverglass and low-blue light settings - the 1504L 15-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.
Durable, energy efficient touchscreen.
- Scratch-resistant glass surface
- IP54 sealed design
- IK08 impact resistant
- Energy Star 8.0 certified
Secure your cables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.
Specifications
| Display | |
|---|---|
| Panel type | TFT-LCD |
| Display number of colours | 16.7 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Active display area (W x H) | 344.16 x 193.59 mm |
| Display technology | LED |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 450 cd/m² |
| Response time | 25 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 419.1 cm |
| Horizontal scan range | 30 - 82 kHz |
| Anti-glare screen | Yes |
| Number of displays | 1 |
| Touchscreen technology | Projected capacitive system |
| Native refresh rate | 60 Hz |
| Multi-touch | Yes |
| Ports & interfaces | |
| USB connector type | Micro-USB, USB Type-A, USB Type-C |
| USB port | Yes |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Ethernet LAN | No |
| HDMI ports quantity | 1 |
| USB ports quantity | 6 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Orientation | Horizontal/Vertical |
| Product colour | Black |

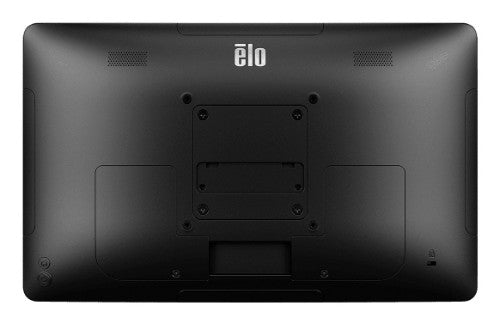

| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| Power | |
| Power consumption (sleep) | 1 W |
| Power consumption (off) | 0.25 W |
| Power consumption (typical) | 12.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Weight & dimensions | |
| Weight (with stand) | 2.9 kg |
| Display width | 371 mm |
| Display depth | 26.9 mm |
| Display height | 227.5 mm |
| Display weight | 1.7 kg |
| Packaging data | |
| Package width | 451 mm |
| Package depth | 220 mm |
| Package height | 342 mm |
| Package weight | 5.6 kg |
| Cables included | HDMI, Power, USB Type-A to USB Type-C |
| Packaging content | |
| Stand included | Yes |
| Cables included | HDMI, Power, USB Type-A to USB Type-C |
| Stand colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | Micro-USB, USB Type-A, USB Type-C |
| Stand included | Yes |
| Panel type | TFT-LCD |
| Number of simultaneous touchpoints | 10 |
| Weight (with stand) | 2.9 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| USB connector type | Micro-USB, USB Type-A, USB Type-C |
| Stand included | Yes |
| Panel type | TFT-LCD |
| Number of simultaneous touchpoints | 10 |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LED |
| DC-in jack | Yes |
| Aspect ratio | 16:9 |
| Weight (with stand) | 2.9 kg |
| Energy efficiency scale | A to G |
