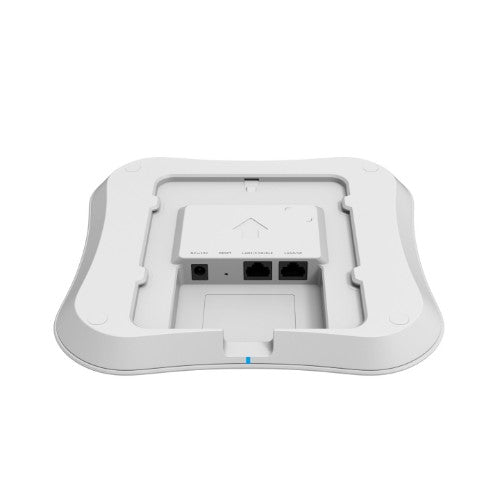

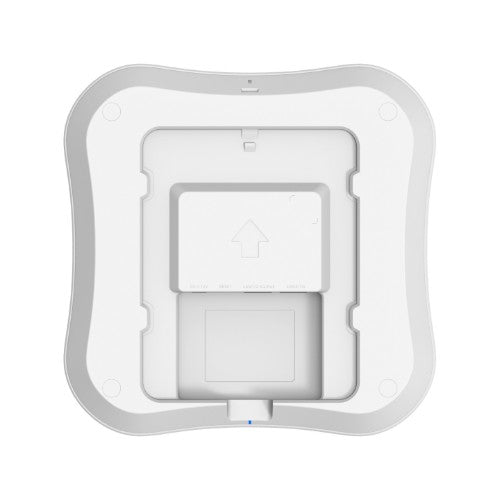

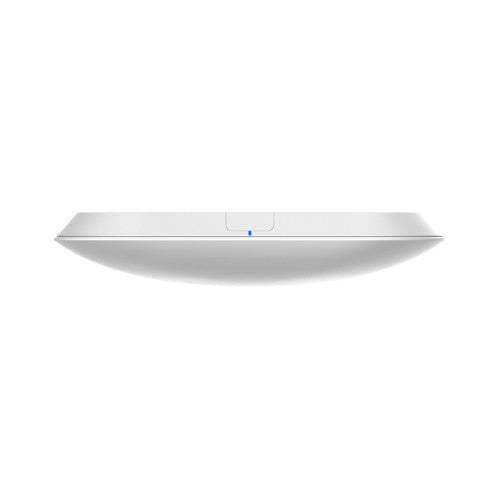

Ruijie Networks RG-RAP72PRO wireless access point 5011 Mbit/s White Power over Ethernet (PoE)
1/8
Ruijie Networks RG-RAP72PRO wireless access point 5011 Mbit/s White Power over Ethernet (PoE)
Ruijie Networks

Ruijie Networks RG-RAP72PRO wireless access point 5011 Mbit/s White Power over Ethernet (PoE)

MPN: RG-RAP72PRO
In stock: 20
Exc Vat £110.30
Inc Vat £132.36
Shipping calculated at checkout.
Details
RG-RAP72Pro, Reyee Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point

Key Features

  • Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
  • Superior streaming with Wi-Fi 7's exclusive MLO feature
  • Compact design and easy installation
  • Enhanced data transmission with 4K-QAM for faster speeds
  • Ideal for integrating with enterprise switches to create a robust office network

Description

Specifications

Data transmission
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate 5011 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Reset button Yes
Spread spectrum method OFDMA
Number of users 511 user(s)
Receiver sensitivity 11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，- 85dBm(11Mbps) 11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，- 76dBm(36Mbps)，-71dBm(54Mbps) 11n: -83dBm(MCS0)，-65dBm(MCS7)，- 83dBm(MCS8)，-65dBm(MCS15) 11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9) 11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9) 11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9) 11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9) 11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11) 11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11) 11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11) 11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11) 11be: 20MHz: –85dBm(MCS0), –52dBm(MCS13) 11be: 40MHz: –82dBm(MCS0), –49dBm(MCS13) 11be: 80MHz: –82dBm(MCS0), –46dBm(MCS13) 11be: 160MHz: –79dBm(MCS0), –44dBm(MCS13)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate 5011 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Internal memory 512 MB
Flash memory 256 MB
Network
Spread spectrum method OFDMA
Number of users 511 user(s)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Memory
Internal memory 512 MB
Flash memory 256 MB
Features
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Spread spectrum method OFDMA
Number of users 511 user(s)
Receiver sensitivity 11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，- 85dBm(11Mbps) 11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，- 76dBm(36Mbps)，-71dBm(54Mbps) 11n: -83dBm(MCS0)，-65dBm(MCS7)，- 83dBm(MCS8)，-65dBm(MCS15) 11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9) 11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9) 11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9) 11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9) 11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11) 11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11) 11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11) 11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11) 11be: 20MHz: –85dBm(MCS0), –52dBm(MCS13) 11be: 40MHz: –82dBm(MCS0), –49dBm(MCS13) 11be: 80MHz: –82dBm(MCS0), –46dBm(MCS13) 11be: 160MHz: –79dBm(MCS0), –44dBm(MCS13)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate 5011 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 4323 Mbit/s
Internal memory 512 MB
Flash memory 256 MB
Security
Number of SSID supported 8
Security algorithms OWE, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA3-SAE
Protocols
DHCP server Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Power
Power consumption (max) 30 W
Power over Ethernet (PoE) Yes
Input current 2.5 A
DC voltage range 12 V
Design
International Protection (IP) code IP41
Placement Ceiling, Wall
Product colour White
Reset button Yes
LED indicators System
Antenna
Antenna type Internal
Antenna gain level (max) 3 dBi
Antenna direction type Omni-directional
Technical details
Reset button Yes
Receiver sensitivity 11b: -91dBm(1Mbps)，-88dBm(5.5Mbps)，- 85dBm(11Mbps) 11a/g: -89dBm(6Mbps)，-80dBm(24Mbps)，- 76dBm(36Mbps)，-71dBm(54Mbps) 11n: -83dBm(MCS0)，-65dBm(MCS7)，- 83dBm(MCS8)，-65dBm(MCS15) 11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9) 11ac: 40MHz: -79dBm(MCS0), -57dBm(MCS9) 11ac: 80MHz: -76dBm(MCS0), -51dBm(MCS9) 11ac: 160MHz: -76dBm(MCS0), -50dBm(MCS9) 11ax: 20MHz: -85dBm(MCS0), -58dBm(MCS11) 11ax: 40MHz: -82dBm(MCS0), -54dBm(MCS11) 11ax: 80MHz: -79dBm(MCS0), -52dBm(MCS11) 11ax: 160MHz: -76dBm(MCS0), -49dBm(MCS11) 11be: 20MHz: –85dBm(MCS0), –52dBm(MCS13) 11be: 40MHz: –82dBm(MCS0), –49dBm(MCS13) 11be: 80MHz: –82dBm(MCS0), –46dBm(MCS13) 11be: 160MHz: –79dBm(MCS0), –44dBm(MCS13)
Compliance certificates CE, Federal Communications Commission (FCC), ISED, RoHS, cTUVus
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), ISED, RoHS, cTUVus
Indication
LED indicators System
Weight & dimensions
Width 208 mm
Depth 208 mm
Weight 650 g
Height 40 mm
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 95%
Logistics data
Quantity per pack 1 pc(s)
