Enterprise Campus 24 PoE, 16x 10 GbE, 8x 2.5 GbE, PoE+++ 90W, 2x 25G SFP28, 460 Gbps, 1.3" touchscreen, 1U, SGCC steel

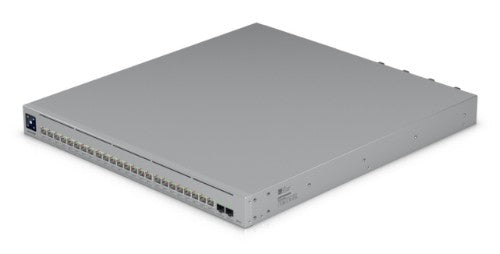

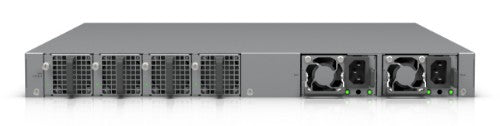

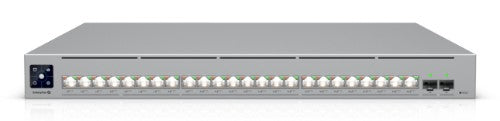

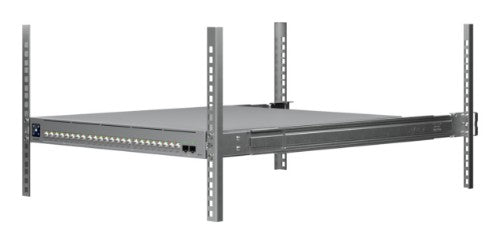

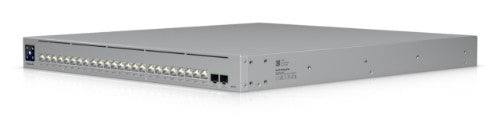

Ubiquiti UniFi ECS-24-POE network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
£2,066.38
Taxes included.
Shipping calculated at checkout.
Details
Description
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC-in jack |
| SFP28 ports quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 16 |
| Network | |
| Networking standards | IEEE 802.1x, IEEE 802.3bt |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 256000 |
| IGMP snooping | Yes |
| Data transmission | |
| Packet buffer memory | 8 MB |
| MAC address table | 128000 entries |
| Switching capacity | 460 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 342.24 Mpps |
| Throughput | 230 Gbit/s |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Display type | LCM |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Activity, Link, Status |
| Housing material | SGCC |
| Rack mounting | Yes |
| Number of fans | 4 fan(s) |
| Redundant fans support | Yes |
| Power | |
| Power consumption (max) | 2400 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 1050 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 496 mm |
| Height | 43.7 mm |
| Weight | 9.46 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | Power |
| Mounting brackets included | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Rack rails | Yes |
| Rack mount kit | Yes |
| Cables included | Power |
| Performance | |
| Packet buffer memory | 8 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Memory | |
| Packet buffer memory | 8 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Indication | |
| LED indicators | Activity, Link, Status |
| Other features | |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
