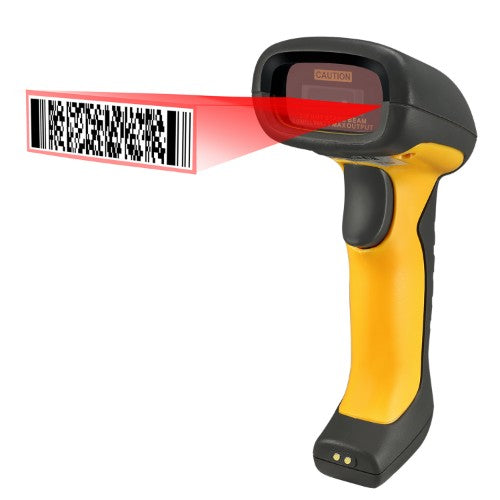

NuScan 5200TR - 2.4GHz RF Wireless Antimicrobial & Waterproof 2D Barcode Scanner
Adesso NuScan 5200TR - 2.4GHz RF Wireless Antimicrobial & Waterproof 2D Barcode Scanner
£149.31
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Antimicrobial - The antimicrobial material prevents the growth of harmful bacteria and germs and can be cleaned with soap and water or disinfectants.
- Waterproof - IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IP67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a depth of 3 ft.
- Drop Protection - With its rugged design and durable silicone plastic material, the Nuscan 5200TR is less likely to become damaged due to accidental drops from up to 20 feet.
- 2.4 GHz Wireless Technology - Connecting the Nuscan 5200TR to your device has never been easier. Simply plug in the usb cable attached to the cradle and your scanner is good to go. The cradle has a built in usb receiver that makes the scanner completely plug-n-play!
- Charging Cradle with Built-In Receiver - This charging cradle allows for hands-free scans and charges the scanner at the same time. It’s built-in usb receiver also makes the scanner completely Plug-n-Play!
- 2D & 1D Scanning Engine - Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Data Matrix and micro QR Code. 1D barcode symbologies are supported as well making the Nuscan 5200TR truly reliable.
- Superior Scanning Performance - The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS engine offer fast and accurate scanning results.
- Long Range Barcode Scanning - The NuScan 5200TR is able to scan barcodes and transmit those barcode data to its charging cradle with built-in receiver from up to 300 feet away.
Description
Antimicrobial, Waterproof, Drop ProtectionSpecifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), MSI, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Data Matrix, Micro QR Code, PDF417, QR Code |
| Motion tolerance (cm/s) | 60.96 |
| Yaw reading angle | -360 - 360° |
| Working distance | 30 cm |
| Wavelength | 650 nm |
| Tilt reading angle | -50 - 50° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Pitch reading angle | -45 - 45° |
| Maximum scan width | 0.254 mm |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Operating frequency | 2400 MHz |
| Cable length | 1.83 m |
| Standard interfaces | RF Wireless |
| Performance | |
| Protection features | Shock resistant, Waterproof |
| LED indicators | Yes |
| Housing material | Plastic, Silicone |
| International Protection (IP) code | IP67 |
| Product colour | Black, Yellow |
| Certification | FCC, CE |
| Buzzer | Yes |
| Country of origin | China |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant, Waterproof |
| LED indicators | Yes |
| Housing material | Plastic, Silicone |
| International Protection (IP) code | IP67 |
| Product colour | Black, Yellow |
| Certification | FCC, CE |
| Power | |
| Power consumption | 220 mA |
| Power source type | Battery |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 72 mm |
| Depth | 100 mm |
| Height | 175 mm |
| Weight | 160 g |
| Package width | 266.7 mm |
| Package depth | 182.8 mm |
| Package height | 114.3 mm |
| Package weight | 907 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant, Waterproof |
| LED indicators | Yes |
| Housing material | Plastic, Silicone |
| International Protection (IP) code | IP67 |
| Compatible operating systems | Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP, Mac OS X |
| Product colour | Black, Yellow |
| Certification | FCC, CE |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package width | 266.7 mm |
| Package depth | 182.8 mm |
| Package height | 114.3 mm |
| Package weight | 907 g |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Compatible operating systems | Windows 10, Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP, Mac OS X |
