5MP, CMOS, WDR, 0.25 lux
Ideal for both indoor and outdoor installations, this sensor unit offers high-quality 5 MP video, excellent 185° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.
High image quality
This fisheye sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 185° horizontal field of view, it’s perfect when you need wide-area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.
Flexible and discreet
This sensor unit delivers 5 MP and a 185° horizontal field of panoramic view. With a small cylinder-shaped form factor, it offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F2135-RE Sensor to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.
Ruggedized fisheye sensor
This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this fisheye sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure ruggedized installation.

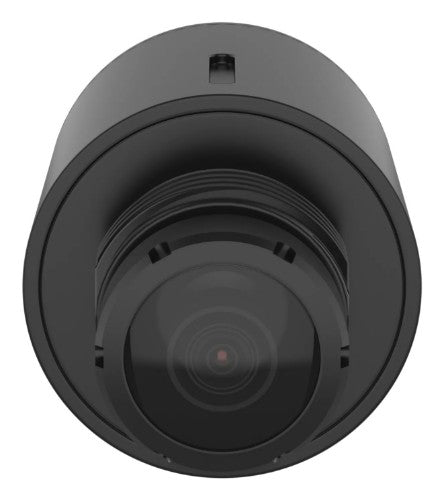

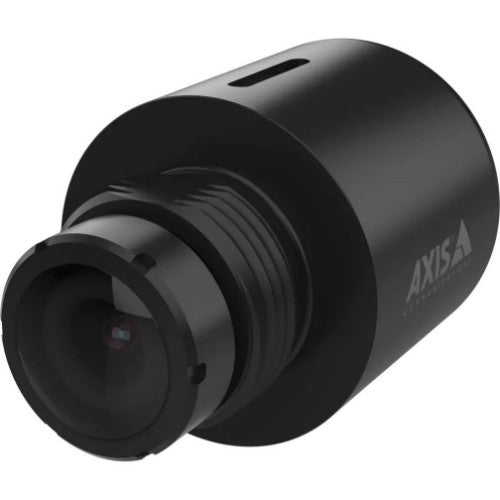

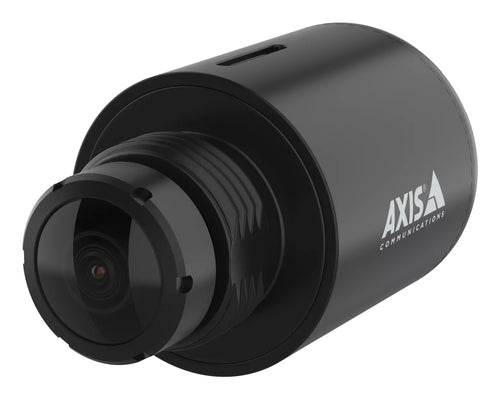

Axis F2137-RE Camera module
MPN:
02869-021
Out of stock
Price excluding VAT:
Exc Vat £1,873.54
Price including VAT:
Inc Vat £2,248.25
Shipping calculated at checkout.
Details
Key Features
- High-quality 5 MP resolution
- 185° horizontal field of view
- Rugged sensor unit with SMA connector
- Can be installed in vehicles and machinery
- IP66-/IP67-/IP6K9K-rated
Description
5 MP discreet fisheye sensorIdeal for both indoor and outdoor installations, this sensor unit offers high-quality 5 MP video, excellent 185° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.
High image quality
This fisheye sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 185° horizontal field of view, it’s perfect when you need wide-area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.
Flexible and discreet
This sensor unit delivers 5 MP and a 185° horizontal field of panoramic view. With a small cylinder-shaped form factor, it offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F2135-RE Sensor to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.
Ruggedized fisheye sensor
This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this fisheye sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure ruggedized installation.
Specifications
| Features | |
|---|---|
| Housing material | Aluminium |
| Brand compatibility | Axis |
| Compatibility | F9104-B Mk II, F9111-R Mk II, F9114-B Mk II, F9114-R Mk II |
| Type | Camera module |
| Placement supported | Universal |
| Product colour | Black |
| International Protection (IP) code | IP66, IP67, IP6K9K |
| Wide Dynamic Range (WDR) | Yes |
| Lens mount interface | M12 |
| Image sensor size | 1/2.78" |
| Sensor type | CMOS |
| Focal length range | 1.98 mm |
| F-number (relative aperture) | 2 |
| Viewing angle, horizontal | 185° |
| Viewing angle, vertical | 125° |
| Resolution | 2592 x 1944 pixels |
| Number of connectors | 1 |
| Image sensor | |
| Lens mount interface | M12 |
| Image sensor size | 1/2.78" |
| Sensor type | CMOS |
| Focal length range | 1.98 mm |
| F-number (relative aperture) | 2 |
| Viewing angle, horizontal | 185° |
| Viewing angle, vertical | 125° |
| Resolution | 2592 x 1944 pixels |
| Ergonomics | |
| Number of connectors | 1 |
| Power | |
| Power consumption (typical) | 1 W |
| Power consumption (max) | 1.9 W |
| Technical details | |
| Compatibility | F9104-B Mk II, F9111-R Mk II, F9114-B Mk II, F9114-R Mk II |
| Type | Camera module |
| Placement supported | Universal |
| International Protection (IP) code | IP66, IP67, IP6K9K |
| Doesn't contain | BFR, CFR, PVC |
| Weight & dimensions | |
| Width | 30 mm |
| Weight | 54 g |
| Height | 30 mm |
| Depth | 58 mm |
| Colour | |
| Product colour | Black |
| Packaging data | |
| Quantity per pack | 8 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
