8 x 10/100/1000Base-T PoE+ ports, 2 SFP, 125W PoE, 20 Gbps, 14.88 Mpps, 4094 VLAN, 9216 MTU, 1200 ACL, MTBF 200000, Fanless, 6 kV, 300mm x 205mm x 44mm, 1.8kg
- Link Aggregation
- IGMP Snooping
- VLAN
Multiple Security Policies Protect Your Network
- Security
- Stability
Cloud, Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Monitor switch statistics at anytime anywhere
- Configure VLANs on Ruijie Cloud APP
- Easy maintainance, save onsite time and cost

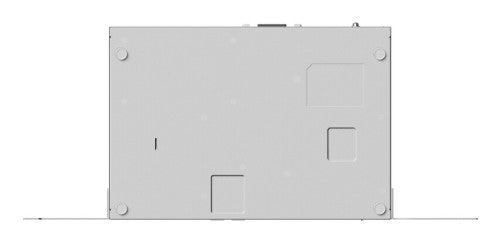

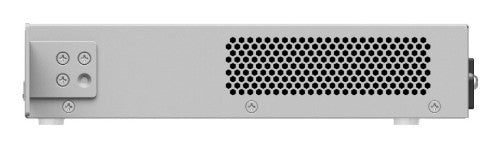

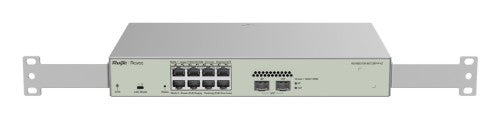

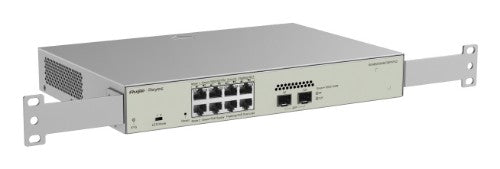

Ruijie Networks RG-NBS3100-8GT2SFP-P-V2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Metallic
£102.09
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Enterprise-class Quality Ensures High Performance
- IP Camera Recognition, Unique Value for CCTV Network
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
Description
Enterprise-class Quality Ensures High Performance- Link Aggregation
- IGMP Snooping
- VLAN
Multiple Security Policies Protect Your Network
- Security
- Stability
Cloud, Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Monitor switch statistics at anytime anywhere
- Configure VLANs on Ruijie Cloud APP
- Easy maintainance, save onsite time and cost
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| 10G support | No |
| Virtual LAN features | Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Number of VLANs | 4094 |
| Security | |
| Access Control List (ACL) rules | 1200 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Design | |
| Reset button | Yes |
| Product colour | Metallic |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 200000 h |
| Fanless | Yes |
| Stackable | Yes |
| Power | |
| Power supply included | Yes |
| Surge protection voltage | 6 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 15 W |
| Input current | 2 A |
| Surge protection | Yes |
| Power source | AC |
| Power saving mode (EEE) | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 125 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 53.5 V |
| Other features | |
| Packaging content | Rubber Feet x 4 Power Cord Retainer Clip Management Software Pre-installed on the device. Yellow/Green Ground Wire |
| Warranty period | 5 year(s) |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Voice VLAN |
| Weight & dimensions | |
| Width | 205 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 1.8 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | Power |
| Packaging content | Rubber Feet x 4 Power Cord Retainer Clip Management Software Pre-installed on the device. Yellow/Green Ground Wire |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Package width | 401 mm |
| Package depth | 359 mm |
| Package height | 94 mm |
| Package weight | 2 kg |
| Quick start guide | Yes |
| Cables included | Power |
| Technical details | |
| Product colour | Metallic |
| Stackable | Yes |
| Mean time between failures (MTBF) | 200000 h |
| Rack mounting | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Indication | |
| LED indicators | Yes |
