100Mbps, MIMO, 5.1-5.8 GHz, 26 dBm, 14 dBi, RJ-45, PoE, 179x120x45mm, pre-configured
Clients can quickly build up stable Point to Point or Point to MultiPoint outdoor wireless broadband access systems for "Last mile access" at low cost. The MICRO range is used in CCTV and data networks extensively where reliability and ease of installation is paramount.
The amazingly small form factor of the MICRO will benefit locations where the radio needs to be unobtrusive. (17.9 x 12 x 4.5 cm). Available in Standard White or Carbon Black to fit into street scenery. Other colours available on special order.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.

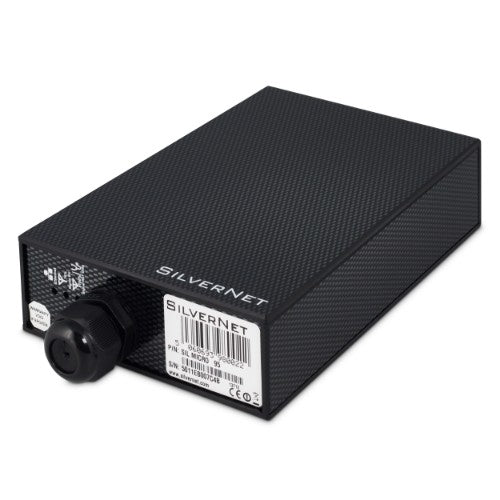

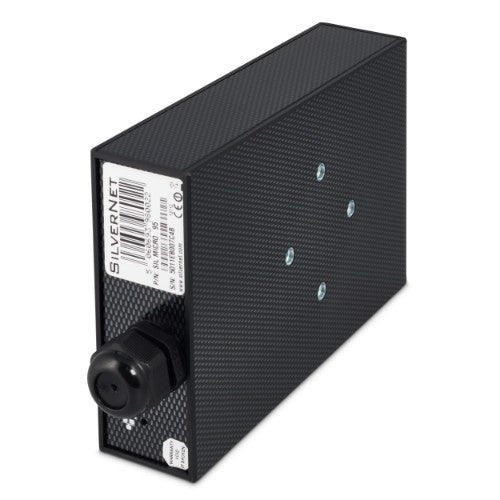

SilverNet SIL MICRO PCP bridge/repeater Network bridge 100 Mbit/s Black, White
MPN:
SIL MICRO PCP
Out of stock
Price excluding VAT:
Exc Vat £605.17
Price including VAT:
Inc Vat £726.20
Shipping calculated at checkout.
Details
Key Features
- Point-to-Point Outdoor Wireless Bridge Up to 2KM
- Point-to-MultiPoint Client
- 100Mbps throughput
- Integrated 14dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (Transmit Power Control)
- PoE 802.3af
- Software Upgradeable to 240Mbps or 500Mbps
Description
Nominated for 'Security Product of the Year 2012', due to it's high MTBF and robust design, the MICRO has always been a great choice for harsh environments that need high reliability. The simplicity of installation and full integration into our Free NMS 'SilverView' make this the go-to product for professional CCTV and network installers.Clients can quickly build up stable Point to Point or Point to MultiPoint outdoor wireless broadband access systems for "Last mile access" at low cost. The MICRO range is used in CCTV and data networks extensively where reliability and ease of installation is paramount.
The amazingly small form factor of the MICRO will benefit locations where the radio needs to be unobtrusive. (17.9 x 12 x 4.5 cm). Available in Standard White or Carbon Black to fit into street scenery. Other colours available on special order.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Specifications
| Data transmission | |
|---|---|
| Supported data transfer rates | 100, 240, 500Mbps |
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 2000 m |
| Antenna | |
| Antennas quantity | 1 |
| Antenna gain level (max) | 14 dBi |
| Antenna design | Internal |
| Wireless LAN features | |
| Transmission gain | 0 - 14 dB |
| Signal strength | -40 dBm |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Outdoor range | 2000m |
| Frequency band | 5.1 - 5.8 GHz |
| Indoor range | 2000m |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Antenna gain level (max) | 14 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Output power (dBm) | 26 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static IP | Yes |
| Dynamic IP | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Outdoor range | 2000m |
| Frequency band | 5.1 - 5.8 GHz |
| Supported data transfer rates | 100, 240, 500Mbps |
| Channels quantity | 25 channels |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security | |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2 |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| LED indicators | LAN, Signal strength |
| Features | |
| Product type | Network bridge |
| Product colour | Black, White |
| Reset button | Yes |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| International Protection (IP) code | IP66 |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 60000 h |
| LED indicators | LAN, Signal strength |
| Country of origin | United Kingdom |
| Remote control function | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| AC input voltage | 100-240 V |
| Power plug type | Type G |
| Power consumption (max) | 16 W |
| Power source type | DC, PoE |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -4 - 158 °F |
| Endurance | |
| Mean time between failures (MTBF) | 60000 h |
| Certificates | |
| Certification | CE, FCC |
| Technical details | |
| Product colour | Black, White |
| Wall mountable | Yes |
| Operating temperature (T-T) | -4 - 158 °F |
| Quantity per pack | 2 pc(s) |
| Country of origin | United Kingdom |
| Weight & dimensions | |
| Weight | 500 g |
| Width | 123 mm |
| Depth | 48 mm |
| Height | 170 mm |
| Packaging content | |
| Quick installation guide | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Antenna included | Yes |
| Power supply included | Yes |
| Packaging content | Complete radio link. Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
| Packaging data | |
| Package width | 285 mm |
| Package weight | 3.02 kg |
| Package type | Box |
| Package height | 115 mm |
| Package depth | 320 mm |
| Quantity per pack | 2 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
