8xSFP+/2xSFP28, 32K MAC, 260 Gbit/s, 193.44 Mpps, 100-250V, 50/60Hz
With AXIS D8308 Fiber Aggregation Switch you can connect multiple Axis devices using fiber midspans over long distances. It also enables easy expansion by simply adding more fiber or network switches.
For long distance installations
Long-distance installations often require fiber optic cables to connect different sites because of fiber's ability to transmit data over much greater distances with minimal signal loss. AXIS D8308 support fiber optic connections, making it ideal for linking remote locations within a network.
Easy to install and configure
AXIS D8308 Fiber Aggregation Switch is easy to install using standard Axis tools as AXIS IP Utility and AXIS Device Manager. It comes with an individual password, easy to use setup wizard, and a comprehensive set of configuration tools. For instance, an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Port Security, and Spanning tree to further optimize the total solution.

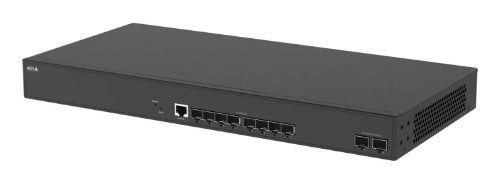

Axis D8308 L2/L3 Black
£1,174.06
Taxes included.
Shipping calculated at checkout.
Details
Description
Scalable and flexibleWith AXIS D8308 Fiber Aggregation Switch you can connect multiple Axis devices using fiber midspans over long distances. It also enables easy expansion by simply adding more fiber or network switches.
For long distance installations
Long-distance installations often require fiber optic cables to connect different sites because of fiber's ability to transmit data over much greater distances with minimal signal loss. AXIS D8308 support fiber optic connections, making it ideal for linking remote locations within a network.
Easy to install and configure
AXIS D8308 Fiber Aggregation Switch is easy to install using standard Axis tools as AXIS IP Utility and AXIS Device Manager. It comes with an individual password, easy to use setup wizard, and a comprehensive set of configuration tools. For instance, an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Port Security, and Spanning tree to further optimize the total solution.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Fiber ports quantity | 10 |
| Fiber optic connector | SFP+, SFP28 |
| Console port | RJ-45 |
| SFP28 ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Broadcast storm control | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 25GBASE-LR, 25GBASE-SR |
| Fiber optic connector | SFP+, SFP28 |
| Data transmission | |
| Throughput | 193.44 Mpps |
| MAC address table | 32000 entries |
| Switching capacity | 260 Gbit/s |
| Static route | Yes |
| Security | |
| Loop protection | Yes |
| Security algorithms | HTTPS, TLS |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Protocols | |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RIP v1/v2, OSPF v2/v3 |
| Routing protocols | OSPF, RIP |
| IP Source Guard (IPSG) | Yes |
| Design | |
| Product colour | Black |
| Stackable | Yes |
| Housing material | Steel |
| Rack mounting | Yes |
| Certification | CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC, TAA, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022 |
| Power | |
| Power protection features | Surge protection |
| AC input voltage | 100 - 250 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power protection features | Surge protection |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 211.1 mm |
| Height | 44 mm |
| Weight | 2.58 kg |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| Sustainability | |
| Doesn't contain | BFR, CFR, PVC |
| Performance | |
| Stackable | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | Yes |
| Housing material | Steel |
| Rack mounting | Yes |
| Doesn't contain | BFR, CFR, PVC |
| Compliance certificates | REACH, RoHS |
| Certificates | |
| Certification | CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC, TAA, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022 |
| Compliance certificates | REACH, RoHS |
| Packaging data | |
| Manual | Yes |
| Cables included | AC |
