Device Bridge, GbE LAN, 15W of PoE, 5 GHz, 867 Mbps, Polycarbonate, white

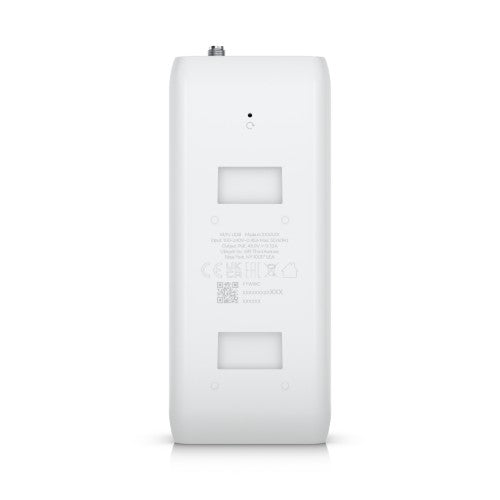

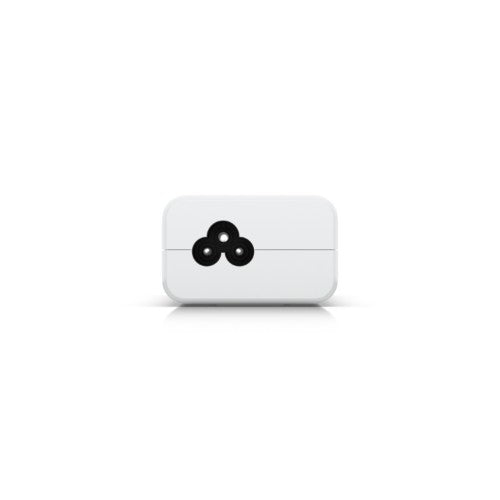

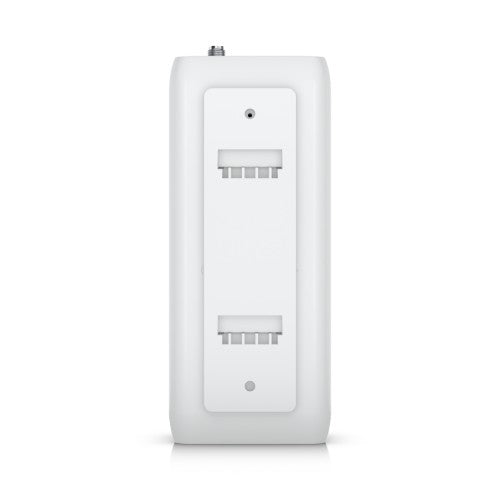

Ubiquiti UDB bridge/repeater Network bridge 866.7 Mbit/s White
MPN:
UDB
Low stock: 5
£93.14
VAT included.
Shipping calculated at checkout.
Details
Key Features
- (1) GbE LAN port that provides up to 15W of PoE
- 5 GHz band with up to 867 Mbps throughput rate
- Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection
Description
Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 866.7 Mbit/s |
| Antenna | |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | RP-SMA |
| Antenna design | Internal & external |
| Antenna type | 2x2 |
| Wireless LAN features | |
| Signal strength | 21 dBm |
| Frequency band | 5 GHz |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | RP-SMA |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 5 GHz |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Product type | Network bridge |
| Material | Polycarbonate (PC) |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Signal strength, Status |
| Mounting type | Wall |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 25 W |
| Power source type | AC |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Management features | |
| LED indicators | Signal strength, Status |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Technical details | |
| Material | Polycarbonate (PC) |
| Product colour | White |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions | |
| Weight | 200 g |
| Width | 130 mm |
| Depth | 55 mm |
| Height | 34 mm |
| Packaging content | |
| Cables included | AC |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
