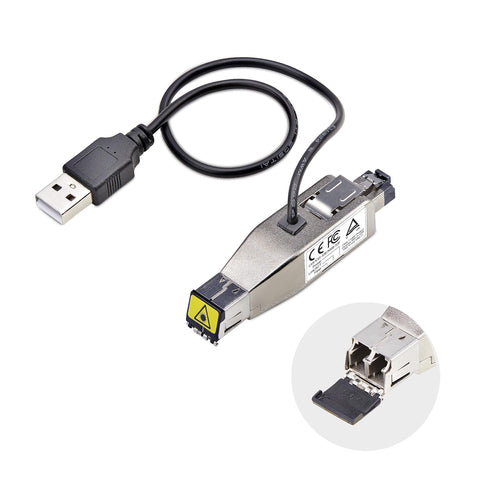

StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, TAA, USB Powered
This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features
The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility

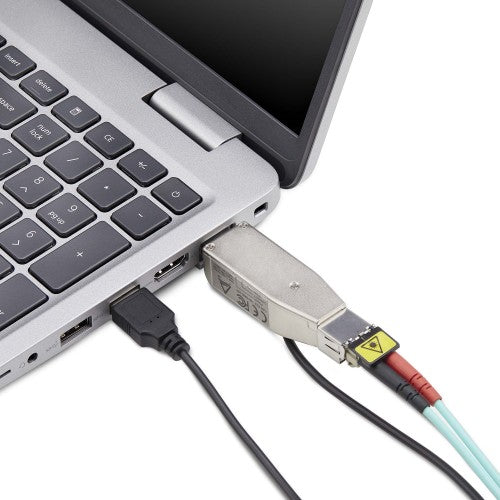

This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
The StarTech.com Advantage
StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, USB Powered, Compact Design, Metal Housing, Micro Mini, TAA
MPN:
D01ML55U-FIBER-MEDIA
In stock: 19
Price excluding VAT:
Exc Vat £97.11
Price including VAT:
Inc Vat £116.53
Shipping calculated at checkout.
Details
Key Features
- FIBER TO ETHERNET MEDIA CONVERTER: Converts Gigabit fiber to RJ45 copper in a compact form factor; No SFP/Cat6 cables required; Convenient built-in USB cable for power when power outlets or PoE are unavailable; Dimensions 3.2×0.8×0.7in (82.4x20x17.5mm)
- APPLICATIONS: Upgrade computers, switches, routers, or other equipment to fiber; Suitable for on-site network troubleshooting, field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking
- SHORT & LONG RANGE FIBER: LC slot compatible w/Single-Mode (10km) & Multi-Mode (800m); Single speed 1Gbps for both fiber and RJ-45 ports; Status LEDs including LFPT (Link Fault Pass-Through) enables IT admins to monitor network connectivity
- DURABLE CONSTRUCTION: IP20-rated full-metal housing for enhanced durability; Metal RJ45 latch tab ensures a robust and secure connection; Flexible strain relief on attached USB cable; Spring-loaded dust cover protects port when not in use
- TECH SPECS: Single speed 1Gbps; x1 LC port; x1 RJ45; LC duplex; Singlemode SMF (10km) & multimode MMF (800m); 1310nm; LFPT; IP20 rated all metal housing; 1ft (300mm) built-in USB power cable; Max power consumption 2.5W
Description
Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiberThis compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features
The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility
This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
The StarTech.com Advantage
Specifications
| Network | |
|---|---|
| Auto-negotiation | Yes |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-LX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Chipset | Marvell - 88E1512 |
| Fiber optic connector | LC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Auto-negotiation | Yes |
| Features | |
| International Protection (IP) code | IP20 |
| Housing material | Metal, Plastic |
| LED indicators | Activity, Link, Power |
| Product colour | Black, Silver |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| Power | |
| Power consumption (max) | 2.5 W |
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
| Width | 82 mm |
| Depth | 20 mm |
| Weight | 49 g |
| Height | 18 mm |
| Package depth | 80 mm |
| Package width | 136 mm |
| Package height | 32 mm |
| Package weight | 80 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| Package depth | 80 mm |
| Package width | 136 mm |
| Package height | 32 mm |
| Package weight | 80 g |
| Technical details | |
| International Protection (IP) code | IP20 |
| Housing material | Metal, Plastic |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1000 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Internal | No |
| Compliance certificates | Trade Agreements Act (TAA) |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| International Protection (IP) code | IP20 |
| Housing material | Metal, Plastic |
| LED indicators | Activity, Link, Power |
| Product colour | Black, Silver |
| Internal | No |
| Colour | |
| Product colour | Black, Silver |
| Certificates | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 126 mm |
| Products per master (outer) case | 24 pc(s) |
