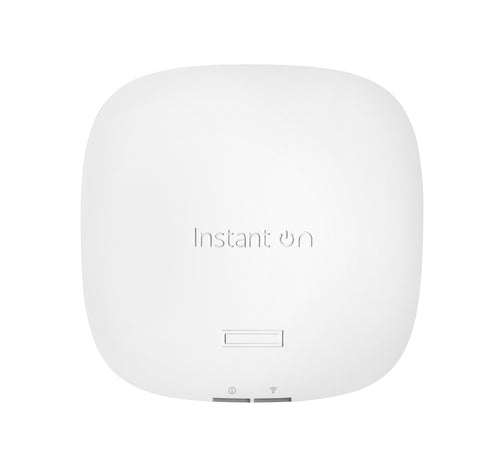

Networking Instant On Access Point Bundle with PSU (EU) AP22
HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.
Simple to build landing page allows customization of your guest access page with your own brand and logo.
Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
What is new supporting point:
Wi-Fi 6 for high performance and efficiency
Supports up to 75 associated clients
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
HPE Aruba Networking Networking Instant On Access Point Bundle with PSU (EU) AP22
MPN:
R6M50A
Out of stock
Price excluding VAT:
Exc Vat £101.49
Price including VAT:
Inc Vat £121.79
Shipping calculated at checkout.
Details
Reasons To Buy
Incredible Efficiency with Wi-Fi 6
HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.
Creates a Custom Guest Access Experience
HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.Simple to build landing page allows customization of your guest access page with your own brand and logo.
Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
Description
HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.What is new supporting point:
Wi-Fi 6 for high performance and efficiency
Supports up to 75 associated clients
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ax |
| Modulation | 256-QAM, 1024-QAM |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | None |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 256-QAM, 1024-QAM |
| Network | |
| Networking standards | IEEE 802.11ax |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | WPA2, WPA3 |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ax |
| Modulation | 256-QAM, 1024-QAM |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Bluetooth | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 10.1 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Certification | None |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5.6 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | None |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Weight | 500 g |
| Height | 37 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
