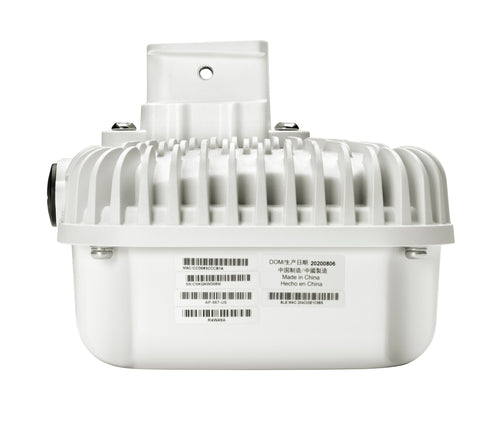

Aruba Networking AP-567 (US) 802.11ax Dual 2x2 Radio Integrated Directional Antennas Outdoor AP
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +65˚C, including full solar loading.
With maximum aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments.
It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
The access point supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
Target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
What is new supporting point:
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps maximum aggregate data rate and are ideal for outdoor and warehouse environments.
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C).
Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Dynamic Segmentation and policy enforcement firewalls (PEF) that automatically enforces consistent policies across all networks, keeping users and devices secure.
HPE Aruba Networking AP-567 (US) 802.11ax Dual 2x2 Radio Integrated Directional Antennas Outdoor AP
MPN:
R4W49A
Out of stock
Price excluding VAT:
Exc Vat £1,029.74
Price including VAT:
Inc Vat £1,235.69
Shipping calculated at checkout.
Details
Reasons To Buy
Entry-level Outdoor Wi-Fi 6
HPE Aruba Networking 560 Series Outdoor Access Points are ideal for environmentally challenging locations and can endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and maximum 165 mph wind speeds.Weatherproof and temperature hardened, this series can handle temperatures ranging from -40˚C to +65˚C, including full solar loading.
With maximum aggregate data rate of 1.49 Gbps (HE80/HE20), the series delivers the speed and reliability needed for most environments.
It supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
IoT Ready
HPE Aruba Networking 560 Series Outdoor Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.The access point supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
Target wake time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Simple Access With Enhanced Security
The HPE Aruba Networking 560 Series Outdoor Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
The AP simplifies policy enforcement by using the policy enforcement firewall to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, the access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
Description
The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 Series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor APs are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using Zero Touch Provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560 Series outdoor APs include a limited lifetime warranty.What is new supporting point:
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps maximum aggregate data rate and are ideal for outdoor and warehouse environments.
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C).
Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Dynamic Segmentation and policy enforcement firewalls (PEF) that automatically enforces consistent policies across all networks, keeping users and devices secure.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.15.4 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | None |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.15.4 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.15.4 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Security | |
| Security algorithms | WPA2, WPA3 |
| Ports & interfaces | |
| USB connector type | USB Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| Certification | None |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 7 dBi |
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | None |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 165 mm |
| Weight | 1.09 kg |
| Height | 110 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 0 - 3000 m |
