16-Port, L2, 32 Gbps, 23.81 Mpps, 16 VLAN, 4 kV, Cloud Managed, Non-PoE, MTBF 200000, Black, 440 mm x 165 mm x 44 mm
Gigabit access PoE switch fits needs in SMB network
- Simplified & Reliable
- Abundant Application Scenarios
- Fanless, Quiet and Green
Cost-Effective Smart Cloud Managed Switches
ES200 adopts a light-weighted Cloud management design, providing faster response to support richer features.
- IP Camera/NVR recognition
- Automatic Loop Prevention
- Mobile VLAN Configuration
- Intelligent PoE Adaptive
Unique Value for CCTV Network
- 250 meters transmission
- Flexible extend mode
- IPC Offline Alarm
- IPC Offline Alarm
Automatic Loop Prevention Ensures Service Continuity
Network stays connected when network loop happens.
Cloud,
Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Configure VLANs on Ruijie Cloud APP
- Monitor switch statistics at anytime anywhere
- Easy maintainance, save onsite time and cost

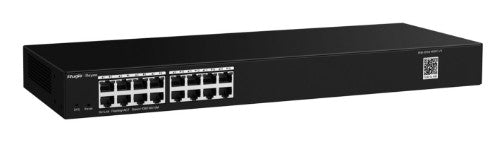

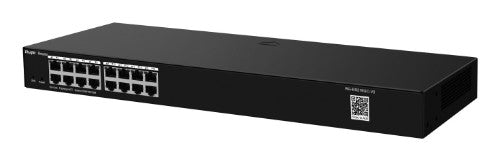

Ruijie Networks RG-ES200 Managed L2 Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting Black
£69.09
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
Description
16-Port Gigabit Managed Non-PoE SwitchGigabit access PoE switch fits needs in SMB network
- Simplified & Reliable
- Abundant Application Scenarios
- Fanless, Quiet and Green
Cost-Effective Smart Cloud Managed Switches
ES200 adopts a light-weighted Cloud management design, providing faster response to support richer features.
- IP Camera/NVR recognition
- Automatic Loop Prevention
- Mobile VLAN Configuration
- Intelligent PoE Adaptive
Unique Value for CCTV Network
- 250 meters transmission
- Flexible extend mode
- IPC Offline Alarm
- IPC Offline Alarm
Automatic Loop Prevention Ensures Service Continuity
Network stays connected when network loop happens.
Cloud,
Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Configure VLANs on Ruijie Cloud APP
- Monitor switch statistics at anytime anywhere
- Easy maintainance, save onsite time and cost
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 16 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 10000 |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 23.81 Mpps |
| Number of VLANs | 16 |
| Security | |
| Loop protection | Yes |
| MAC address entries | Static MAC address entries |
| DHCP features | DHCP client, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 200000 h |
| Fanless | Yes |
| Stackable | Yes |
| Power | |
| Power supply included | Yes |
| Surge protection voltage | 4 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 12 W |
| Input current | 0.6 A |
| Surge protection | Yes |
| Power source | AC |
| Power saving mode (EEE) | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Remote administration | Yes |
| Packaging content | Warranty card Rubber pad x 4 Power cord retainer |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | -500 - 5000 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 16 |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 2 kg |
| Packaging content | |
| Manual | Yes |
| Cables included | Power |
| Packaging content | Warranty card Rubber pad x 4 Power cord retainer |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Package weight | 2.7 kg |
| Manual | Yes |
| Cables included | Power |
| Technical details | |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Stackable | Yes |
| Mean time between failures (MTBF) | 200000 h |
| Housing material | Metal |
| Rack mounting | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | CE |
| Certificates | |
| Compliance certificates | CE |
| Indication | |
| LED indicators | Yes |
