50" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
iiyama 50" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
£1,611.51
Taxes included.
Shipping calculated at checkout.
Details
Reasons To Buy
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.Retail Instalations

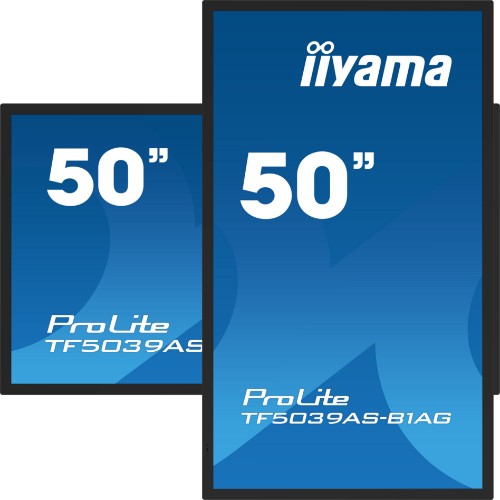

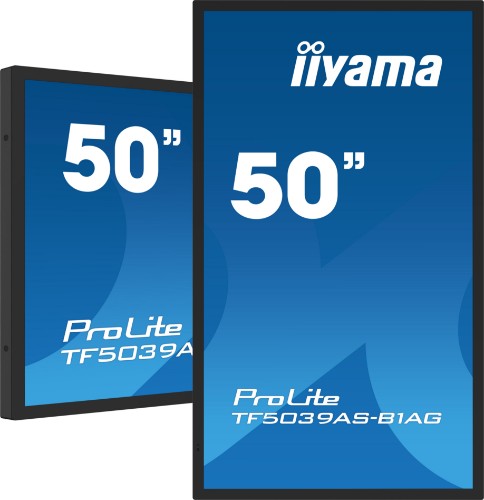

The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.Description

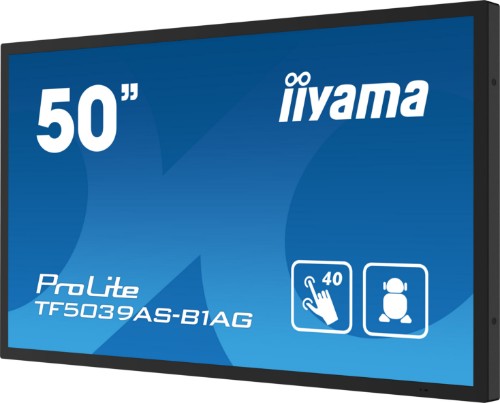

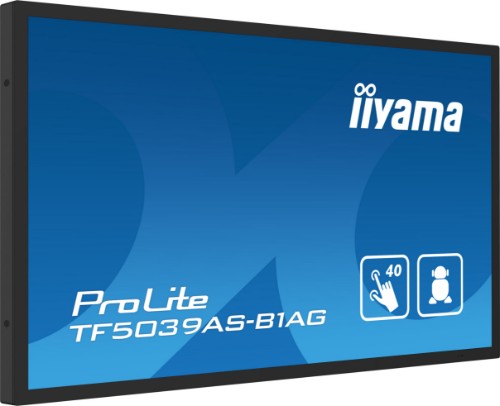

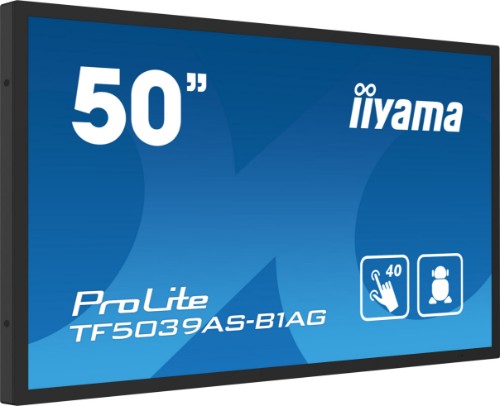

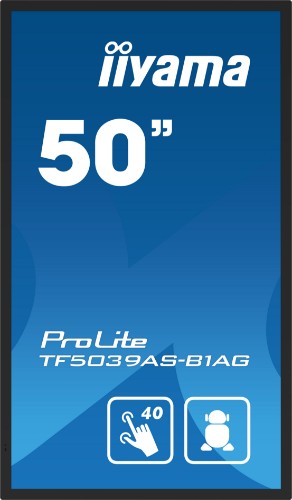

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5039AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5039AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| Display surface | Matt |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.285 x 0.285 mm |
| Horizontal scan range | 28 - 160 kHz |
| Viewable size, horizontal | 109.6 cm |
| Viewable size, vertical | 61.6 cm |
| Display resolution | 3840 x 2160 pixels |
| Response time | 9.5 ms |
| Display diagonal | 125.7 cm (49.5") |
| Contrast ratio (typical) | 5000:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 40 |
| Panel type | VA |
| Display diagonal (metric) | 125.7 cm |
| Touchscreen technology | Projected capacitive system |
| Haze rate | 25% |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Positional accuracy | 2.5 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Mean time between failures (MTBF) | 50000 h |
| Operating system installed | Android |
| Operating system version | 11 |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Design | |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 3 mm |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| DVI port | No |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| HDCP version | 2.2 |
| USB Touch port | Yes |
| RS-232C | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| USB connector type | USB Type-A, USB Type-B |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Front bezel colour | Black |
| Built-in processor | Yes |
| Power supply type | Internal |
| Active display area (W x H) | 1095.8 x 616.4 mm |
| Multi-touch | Yes |
| Weight (with stand) | 28.6 kg |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 40 |
| RS-232C | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 137 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 68 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (with stand) | 1149.4 mm |
| Depth (with stand) | 64 mm |
| Height (with stand) | 670 mm |
| Weight (with stand) | 28.6 kg |
| Package width | 1297 mm |
| Package depth | 1297 mm |
| Package height | 798 mm |
| Package weight | 35.9 kg |
| Packaging data | |
| Package width | 1297 mm |
| Package depth | 1297 mm |
| Package height | 798 mm |
| Package weight | 35.9 kg |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Remote control batteries included | Yes |
| Package volume | 35900 cm³ |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Batteries included | Yes |
| Remote control batteries included | Yes |
| Thin Client | |
| Operating system installed | Android |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Other features | |
| Built-in processor | Yes |
| Active display area (W x H) | 1095.8 x 616.4 mm |
| Multi-touch | Yes |
| USB ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Ethernet LAN (RJ-45) ports | 1 |
| Package volume | 35900 cm³ |
| International Protection (IP) code | IP65 |
| Positional accuracy | 2.5 mm |
| Remote control included | Yes |
| Quick start guide | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Ethernet LAN | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 40 |
| Front bezel colour | Black |
| Certificates | |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
