135'', 1920x1080, 6000:1, 64GB, VGA(640 x 480) to 1080p(1920 x 1080), 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz, HDMI 2.1 x 1, HDMI 2.0 x 3, HDMI 1.4 x 2, USB Type A
Pre-assembled Kit Ready for Instant Use
The 135” LED display comes pre-assembled with LED modules, cabinets, a system control box, and the motorized floor stand. It can be set up and is ready to use within just a few minutes, saving time and effort as well as lowering the technical barrier for installers.
Foldable Screen Design Enhancing Mobility
The foldable screen reduces the packaging size of the flight case by nearly 50% compared to the previous generation. Moving between spaces is greatly enhanced as the LDS series can now not only be transported via traditional freight elevators but also in large passenger elevators, minimizing cost and maximizing convenience.
Simple Delivery with Movable Flight Case
The movable flight case design not only provides secure protection of the advanced LED display, but also makes for swift and effortless delivery from one venue to another.
Enhanced Durability with Advanced GOB Surface Treatment
Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54* rating, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, shopping malls, and transportation hubs.
*Only the LED module surface is rated IP54.
Built-in Motorized Height Adjustment Stand
With a built-in motorized floor stand, you can easily adjust the height to a maximum range of 65 cm with a press of control buttons. To facilitate recurring use of the stand, you can conveniently save up to 3 different sets of height preference.
Easy to Move Around with 360° Silent Wheels
With the 360° silent wheels and push-button locking, freely move and position the impressive LED display anywhere you want - even after unpacking it from the flight case.
All-in-One Integration without Complicated Setup
Free yourself from a complicated setup of power supplies, control systems, stitching machines, etc. - all you need to do is turn the display on.
Engaging Large Screen & Bezel-Free Design
With a huge 135” screen, larger than nine 46-inch LCD displays combined, this frameless display seamlessly delivers content without stitching bezels for a more immersive visual experience. Impress the audience with engaging visual impact from everywhere.
True-to-Life Colors that Shine Bright
ViewSonic’s proprietary Cinema SuperColor+ Technology features a 120% Rec.709 wide color gamut that delivers lifelike colors. 600 nits high brightness with 8-level adjustments ensures incredible clarity anytime.
Powerful Sound by Harman Kardon Speakers
Equipped with studio-grade Harman Kardon speakers, soak in high-fidelity audio that is tuned to pinpoint clarity no matter where you’re standing. The dual 20W sets of professional passive radiators, woofers, and tweeters deliver impressive sound for a true audiovisual feast.
Captivation in Every Pixel
Blessed with lightning-fast 3,840 Hz refresh rate, 1.5mm fine pixel pitch, and greater contrast ratio, enjoy slick moves and superbly crisp visuals on every video, presentation, or web conference. The display also comes with 4K and HDR/HLG support to display even more engaging visuals.
Wireless Content Sharing Solution across Devices
The pre-installed ViewBoard® Cast enables content to be streamed from mobile devices onto the display over wireless networks, whether one-to-one or many-to-one.
Multitasking with Embedded System & Wi-Fi
With built-in OS and 2.4G/5GHz Wi-Fi, users can easily work in a familiar PC environment for app installation, web browsing, multimedia play, wireless device connection and many other.
Multiple Content in A Single Screen
Video conferences and online collaborations will now be more flexible and creative with the LED display’s intuitive split screens. The display can support Picture-by-Picture (up to 4 different inputs) or Picture-in-Picture (a screen within another screen) scenarios in real-time*.
*Both scenarios only work with HDMI source input
Reliable Operation 24/7
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week.
Full Front Maintenance
- Electric vacuum suction tool
Instead of moving an entire set of displays around for maintenance, the hot-swappable front LED modules allow users to change any defective piece. With the electric vacuum suction tool, any person can complete the exchange.

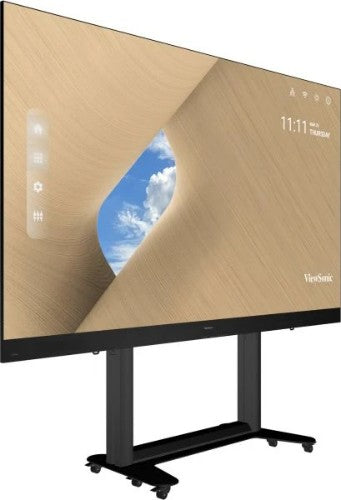

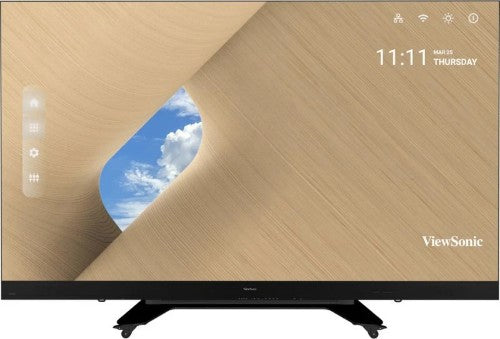

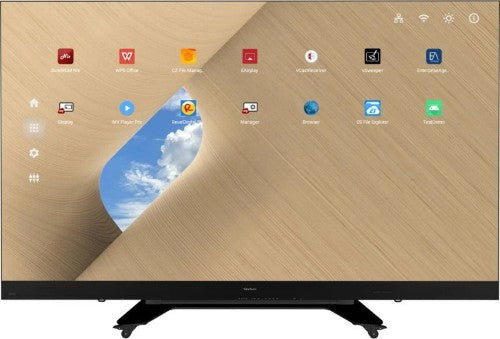

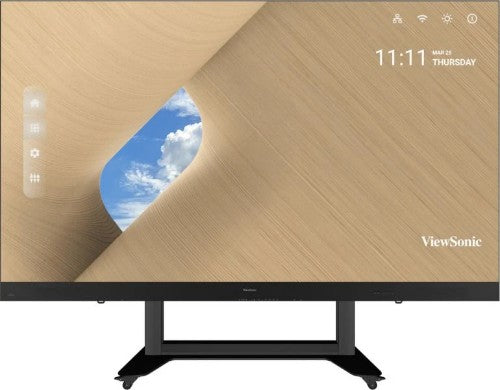

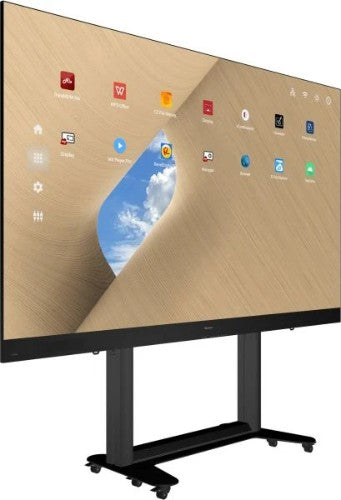

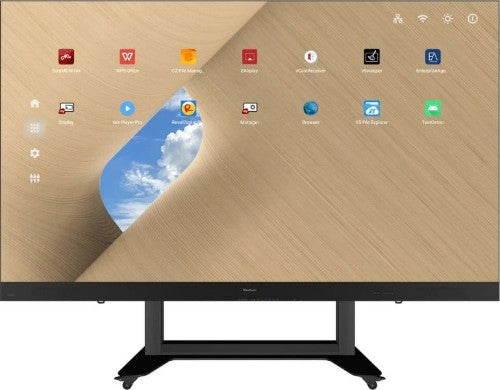

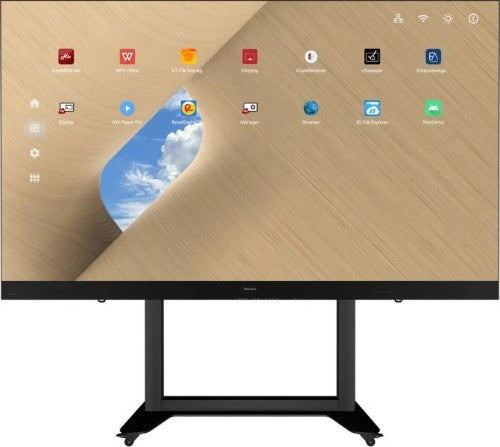

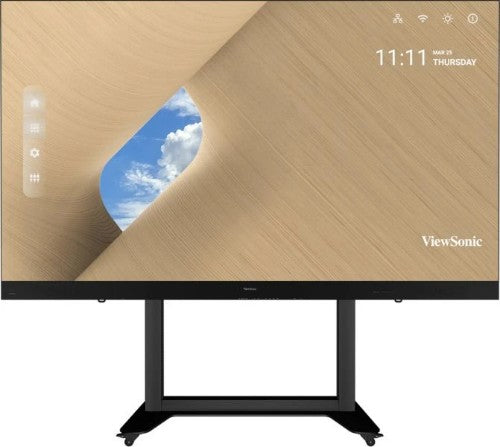

Viewsonic LDS135-153 Signage Display Digital signage flat panel 3.43 m (135") LED Wi-Fi 600 cd/m² Black Android 9
£50,267.15
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Pre-assembled kit ready for instant use
- Foldable screen with the movable flight case for easy delivery
- Shock-proof, dustproof, and moisture-proof through GOB surface treatment
- Built-in stand with motorized height adjustment
- Impressive audio from Harman Kardon speakers
- Seamless large display for rental at any event/exhibition
Description
The ViewSonic® LDS135-153 is a foldable 135” All-in-One LED display that boasts instant use, easy delivery, and convenient maintenance, making it an ideal rental-ready solution for events, exhibitions, or any other short-term use. The pre-assembled design and built-in motorized height adjustment stand enable effortless setup within just a few minutes. Delivery convenience is greatly enhanced with the foldable screen design, reducing the packaging size of the movable flight case by nearly 50% compared to the previous generation, thus minimizing shipping costs. Utilizing Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules provide enhanced protection against collisions, dust, and moisture during installation and use. With the seamless large screen and superior built-in Harman Kardon speakers, be ready to impress your audience everywhere from high-end boardrooms and receptions to galleries, auditoriums, and other large venues.Pre-assembled Kit Ready for Instant Use
The 135” LED display comes pre-assembled with LED modules, cabinets, a system control box, and the motorized floor stand. It can be set up and is ready to use within just a few minutes, saving time and effort as well as lowering the technical barrier for installers.
Foldable Screen Design Enhancing Mobility
The foldable screen reduces the packaging size of the flight case by nearly 50% compared to the previous generation. Moving between spaces is greatly enhanced as the LDS series can now not only be transported via traditional freight elevators but also in large passenger elevators, minimizing cost and maximizing convenience.
Simple Delivery with Movable Flight Case
The movable flight case design not only provides secure protection of the advanced LED display, but also makes for swift and effortless delivery from one venue to another.
Enhanced Durability with Advanced GOB Surface Treatment
Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54* rating, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, shopping malls, and transportation hubs.
*Only the LED module surface is rated IP54.
Built-in Motorized Height Adjustment Stand
With a built-in motorized floor stand, you can easily adjust the height to a maximum range of 65 cm with a press of control buttons. To facilitate recurring use of the stand, you can conveniently save up to 3 different sets of height preference.
Easy to Move Around with 360° Silent Wheels
With the 360° silent wheels and push-button locking, freely move and position the impressive LED display anywhere you want - even after unpacking it from the flight case.
All-in-One Integration without Complicated Setup
Free yourself from a complicated setup of power supplies, control systems, stitching machines, etc. - all you need to do is turn the display on.
Engaging Large Screen & Bezel-Free Design
With a huge 135” screen, larger than nine 46-inch LCD displays combined, this frameless display seamlessly delivers content without stitching bezels for a more immersive visual experience. Impress the audience with engaging visual impact from everywhere.
True-to-Life Colors that Shine Bright
ViewSonic’s proprietary Cinema SuperColor+ Technology features a 120% Rec.709 wide color gamut that delivers lifelike colors. 600 nits high brightness with 8-level adjustments ensures incredible clarity anytime.
Powerful Sound by Harman Kardon Speakers
Equipped with studio-grade Harman Kardon speakers, soak in high-fidelity audio that is tuned to pinpoint clarity no matter where you’re standing. The dual 20W sets of professional passive radiators, woofers, and tweeters deliver impressive sound for a true audiovisual feast.
Captivation in Every Pixel
Blessed with lightning-fast 3,840 Hz refresh rate, 1.5mm fine pixel pitch, and greater contrast ratio, enjoy slick moves and superbly crisp visuals on every video, presentation, or web conference. The display also comes with 4K and HDR/HLG support to display even more engaging visuals.
Wireless Content Sharing Solution across Devices
The pre-installed ViewBoard® Cast enables content to be streamed from mobile devices onto the display over wireless networks, whether one-to-one or many-to-one.
Multitasking with Embedded System & Wi-Fi
With built-in OS and 2.4G/5GHz Wi-Fi, users can easily work in a familiar PC environment for app installation, web browsing, multimedia play, wireless device connection and many other.
Multiple Content in A Single Screen
Video conferences and online collaborations will now be more flexible and creative with the LED display’s intuitive split screens. The display can support Picture-by-Picture (up to 4 different inputs) or Picture-in-Picture (a screen within another screen) scenarios in real-time*.
*Both scenarios only work with HDMI source input
Reliable Operation 24/7
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week.
Full Front Maintenance
- Electric vacuum suction tool
Instead of moving an entire set of displays around for maintenance, the hot-swappable front LED modules allow users to change any defective piece. With the electric vacuum suction tool, any person can complete the exchange.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Active display area (W x H) | 1687.5 x 3000 mm |
| Display technology | LED |
| Display diagonal | 3.43 m (135") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 600 cd/m² |
| Contrast ratio (typical) | 6000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Vertical scan range | 15 - 135 Hz |
| Horizontal scan range | 23 - 120 kHz |
| Rated lifetime | 100000 h |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB port | Yes |
| HDMI version | 1.4/2.0/2.1 |
| Number of speaker outputs | 1 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 8 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 6 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Screen shape | Flat |
| Performance | |
| Purpose | Corporate |
| International Protection (IP) code | IP54 |
| Multi-display supported | Yes |
| Wi-Fi Direct | Yes |
| Browsing | Yes |
| Web browser | Yes |
| Wi-Fi | Yes |
| Power | |
| Power consumption (max) | 2500 W |
| Power consumption (sleep) | 0.5 W |
| Power consumption (typical) | 1500 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Computer system | |
| Operating system installed | Android 9 |
| Internal storage capacity | 64 GB |
| Weight & dimensions | |
| Width (with stand) | 1800 mm |
| Height (with stand) | 2690 mm |
| Depth (with stand) | 760 mm |
| Weight (with stand) | 426 kg |
| Display width | 1800 mm |
| Display depth | 760 mm |
| Display height | 2022.8 mm |
| Display weight | 249 kg |
| Packaging data | |
| Package width | 1900 mm |
| Package depth | 800 mm |
| Package height | 2052 mm |
| Remote control included | Yes |
| Cables included | LAN (RJ-45), Power |
| Packaging content | |
| Remote control included | Yes |
| Cables included | LAN (RJ-45), Power |
| Thin Client | |
| Operating system installed | Android 9 |
| Internal storage capacity | 64 GB |
| Technical details | |
| USB connector type | USB Type-A |
| LED backlighting type | Direct-LED |
| Weight (with stand) | 426 kg |
| Other features | |
| USB connector type | USB Type-A |
| Wi-Fi | Yes |
| Width (with stand) | 1800 mm |
| Power consumption (max) | 2500 W |
| Height (with stand) | 2690 mm |
| Display technology | LED |
| Depth (with stand) | 760 mm |
| Weight (with stand) | 426 kg |
