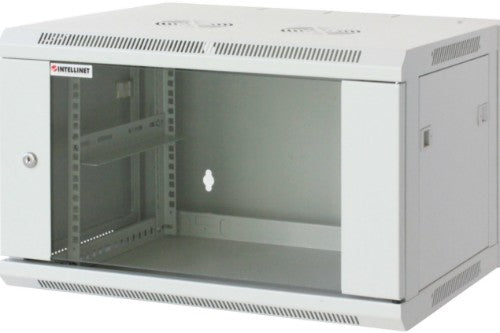

Intellinet 19" Network Cabinet - Wall Mount (Standard), 12U, 450mm Deep, Grey, Assembled, Max 60kg, Suitable also for use on desk or floor, Usable Depth 350mm, Metal & Glass Door, Back Panel, Removeable Sides, Parts for wall install (eg screws/rawl plugs)
1/3
Intellinet 19" Network Cabinet - Wall Mount (Standard), 12U, 450mm Deep, Grey, Assembled, Max 60kg, Suitable also for use on desk or floor, Usable Depth 350mm, Metal & Glass Door, Back Panel, Removeable Sides, Parts for wall install (eg screws/rawl plugs)
Intellinet

Intellinet 19" Network Cabinet - Wall Mount (Standard), 12U, 450mm Deep, Grey, Assembled, Max 60kg, Suitable also for use on desk or floor, Usable Depth 350mm, Metal & Glass Door, Back Panel, Removeable Sides, Parts for wall install (eg screws/rawl plugs)

MPN: 711920
Low stock: 1
Exc Vat £143.89
Inc Vat £172.67
Shipping calculated at checkout.
Details
19" Network Cabinet - Wall Mount (Standard), 12U, 450mm Deep, Grey, Assembled, Max 60kg, Suitable also for use on desk or floor, Usable Depth 350mm, Metal & Glass Door, Back Panel, Removeable Sides, Parts for wall install (eg screws/rawl plugs) not incl

Key Features

  • Ideal for 19" rackmount applications
  • Maximum static load of 60 kg
  • Tempered-glass door can be opened more than 180°
  • Cable entry via rear or top panel
  • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
  • Reversible Front door

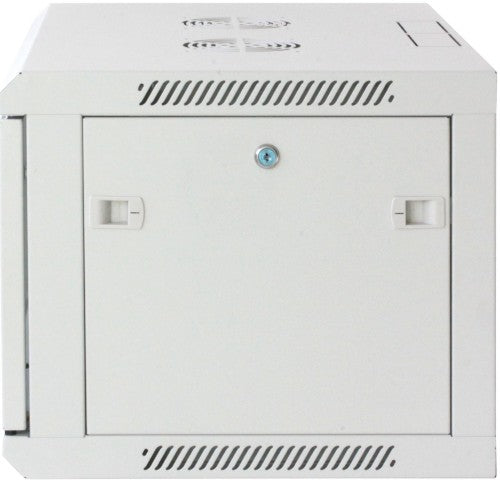

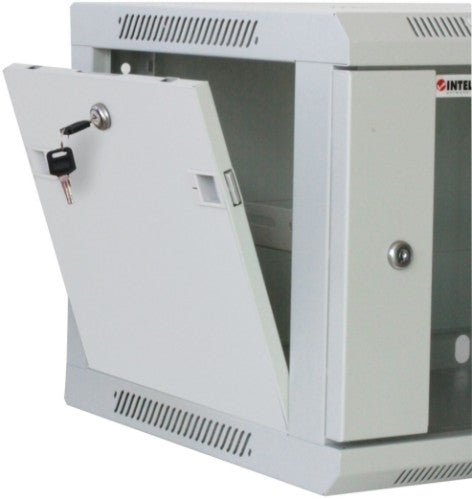

  • Lockable removable side panels
  • Ships assembled
  • Three-Year Warranty

Description

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & grey (RAL7035)._x000D_
We offer you a solution for every need. _x000D_
_x000D_
Various options include:_x000D_
Removable side panels (some lockable)._x000D_
Tempered/Toughened glass doors. _x000D_
Double Section, making cabling and component exchange simple.

Specifications

Features
Size (imperial) 48.3 cm (19")
Frame type Closed
Rack capacity 12U
Removable side panels Yes
Front door construction Glass
Type Wall mounted rack
Side panels included Yes
Maximum weight capacity 60 kg
Material SPCC
Product colour Grey
Certification ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Weight & dimensions
Width 600 mm
Depth 450 mm
Height 635 mm
Weight 22 kg
Size (imperial) 48.3 cm (19")
Maximum weight capacity 60 kg
Technical details
Type Wall mounted rack
Size (imperial) 48.3 cm (19")
Side panels included Yes
Rack capacity 12U
Colour
Product colour Grey
Certificates
Certification ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Packaging content
Side panels included Yes
Material
Material SPCC
