XD5-43d, 300dpi, USB, USB Host, Serial, ETH, 105.7mm
– Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
– Optional 300 dpi high resolution choice for fine print quality
– Dual-band WLAN (5 GHz and 2.4 GHz)
– Dual-mode Bluetooth V4.1 Classic and LE
– Extended memory space up to 256MB SDRAM, 256MB Flash
– A suite of SDKs for major operating systems
– Compact clamshell design with intuitive menu buttons and optional LCD Display
– Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
– Field-installable Peeler and Auto Cutter
– Compatible with label design software; BIXOLON’s Label Artist™ and Seagull’s BarTender®
– SNMP enabled WLAN functionality
– XPM™ & XCM™ – Web-based printer management software and connection app
The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.
Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.

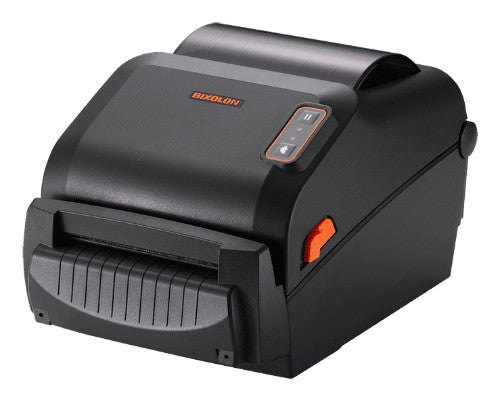

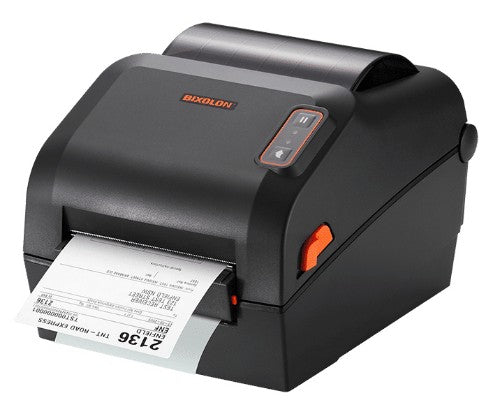

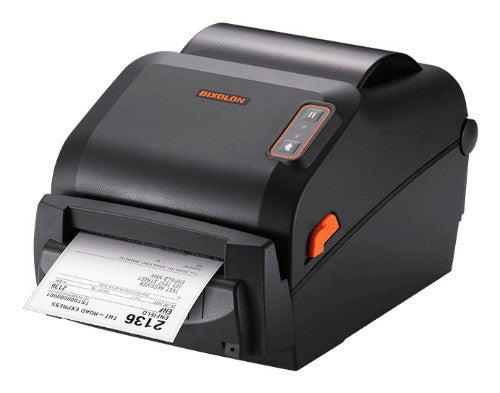

Bixolon XD5-43d label printer Direct thermal / Thermal transfer 300 x 300 DPI 102 mm/sec Wired & Wireless Wi-Fi
MPN:
XD5-43DEWK/BEG
Out of stock
Price excluding VAT:
Exc Vat £268.43
Price including VAT:
Inc Vat £322.12
Shipping calculated at checkout.
Details
Reasons To Buy
Reliable and Solid Performance
– Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing– Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
– Optional 300 dpi high resolution choice for fine print quality
– Dual-band WLAN (5 GHz and 2.4 GHz)
– Dual-mode Bluetooth V4.1 Classic and LE
– Extended memory space up to 256MB SDRAM, 256MB Flash
– A suite of SDKs for major operating systems
Next Level Usability
– An adjustable media guide and a holder– Compact clamshell design with intuitive menu buttons and optional LCD Display
– Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
– Field-installable Peeler and Auto Cutter
– Compatible with label design software; BIXOLON’s Label Artist™ and Seagull’s BarTender®
Secure and Efficient Management
– Twin funtion™ supported: Copy printer setting and data by USB– SNMP enabled WLAN functionality
– XPM™ & XCM™ – Web-based printer management software and connection app
Description
Robust and highly featuredThe XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.
Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Printing | |
| Print speed | 102 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Print technology | Direct thermal / Thermal transfer |
| Number of printable dots | 8 dot |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | No |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Media thickness | 0.06 - 0.2 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum label width | 11.8 cm |
| Autocutter | Yes |
| Ports & interfaces | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| RS-232 ports | 1 |
| Connectivity technology | Wired & Wireless |
| Wi-Fi | Yes |
| Ethernet LAN | No |
| USB port | Yes |
| Performance | |
| Mobile operating systems supported | Android, iOS |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Design | |
| Product colour | Black |
| Control type | Buttons |
| Built-in display | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, TLC39 |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Maximum label width | 11.8 cm |
| Sustainability certificates | ENERGY STAR |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 25 - 80% |
| Weight & dimensions | |
| Width | 194 mm |
| Depth | 248 mm |
| Height | 169 mm |
| Weight | 1.89 kg |
| Packaging content | |
| Cables included | USB |
