86", 3840 x 2160, 450cd/m², HDMI In x3, RJ45, USB
By using less and lighter materials this generation is considerably lighter than the previous version, making installation and maintenance much more convenient.
Remarkable 4K Display
With four times the resolution of Full HD you can achieve a truly immersive experience with an incredible image quality. The 4K resolution is now compatible with the integrated Android Media Player, our CMS software, HDMI channels and third party devices, giving you ultimate flexibility.
Integrated Android Media Player
There is an integrated 4K Android media player inside the screen allowing you to upgrade to a network version without needing any additional hardware. You can also install third party Android apps if required.
24/7 Commercial Use
These displays use a commercial grade LCD panel and LED backlight. They have the ability to be in constant use 24/7 for over 70,000 hours and have no external buttons or controls to avoid tampering.
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos on a USB stick, insert in the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.
Slim Bezel
The screens feature an extremely sleek and narrow bezel meaning that the enclosure to display area ratio is very low. The front is crafted from segmented aluminium to achieve ultimate precession while the polymer rear keeps the display super slim and lightweight.
Connect Devices
Should you need to use the screen as a monitor you can connect it to an external source, like a PC or media player, using the HDMI input.
Eco-Friendly Power Timer
The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen meaning that it is only in use when it needs to be; improving your environmental efficiency.
Built-In Speakers
Take your digital signage solution to the next level by adding an audio element using the two integrated slimline speakers.
oab-ports-rear

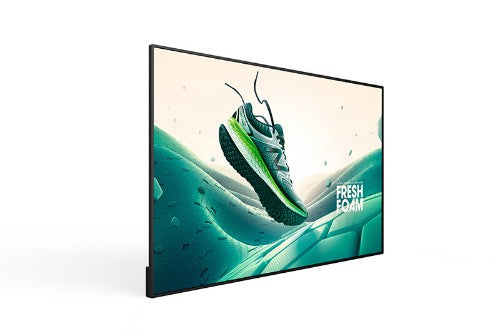

Allsee Technologies M86UHD4 Signage Display Digital signage flat panel 2.18 m (86") Wi-Fi 450 cd/m² 4K Ultra HD Black Built-in processor Android 11
Sale price
£1,929.17
Regular price
£2,229.00
Taxes included.
Shipping calculated at checkout.
Details
Description
Lightweight DesignBy using less and lighter materials this generation is considerably lighter than the previous version, making installation and maintenance much more convenient.
Remarkable 4K Display
With four times the resolution of Full HD you can achieve a truly immersive experience with an incredible image quality. The 4K resolution is now compatible with the integrated Android Media Player, our CMS software, HDMI channels and third party devices, giving you ultimate flexibility.
Integrated Android Media Player
There is an integrated 4K Android media player inside the screen allowing you to upgrade to a network version without needing any additional hardware. You can also install third party Android apps if required.
24/7 Commercial Use
These displays use a commercial grade LCD panel and LED backlight. They have the ability to be in constant use 24/7 for over 70,000 hours and have no external buttons or controls to avoid tampering.
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos on a USB stick, insert in the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.
Slim Bezel
The screens feature an extremely sleek and narrow bezel meaning that the enclosure to display area ratio is very low. The front is crafted from segmented aluminium to achieve ultimate precession while the polymer rear keeps the display super slim and lightweight.
Connect Devices
Should you need to use the screen as a monitor you can connect it to an external source, like a PC or media player, using the HDMI input.
Eco-Friendly Power Timer
The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen meaning that it is only in use when it needs to be; improving your environmental efficiency.
Built-In Speakers
Take your digital signage solution to the next level by adding an audio element using the two integrated slimline speakers.

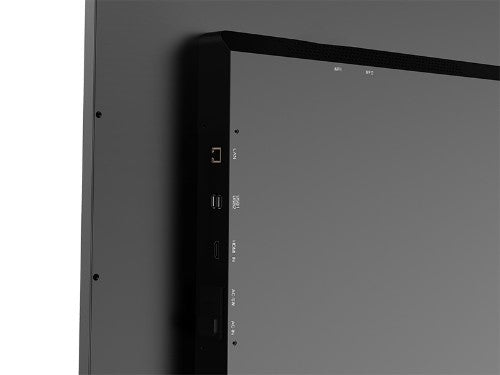

oab-ports-rear
Specifications
| Display | |
|---|---|
| Panel type | WVA |
| Display number of colours | 16.7 million colours |
| Touchscreen | No |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 4K Ultra HD |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Native aspect ratio | 16:9 |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| DVI port | No |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |
| Performance | |
| Purpose | Commercial |
| Wi-Fi | Yes |
| Power | |
| Power consumption (typical) | 335 W |
| Computer system | |
| Processor cores | 4 |
| Processor family | ARM Cortex |
| Processor model | A55 |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Video formats supported | H.264, MPEG1, MPEG2, MPEG4, WMV |
| Audio formats supported | ACC, MP3 |
| Image formats supported | BMP, JPEG, JPG, PNG |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Weight & dimensions | |
| Width | 1930.8 mm |
| Depth | 76.4 mm |
| Height | 1101.8 mm |
| Weight | 51 kg |
| Packaging data | |
| Package width | 2110 mm |
| Package depth | 225 mm |
| Package height | 1227 mm |
| Package weight | 60.8 kg |
| Remote control included | Yes |
| Packaging content | |
| Remote control included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| VESA mounting | Yes |
| Panel type | WVA |
| Thin Client | |
| Processor family | ARM Cortex |
| Processor model | A55 |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Video formats supported | H.264, MPEG1, MPEG2, MPEG4, WMV |
| Audio formats supported | ACC, MP3 |
| Image formats supported | BMP, JPEG, JPG, PNG |
| Other features | |
| Panel type | WVA |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
