Networking Instant On Access Point Bundle with PSU Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.
Multi-User, Multiple Input, Multiple Output (MU-MIMO), allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).
Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.
Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.
Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky PoE-Injector.
What is new supporting point:
Wi-Fi CERTIFIED 6™ wireless access point, with 2.5 GbE uplink port
2.5 GbE uplink port provides up to 2x more bandwidth than 1 GbE ports without the need for new Cat5/6(a) cables to be installed.
Four 1 GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
Up to 1.7 Gbps aggregate wireless throughput.

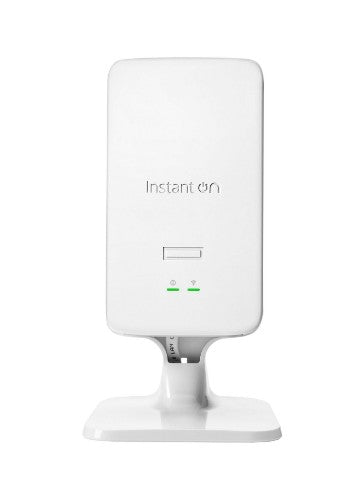

HPE Networking Instant On Access Point Bundle with PSU Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
MPN:
S0J34A
In stock: 12
Price excluding VAT:
Exc Vat £156.73
Price including VAT:
Inc Vat £188.08
Shipping calculated at checkout.
Details
Reasons To Buy
802.11ax Wi-Fi CERTIFIED 6™
HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.
Multi-User, Multiple Input, Multiple Output (MU-MIMO), allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).
2.5 Gigabit Ethernet Uplink Port
HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.
Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.
Four Downlink 1 Gigabit Ethernet Ports
Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky PoE-Injector.
Description
The HPE Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi CERTIFIED 6™ access point that provides reliable wired and wireless connectivity over a 2.5 GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE (802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7 Gbps. Easily manage the Instant On AP22D with the Instant On mobile app or portal to create guest and employee networks, govern access control lists, and set PoE schedules to customize power use. Make the most of your limited space in your small business by mounting the Instant On AP22D to a desk or wall with included mounting kits.What is new supporting point:
Wi-Fi CERTIFIED 6™ wireless access point, with 2.5 GbE uplink port
2.5 GbE uplink port provides up to 2x more bandwidth than 1 GbE ports without the need for new Cat5/6(a) cables to be installed.
Four 1 GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
Up to 1.7 Gbps aggregate wireless throughput.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Spread spectrum method | OFDMA |
| Web-based management | Yes |
| Networking standards | IEEE 802.11ax |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Certification | None |
| Maximum data transfer rate | 1200 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Network | |
| Spread spectrum method | OFDMA |
| Networking standards | IEEE 802.11ax |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | OWE, WPA2, WPA3 |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | OFDMA |
| Networking standards | IEEE 802.11ax |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Trusted Platform Module (TPM) | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 51 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Design | |
| Placement | Desk, Wall |
| Product colour | White |
| Reset button | Yes |
| Certification | None |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.4 dBi |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Certificates | |
| Certification | None |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 47 mm |
| Weight | 360 g |
| Height | 150 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
