WiFi 7 (802.11a/b/g/n/ac/ax/be), 6 GHz, 140 m2 (1,500 ft2), 2.5 GbE RJ45, PoE+, 300+ clients, 206 x 46 mm, 680 g, polycarbonate, metal

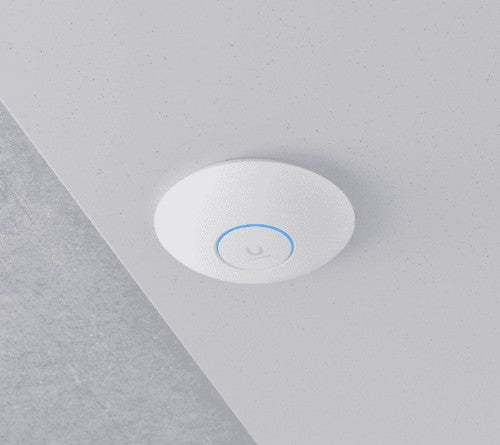

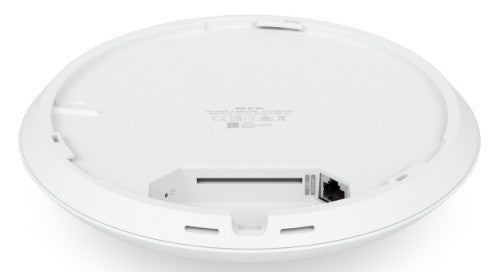

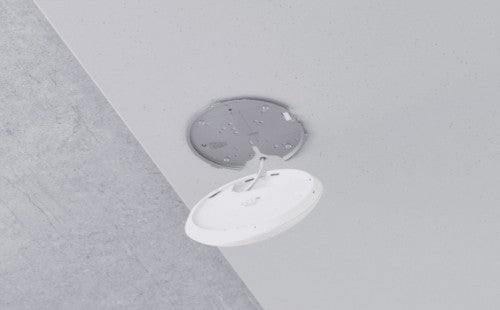

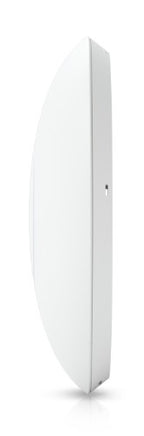

Ubiquiti U7 Pro 5800 Mbit/s White Power over Ethernet (PoE)
MPN:
U7-Pro
In stock: 555
Price excluding VAT:
Exc Vat £134.75
Price including VAT:
Inc Vat £161.70
Shipping calculated at checkout.
Details
Key Features
- WiFi 7 tri-radio with 6 GHz
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
Description
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Frequency band | 2.4 - 6 GHz |
| Number of users | 300 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Wireless LAN features | |
| Frequency band | 2.4 - 6 GHz |
| Network | |
| Number of users | 300 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4 - 6 GHz |
| Number of users | 300 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.3at |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Throughput data rate | 5765 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Coverage area | 140 m² |
| Maximum Tx power (2.4 GHz) | 22 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Maximum Tx power (6 GHz) | 23 dBmW |
| Security | |
| Security algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 21 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 44 - 57 V |
| Design | |
| Housing material | Metal, Polycarbonate (PC) |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Reset button | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | Yes |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 206 mm |
| Depth | 206 mm |
| Weight | 680 g |
| Height | 46 mm |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
