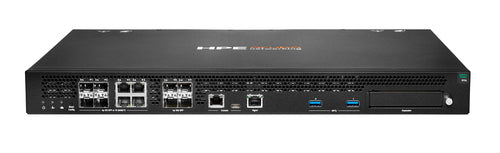

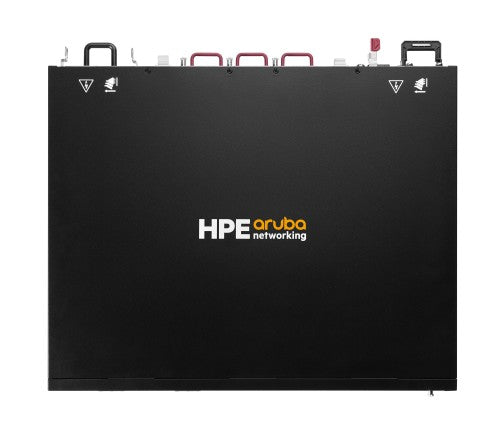

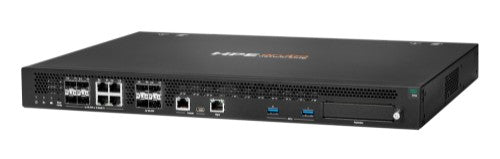

Aruba Networking 9114 4x SFP+ 4x Combo 1x Expansion Slot Hybrid Gateway
Designed to scale up to 4K devices (APs) and 10K clients with seamless roaming for latency-sensitive applications. Compact 9106 model suitable for smaller deployments with support for up to 2K devices and 8K clients.
Supports redundancy, clustering, and live upgrades. Multiple gateways can be clustered for enhanced resiliency.
High-speed wired connectivity with 10 GbE fiber ports for up to 20 Gbps throughput.
Versatile and scalable platform can act as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.
Offers enhanced security with dynamic segmentation to nearly eliminate the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
Wizard-based UI-driven workflows in HPE Aruba Networking Central NetConductor automate network design and policy creation, further streamlining network configuration and security operations from the cloud.
Deep Packet Inspection provides greater application visibility and control. As a part of the policy enforcement firewall, the HPE Aruba Networking 9100 Series Hybrid Gateways consistently evaluates and improves performance and usage policies for over 3,800 applications.
Web Content Classification (WCC) classifies websites by content category and rates them by reputation and risk score, enabling IT to block malicious sites to help prevent phishing, DDoS, botnets, and other common attacks.
The latest 9106 models are also supported by HPE Aruba Networking Wireless Operating System (AOS-8) enabling them to act as mobility controllers providing WLAN services and offering the flexibility to upgrade to AOS-10.
Intelligent automation, AI insights, and unified infrastructure management, delivered by AOS-10 and HPE Aruba Networking Central, simplify and power IT operations.
Zero Touch Provisioning simplifies deployment at branch sites that have few or no local IT resources.
What is new supporting point:
Versatile scalable platform for cloud-based wireless gateway, SD-Branch device, or VPN concentrator use cases. The latest 9106 models also support AOS-8 as a mobility controllers for WLAN services.
HPE Aruba Networking Central provides IT operational efficiency with unified cloud-based management and control of wired, wireless, and SD-WAN.
Scales to meet medium branch, large branch and small campus needs supporting up to 4K APs and 10K clients.
High-speed wired connectivity with 10 GbE fiber ports for up to 20 Gbps throughput.
Dynamic segmentation for automated role-based policy enforcement across users, devices, and IoT.
Always-on high availability with live upgrades, clustering, and redundancy.
HPE Aruba Networking 9114 4x SFP+ 4x Combo 1x Expansion Slot Hybrid Gateway
MPN:
R9M45A
Out of stock
Price excluding VAT:
Exc Vat £10,189.32
Price including VAT:
Inc Vat £12,227.18
Shipping calculated at checkout.
Details
Reasons To Buy
Enterprise-class Performance
HPE Aruba Networking 9100 Series Hybrid Gateways are a cloud-optimized edge appliance designed to securely and seamlessly extend enterprise services to medium branch, large branch and small campus networks.Designed to scale up to 4K devices (APs) and 10K clients with seamless roaming for latency-sensitive applications. Compact 9106 model suitable for smaller deployments with support for up to 2K devices and 8K clients.
Supports redundancy, clustering, and live upgrades. Multiple gateways can be clustered for enhanced resiliency.
High-speed wired connectivity with 10 GbE fiber ports for up to 20 Gbps throughput.
Versatile and scalable platform can act as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.
Unified Security For Branch and Campus
HPE Aruba Networking 9100 Series Hybrid Gateways deliver a simple way to centrally automate the deployment, management, and operation of your wired, wireless, WAN, and security infrastructure under a single, software-defined framework for policy and segmentation.Offers enhanced security with dynamic segmentation to nearly eliminate the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
Wizard-based UI-driven workflows in HPE Aruba Networking Central NetConductor automate network design and policy creation, further streamlining network configuration and security operations from the cloud.
Deep Packet Inspection provides greater application visibility and control. As a part of the policy enforcement firewall, the HPE Aruba Networking 9100 Series Hybrid Gateways consistently evaluates and improves performance and usage policies for over 3,800 applications.
Web Content Classification (WCC) classifies websites by content category and rates them by reputation and risk score, enabling IT to block malicious sites to help prevent phishing, DDoS, botnets, and other common attacks.
Network Operations and Management
The HPE Aruba Networking 9100 Series Hybrid Gateways is supported by HPE Aruba Networking Wireless Operating System (AOS-10) which is the distributed network operating system working with HPE Aruba Networking Central that acts as the control layer for HPE Aruba Networking access points and gateways.The latest 9106 models are also supported by HPE Aruba Networking Wireless Operating System (AOS-8) enabling them to act as mobility controllers providing WLAN services and offering the flexibility to upgrade to AOS-10.
Intelligent automation, AI insights, and unified infrastructure management, delivered by AOS-10 and HPE Aruba Networking Central, simplify and power IT operations.
Zero Touch Provisioning simplifies deployment at branch sites that have few or no local IT resources.
Description
The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to securely and seamlessly extend enterprise services to medium branch, large branch and small campus networks. Using cloud architecture scale and efficiency together with intelligent edge device security and performance capabilities, the 9100 Hybrid Gateway delivers scalable, high-performance Wi-Fi with enhanced security to the edge. This purpose-built high-performance edge appliance delivers seamless roaming, 24/7 reliability, and always-on connectivity - even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, delivered by AOS-10 and HPE Aruba Networking Central, simplify and power IT operations. This versatile gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and automated and unified role-based policy enforcement for users and IoT across LAN, WAN, and SD-WAN.What is new supporting point:
Versatile scalable platform for cloud-based wireless gateway, SD-Branch device, or VPN concentrator use cases. The latest 9106 models also support AOS-8 as a mobility controllers for WLAN services.
HPE Aruba Networking Central provides IT operational efficiency with unified cloud-based management and control of wired, wireless, and SD-WAN.
Scales to meet medium branch, large branch and small campus needs supporting up to 4K APs and 10K clients.
High-speed wired connectivity with 10 GbE fiber ports for up to 20 Gbps throughput.
Dynamic segmentation for automated role-based policy enforcement across users, devices, and IoT.
Always-on high availability with live upgrades, clustering, and redundancy.
Specifications
| Design | |
|---|---|
| LED indicators | Power, Status |
| Certification | None |
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Product colour | Black |
| Features | |
| Mean time between failures (MTBF) | 280165 h |
| Protocols | |
| DHCP client | Yes |
| Network | |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Firewall throughput | 20000 Mbit/s |
| 3DES/AES throughput | 20 Gbit/s |
| Security | |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Console port | RJ-45 |
| SFP+ ports quantity | 4 |
| Combo SFP ports quantity | 4 |
| Power | |
| Output voltage | 12 V |
| Power consumption (typical) | 185 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Heat dissipation | 631 BTU/h |
| Power consumption (max) | 185 W |
| Weight & dimensions | |
| Weight | 6.2 kg |
| Width | 442 mm |
| Height | 43.7 mm |
| Depth | 351 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| Mean time between failures (MTBF) | 280165 h |
| Indication | |
| LED indicators | Power, Status |
| Certificates | |
| Certification | None |
| Performance | |
| Certification | None |
| Mounting type | Rack mounting |
| Rack capacity | 1U |
| Product colour | Black |
