Pole Mount, 15kg Capacity, Aluminium, Black

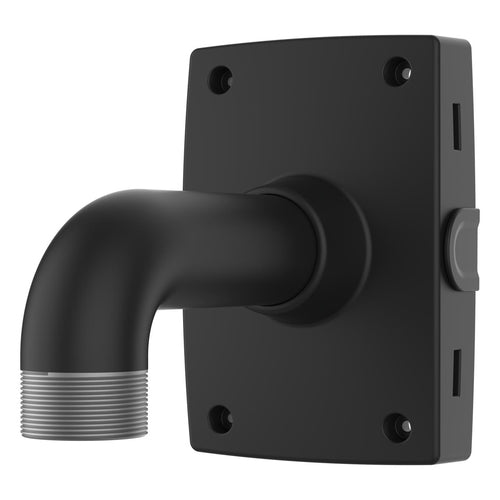

The outdoor-ready AXIS TP3301-E Pole Mount Black has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS TP3301-E is intended for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.
Axis TP3301-E Mount
MPN:
02961-001
Out of stock
Price excluding VAT:
Exc Vat £124.41
Price including VAT:
Inc Vat £149.29
Shipping calculated at checkout.
Details
Key Features
- Robust and safe pole installation
- Suitable for indoor and outdoor use
- Impact-resistant to prevent vandalism
- Cable gasket to prevent insect infestation
- Support for 1.5" NPS threaded Axis pendant kits
Description
AXIS TP3301-E Pole Mount BlackThe outdoor-ready AXIS TP3301-E Pole Mount Black has a 1.5" NPS threading for a wide range of Axis pendant kits for Axis fixed dome and panoramic cameras. Thanks to its impact-resistant and outdoor-proven material, the mount can be used in both indoor and outdoor environments. AXIS TP3301-E is intended for poles with a diameter between 65–165 mm (2 1/2–6 1/2 in), and also for beams. It features 3/4" conduit side entries for protected cable runs, and a closed back with cable gasket for protection against insect infestation. The pole mount is tightened with two marine-grade (SS316L) stainless steel straps with TX30 screw interface for ease and secure installation.
Specifications
| Features | |
|---|---|
| Housing material | Aluminium |
| Brand compatibility | Axis |
| Compatibility | AXIS P32/P37/Q35/Q36 (requires camera-specific pendant kit) |
| Type | Mount |
| Placement supported | Universal |
| Product colour | Black |
| Certification | IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, IEC 62262 IK10 |
| IK code | IK10 |
| Maximum weight capacity | 15 kg |
| Ergonomics | |
| Maximum weight capacity | 15 kg |
| Technical details | |
| Compatibility | AXIS P32/P37/Q35/Q36 (requires camera-specific pendant kit) |
| Type | Mount |
| Placement supported | Universal |
| Maximum weight capacity | 15 kg |
| Doesn't contain | PVC |
| Weight & dimensions | |
| Width | 138.3 mm |
| Weight | 1.2 kg |
| Height | 194.8 mm |
| Depth | 244.1 mm |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Quick installation guide | Yes |
| Certificates | |
| Certification | IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, NEMA 250 Type 4X, IEC 62262 IK10 |
