Series 7 - 28 Port Industrial Top-Of-Rack Layer 3 Managed Network Switch
The SIL 716E8C4M offers 16 x Gigabit Ethernet Downlink Ports, 8 x RJ45+SFP Combo Ports and 4 x 10Gb SFP Uplink Ports.
The fanless design of the SIL 716E8C4M utilises natural cooling and ensures proficient heat dissipation. This allows more power consumption to be used elsewhere, increasing processing power.
In areas where effective use of space and interconnectivity are vital, for example large scale enterprise networks, these Switches are ideal. They have an extended temperature range which enables them to continue their high-performance in unconditioned outdoor cabinets and industrial environments. Encased in a high strength metal enclosure, these Switches are designed to withstand the elements.
Reliable and robust, the SilverNet 716E8C4M is fully compliant with the IEEE802.3, u, z, ab, x, az, ah standards, as well as IEEE802.1X + 802.1Q.
The fibre optics ports feature a modular SFP slot suitable for any kind of MSA-compliant pluggable 1.25Gbps SFP transceiver or 10Gbps SFP+ transceiver.
SilverNet SIL 716E8C4M network switch Managed L3 Gigabit Ethernet (10/100/1000)
Sale price
£915.02
Regular price
£1,001.00
Taxes included.
Shipping calculated at checkout.
Details

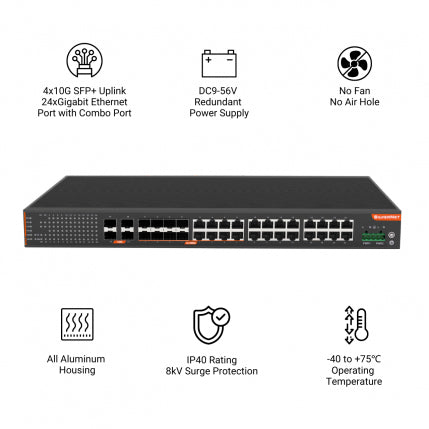

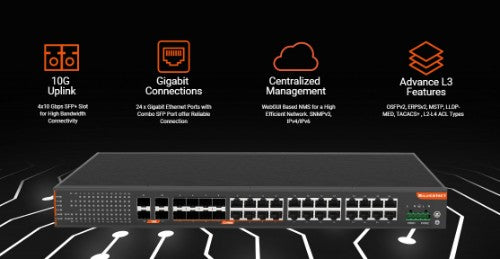

Key Features
- 16 x GE, 8 x RJ45 / SFP Combo, 4 x 10G SFP+ Ports
- Up to 12Mbit Cache, supporting up to 4k Video Traffic
- 128Gbps Bandwidth
- 10Kbytes Maximum Packet Length
- 16K MAC Address Table
- Store and Forward (Full/Half Duplex Mode)
- <7μs Response Time
- Supports IEEE802.3, u, z, ab, x, az, ah
- Supports IEEE802.1X + IEEE802.1Q

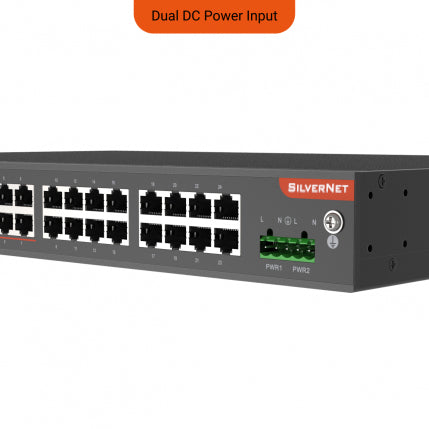

- Dual Redundant Power Supply
- Wide range power design (15~56VDC)
- Operating temperature (-40°C ~+75°C)
- Overcurrent Protection
- Reverse Polarity Protection
- Ethernet ESD protection
- IP40 Protection
- High Strength Metal Enclosure
Description

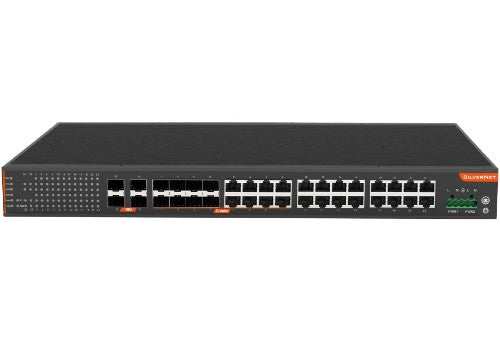

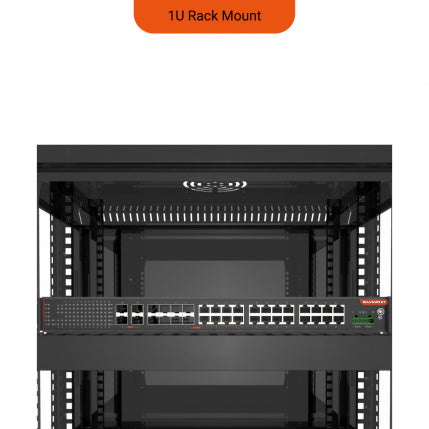

The SIL 716E8C4M is a rack mountable Layer 3 Network Switch designed for industrial use. The sleek Top-of-Rack design enables efficient spacing in rack cabinets, making it ideal for installation in enterprise, ITS and utility market networks.The SIL 716E8C4M offers 16 x Gigabit Ethernet Downlink Ports, 8 x RJ45+SFP Combo Ports and 4 x 10Gb SFP Uplink Ports.
The fanless design of the SIL 716E8C4M utilises natural cooling and ensures proficient heat dissipation. This allows more power consumption to be used elsewhere, increasing processing power.
In areas where effective use of space and interconnectivity are vital, for example large scale enterprise networks, these Switches are ideal. They have an extended temperature range which enables them to continue their high-performance in unconditioned outdoor cabinets and industrial environments. Encased in a high strength metal enclosure, these Switches are designed to withstand the elements.
Reliable and robust, the SilverNet 716E8C4M is fully compliant with the IEEE802.3, u, z, ab, x, az, ah standards, as well as IEEE802.1X + 802.1Q.
The fibre optics ports feature a modular SFP slot suitable for any kind of MSA-compliant pluggable 1.25Gbps SFP transceiver or 10Gbps SFP+ transceiver.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Ethernet-Like, MIB-II, MIB-, Bridge MIB, Bridge MIB Extensions, RMON MIB(1,2,3&9 Groups), RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 8 |
| Installed SFP+ modules quantity | 4 |
| Combo SFP ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Fast Ethernet (copper) ports quantity | 24 |
| Power connector | Terminal block (2-pin) |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP entries | 4096 |
| Active link detection | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Stacked VLAN, Tagged VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Stacked VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 256 |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Latency (10 Gbps) | 7 µs |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Performance | |
| Packet buffer memory | 12 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 250000 h |
| Power | |
| Power connector | Terminal block (2-pin) |
| Power consumption (max) | 24 W |
| Power supply included | Yes |
| Power protection features | Over current, Reverse polarity |
| AC input voltage | 110 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power source | AC/DC |
| Technical details | |
| Stackable | Yes |
| Mean time between failures (MTBF) | 250000 h |
| Housing material | Aluminium |
| Rack mounting | Yes |
| Warranty period | 5 year(s) |
| Power over Ethernet (PoE) | |
| Power protection features | Over current, Reverse polarity |
| Power over Ethernet (PoE) | No |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMPv3, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| IGMP entries | 4096 |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
| Certificates | |
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| Certification | IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508 |
| Memory | |
| Packet buffer memory | 12 MB |
| Design | |
| International Protection (IP) code | IP40 |
| Stackable | Yes |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| Housing material | Aluminium |
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| Certification | IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508 |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 75 BTU/h |
| Weight & dimensions | |
| Width | 400 mm |
| Depth | 300 mm |
| Height | 45 mm |
| Weight | 2.8 kg |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Package width | 393 mm |
| Package depth | 495 mm |
| Package height | 80 mm |
| Package weight | 3.3 kg |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Packaging content | |
| Rack mount kit | Yes |
