SilverNet STREAM 60GHz Range
The SIL STREAM 605 is capable of links up to 500M and alignment is simplified with its 40° x 40° beamwidth antenna. The STREAM series of radios all come with 256+ AES and 6 or 12 (half size) transmission channels.
Try out our STREAM 60GHz link calculator here https://silvernet.com/60ghz-wireless-link-calculator/

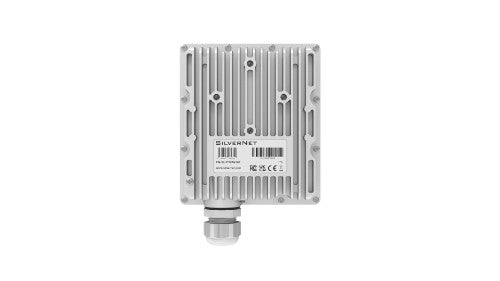

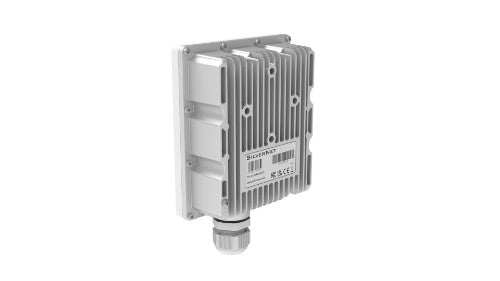

SilverNet SIL STREAM 605-PCP bridge/repeater Network bridge 2500 Mbit/s White
MPN:
SIL STREAM 605-PCP
Out of stock
Price excluding VAT:
Exc Vat £968.28
Price including VAT:
Inc Vat £1,161.94
Shipping calculated at checkout.
Details
Key Features
- Up to 2.5Gbps Full Duplex Aggregate Throughput
- Multipoint connectivity for up to 25 clients
- 6 Channels or 12 Channels supported in the 57-71 GHz Band
- Up to 16QAM Modulation
- Over-The-Air (OTA) Security, AES+ 256 Encryption
- High Gain Antennae with Beamforming Technology
- IP67 Rated
- High power 40 EIRP
- Speed test
- Supports QoS with 4 Service Classes
- Supports Layer 2 Forwarding including:
- VLAN Transparent Transmission
- Management VLAN
- 2 Year Warranty as Standard
Description
The SIL STREAM 605-PCP operates in the mmWave / 60GHz band. With throughput speeds of up to 2.5Gbps Full Duplex, the STREAM 605-PCP is ideal for gigabit connections across last-mile access routes in congested areas.The SIL STREAM 605 is capable of links up to 500M and alignment is simplified with its 40° x 40° beamwidth antenna. The STREAM series of radios all come with 256+ AES and 6 or 12 (half size) transmission channels.
Try out our STREAM 60GHz link calculator here https://silvernet.com/60ghz-wireless-link-calculator/
Specifications
| Data transmission | |
|---|---|
| Supported data transfer rates | 10, 100, 1000, 2500 |
| Maximum data transfer rate | 2500 Mbit/s |
| Maximum transfer distance | 500 m |
| Antenna | |
| Antennas quantity | 64 |
| Antenna gain level (max) | 22 dBi |
| Antenna design | Internal |
| Antenna type | 1x1 |
| Wireless LAN features | |
| Outdoor range | 500m |
| Frequency band | 57-71 GHz |
| Modulation | 16-QAM, BPSK, QPSK |
| Channels quantity | 12 channels |
| Antenna gain level (max) | 22 dBi |
| Output power (dBm) | 40 EIRP |
| Antenna type | 1x1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Static IP | Yes |
| Dynamic IP | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Multi-Gigabit Ethernet |
| Outdoor range | 500m |
| Frequency band | 57-71 GHz |
| Supported data transfer rates | 10, 100, 1000, 2500 |
| Channels quantity | 12 channels |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security | |
| Security algorithms | 256-bit AES |
| Security features | Over-The-Air Security |
| Management features | |
| Management protocols | VLAN, MIB, SNMP V2 / V3 |
| Web-based management | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| LED indicators | LAN, Power, Signal strength, WLAN |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| International Protection (IP) code | IP67 |
| Power LED | Yes |
| LED indicators | LAN, Power, Signal strength, WLAN |
| Country of origin | United Kingdom |
| Automatic Transmit Power Control (ATPC) | Yes |
| Flow control support | Yes |
| Mounting type | Wall/Pole |
| Power | |
| Power consumption (max) | 41 W |
| Power source type | DC, PoE |
| DC input voltage | 24-52 V |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 17 W |
| DC output current | 0.5 A |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Certificates | |
| Certification | FCC IC CE VCCI TELEC RCM |
| Technical details | |
| Product colour | White |
| Quantity per pack | 2 pc(s) |
| Country of origin | United Kingdom |
| Weight & dimensions | |
| Weight | 600 g |
| Width | 110 mm |
| Depth | 44 mm |
| Height | 125 mm |
| Indication | |
| Power LED | Yes |
| Packaging content | |
| Quick installation guide | Yes |

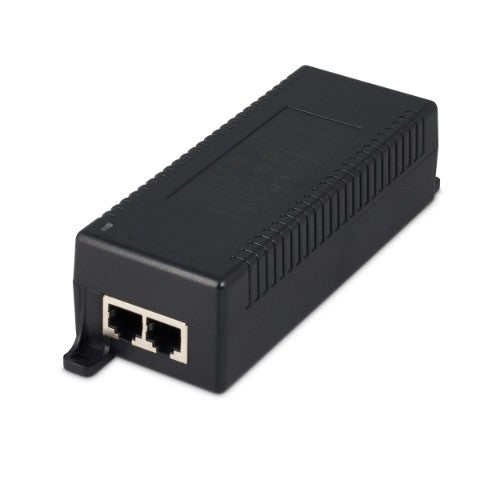

| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Antenna included | Yes |
| Power supply included | Yes |
| Packaging content | Complete radio link. Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
| Packaging data | |
| Package width | 285 mm |
| Package weight | 3.29 kg |
| Package type | Box |
| Package height | 115 mm |
| Package depth | 320 mm |
| Quantity per pack | 2 pc(s) |
| Logistics data | |
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85176200 |
