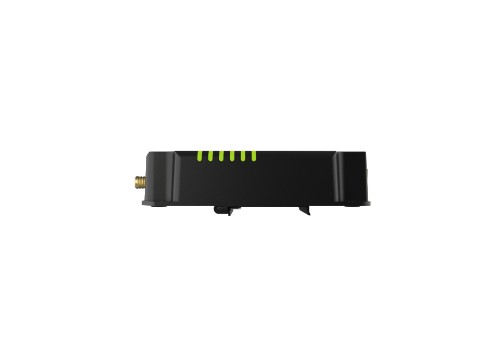

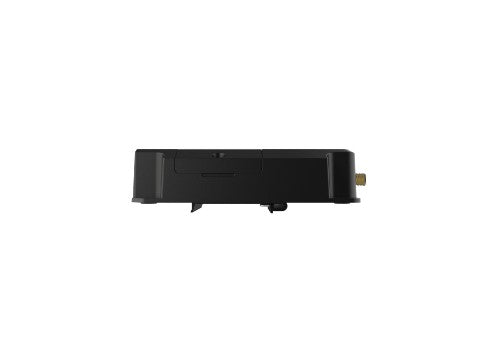

iSite Range - iSite Connect 4G Industrial Mobile Router with 2x LAN and Wi-Fi
UUtilizing WCDMA, 4G LTE carrier support, and drop-in connectivity, the iSITE range stands out for operators aiming to maximize uptime and reliability.

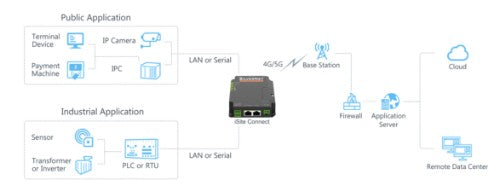

The iSITE range is highly versatile in various IoT/M2M applications, thanks to its straightforward deployment and comprehensive remote device management through SilverNet's 'iSITE Hub'.
Moreover, by integrating with SilverNet's 'iSITE VPN', secure tunnels to private networks can be established, enhancing security and privacy.
The iSITE Connect uses an embedded cellular modem and contains dual SIM slots for network failover. Thus, the iSITE Connect provides 3G/4G cellular network connectivity with up to 150 Mbps download capacity and up to 50 Mbps uplink.
With 2 fast Ethernet ports and Wi Fi 802.11b/g/n supported, these capabilities can deliver users uninterrupted internet access.
SilverNet 4G INDUSTRIAL MOBILE ROUTER
MPN:
SIL ISITE CONNECT
Out of stock
Price excluding VAT:
Exc Vat £220.28
Price including VAT:
Inc Vat £264.34
Shipping calculated at checkout.
Details
Key Features
- NXP Industrial Grade Processor
- Global 4G LTE CAT4/3G Network with Dual SIM Cards for backup between multiple Carrier Networks
- Flexible modular design providing Ethernet and Cellular
- Rugged Enclosure with IP30 protection
- Supports 802.11 b/g/n
- Supports SNMP, Modbus Bridging, RIP, OSPF
- 2 x 10/100 BaseT ethernet LAN or 1 x WAN 1 x LAN ports
- Automatic Failover between Ethernet and Cellular
- Supports VPN Tunnels IPsec, iSITE VPN, GRE, L2TP, PPTP, DMVPN
- Supports AAA (Radius, TACACS+, LDAP)
- Embeds hardware watchdog to automatically recover from various failures, ensuring highest level of reliability
- 2 Year Warranty as standard
Description
The SIL iSITE Connect is a cost effective, industrial mobile router with embedded intelligent features that are designed for diverse M2M/IoT applications.UUtilizing WCDMA, 4G LTE carrier support, and drop-in connectivity, the iSITE range stands out for operators aiming to maximize uptime and reliability.
The iSITE range is highly versatile in various IoT/M2M applications, thanks to its straightforward deployment and comprehensive remote device management through SilverNet's 'iSITE Hub'.
Moreover, by integrating with SilverNet's 'iSITE VPN', secure tunnels to private networks can be established, enhancing security and privacy.
The iSITE Connect uses an embedded cellular modem and contains dual SIM slots for network failover. Thus, the iSITE Connect provides 3G/4G cellular network connectivity with up to 150 Mbps download capacity and up to 50 Mbps uplink.
With 2 fast Ethernet ports and Wi Fi 802.11b/g/n supported, these capabilities can deliver users uninterrupted internet access.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| DSL features | |
| DSL WAN | No |
| Mobile network | |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| Mobile network generation | 4G |
| Dual SIM support | Yes |
| SIM card type | MicroSIM |
| Network | |
| Routing protocols | OSPF, RIP-1, RIP-2, VRRP |
| Management protocols | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3 |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Full duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Automatic channel selection | Yes |
| Cabling technology | 10/100Base-T(X) |
| VPN Passthrough | Yes |
| Static route | Yes |
| Policy-based routing | Yes |
| Multicast support | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Auto-sensing | Yes |
| Protocols | |
| DMZ support | Yes |
| Supported network protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH |
| Routing protocols | OSPF, RIP-1, RIP-2, VRRP |
| Management protocols | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3 |
| DHCP server | Yes |
| DHCP client | Yes |
| Performance | |
| Processor frequency | 528 MHz |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Automatic channel selection | Yes |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Processor architecture | ARM Cortex A7 |
| Weight & dimensions | |
| Package width | 115 mm |
| Package weight | 580 g |
| Package height | 65 mm |
| Package depth | 215 mm |
| Width | 110 mm |
| Weight | 220 g |
| Height | 26 mm |
| Depth | 90 mm |
| Certificates | |
| Electromagnetic compatibility | EN 55032, EN 55035 |
| Certification | CE, FCC, RCM RoHS IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 3 IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 IEC 61000-4-11 Level 3 EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 EN62368-1 |
| Packaging content | |
| Package type | Box |
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Antenna included | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| Dual SIM support | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 150 Mbit/s |
| Wi-Fi band | Single-band (2.4 GHz) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ports & interfaces | |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 2 |
| Terminal block port | Yes |
| RS-485 ports | 1 |
| RS-232 ports | 1 |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Bandwidth control | Yes |
| Security | |
| System event log | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
| Filtering | Yes |
| Access Control List (ACL) | Yes |
| DDoS protection | Yes |
| Design | |
| Product type | Portable router |
| Wall mountable | Yes |
| LED indicators | Activity, LAN, Power, System, VPN, WLAN |
| Housing material | Aluminium |
| Country of origin | United Kingdom |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Other features | |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 3 |
| Antenna connector type | RJ-SMA |
| Features | |
| Processor frequency | 528 MHz |
| Firmware upgradeable | Yes |
| Electromagnetic compatibility | EN 55032, EN 55035 |
| Certification | CE, FCC, RCM RoHS IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 3 IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 IEC 61000-4-11 Level 3 EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328 EN62368-1 |
| Built-in processor | Yes |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Processor architecture | ARM Cortex A7 |
| Watch Dog function | Yes |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 1.9 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Isolation | 1.5 kV |
| Packaging data | |
| Package width | 115 mm |
| Package weight | 580 g |
| Package type | Box |
| Package height | 65 mm |
| Package depth | 215 mm |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
| Antenna included | Yes |
| Technical details | |
| Warranty period | 2 year(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Warranty period | 2 year(s) |
