Series 7 - 24 Port Industrial Layer 2 Managed Network Switch
This Industrial Gigabit PoE+ Managed Switch offers extensive connectivity options, with 16 x 10/100/1000Base-T ports, 8 x 1000Base-FX SFP slots, and 4 x 10G SFP+ slots.
The dual input design ensures dependable, uninterrupted operation. Additionally, the Switch is fanless, which minimizes noise and reduces the risk of dust and debris accumulation.
This Switch has low power consumption, ensuring cost-effective, efficient operation. The Industrial Gigabit PoE+ Managed Switch also boasts high reliability, making it an ideal choice for mission-critical applications.
The 73816MP-10G is a dependable solution for extending Ethernet over distance via fibre daisy chain. This will simplify installation and reduce costs, as it eliminates the need for separate power supplies for IP video cameras and wireless access points.
This rugged Switch has an extended temperature range for use in harsh environments, and is suitable for security, surveillance, manufacturing, transportation, oil and gas, power utilities, mining, and other outdoor applications.
Fully compliant to IEEE802.3af/at for Power-over-Ethernet over twisted pair cables, it also features a modular SFP slot for pluggable 1.25Gbps SFP transceivers.

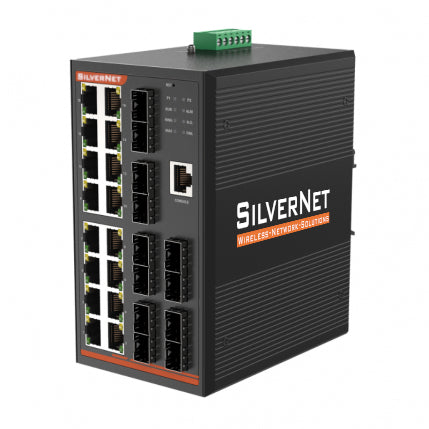

SilverNet SIL 73816MP-10G network switch Managed L2 Gigabit Ethernet (10/100/1000)
Sale price
£928.33
Regular price
£1,015.00
Taxes included.
Shipping calculated at checkout.
Details

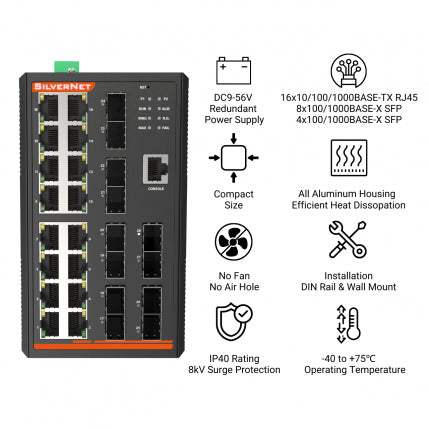

Key Features
- 16 x 10/100/1000Base T
- 8 x 1000Base FX SFP slots + 4 x 10G SFP+
- 56Gbps Backplane bandwidth
- IEEE803.af/at compliant
- RJ45 supports auto MDI/MDI X function
- Auto negotiation speed, half/full duplex
- Store and forward
- Max packet size: 10K bytes
- MAC address size: 16K

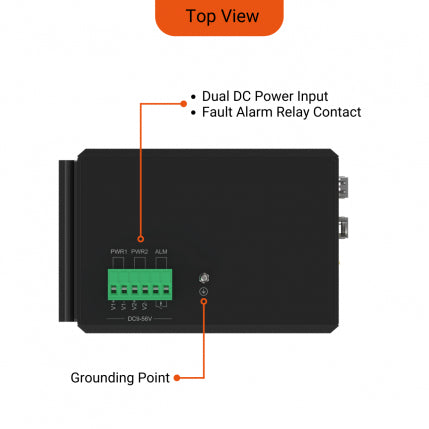

- Wide range power design (9~56VDC)
- Operating temperature (40 C ~+75 C)
- Resettable fuse to protect against overcurrent
- Reverse Polarity Protection

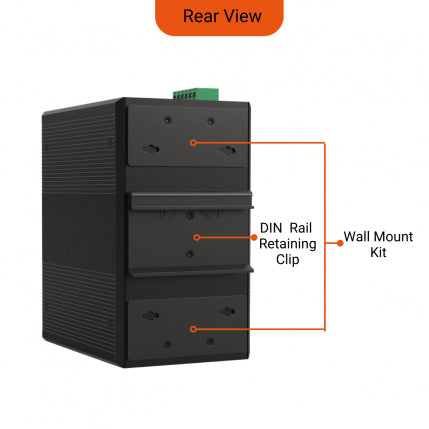

- DIN Rail or wall mountable
- EFT protection for power line
- Ethernet ESD protection
- IP40 Protection
- Rugged
- 5 Year Warranty
Description
The SIL 73816MP-10G is a robust fully managed layer 2 Switch, designed to operate efficiently in demanding environments.This Industrial Gigabit PoE+ Managed Switch offers extensive connectivity options, with 16 x 10/100/1000Base-T ports, 8 x 1000Base-FX SFP slots, and 4 x 10G SFP+ slots.
The dual input design ensures dependable, uninterrupted operation. Additionally, the Switch is fanless, which minimizes noise and reduces the risk of dust and debris accumulation.
This Switch has low power consumption, ensuring cost-effective, efficient operation. The Industrial Gigabit PoE+ Managed Switch also boasts high reliability, making it an ideal choice for mission-critical applications.
The 73816MP-10G is a dependable solution for extending Ethernet over distance via fibre daisy chain. This will simplify installation and reduce costs, as it eliminates the need for separate power supplies for IP video cameras and wireless access points.
This rugged Switch has an extended temperature range for use in harsh environments, and is suitable for security, surveillance, manufacturing, transportation, oil and gas, power utilities, mining, and other outdoor applications.
Fully compliant to IEEE802.3af/at for Power-over-Ethernet over twisted pair cables, it also features a modular SFP slot for pluggable 1.25Gbps SFP transceivers.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| SFP module slots quantity | 8 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Fast Ethernet (copper) ports quantity | 16 |
| Console port | RJ-45 |
| Power connector | Terminal block (6-pin) |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP entries | 4096 |
| MAC address auto-learning supported | Yes |
| Active link detection | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Stacked VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Multicast VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Stacked VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Data transmission | |
| Number of VLANs | 256 |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Latency (10 Gbps) | 7 µs |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Performance | |
| Packet buffer memory | 12 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 250000 h |
| Power | |
| Power connector | Terminal block (6-pin) |
| Power consumption (max) | 16 W |
| Power supply included | Yes |
| Power protection features | Over current, Reverse polarity |
| AC input voltage | 110 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power source | AC/DC |
| Technical details | |
| Stackable | Yes |
| Mean time between failures (MTBF) | 250000 h |
| Housing material | Aluminium |
| Rack mounting | No |
| Power over Ethernet (PoE) | |
| Power protection features | Over current, Reverse polarity |
| Power over Ethernet (PoE) | No |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| IGMP entries | 4096 |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPFv2, RIP-1, RIP-2, VRRP |
| Certificates | |
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| Certification | IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508 |
| Memory | |
| Packet buffer memory | 12 MB |
| Design | |
| International Protection (IP) code | IP40 |
| Stackable | Yes |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| Housing material | Aluminium |
| Electromagnetic compatibility | FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4 |
| Certification | IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508 |
| Rack mounting | No |
| Indication | |
| LED indicators | Alarm, Link, Power, Ring, Speed |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 34 BTU/h |
| Weight & dimensions | |
| Width | 138 mm |
| Depth | 108 mm |
| Height | 49 mm |
| Weight | 680 g |
| Packaging data | |
| Package type | Box |
| Package width | 205 mm |
| Package depth | 230 mm |
| Package height | 110 mm |
| Package weight | 1.78 kg |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
