10.4", 800 x 600, SVGA, LED, 160° / 130°, 500:1, 35 ms, 290.2 x 237.64 x 35.1 mm, 2050 g
frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.

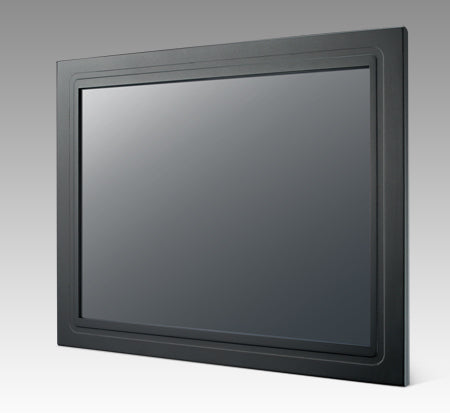

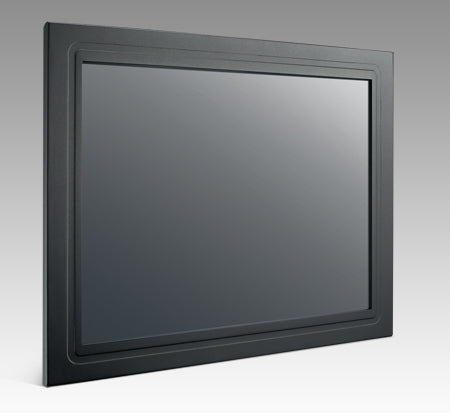

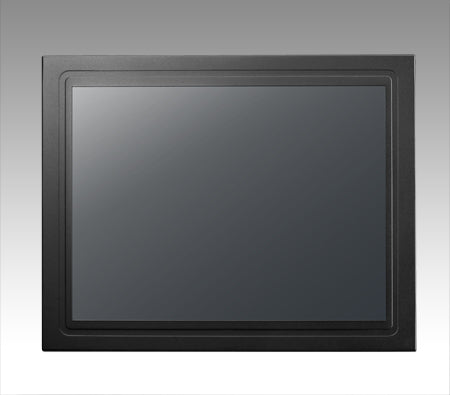

Advantech IDS-3210ER-23SVA1E Signage Display 26.4 cm (10.4") LCD 230 cd/m² SVGA Black Touchscreen
£325.75
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 10.4" SVGA LCD panel with LED backlight for 20% power saving and environmental protection
- 20° C - +60° C wide range operating temperature
- 5-wire resistive touchscreen solution or tempered smudge resistant protected glass
- Combo touch interface: RS-232 and USB

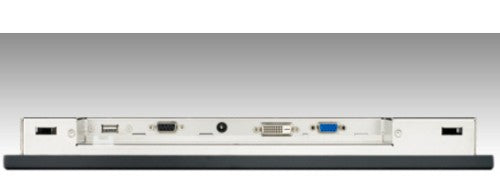

- Dual signal interface with VGA & DVI
- Standard integrated frame

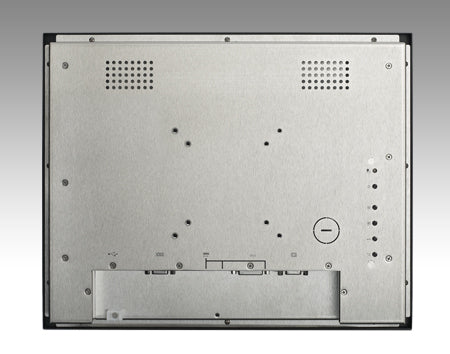

- Versatile mounting methods for rear mounting and VESA mounting
- Anti-Reflective treatment (optional)
- Ultra high brightness solution of 1200 cd/m 2 for outdoor application (optional)
Description
The Advantech IDS-3210 Embedded Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integratedframe design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.2 million colours |
| Number of simultaneous touchpoints | 5 |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 26.4 cm (10.4") |
| Display resolution | 800 x 600 pixels |
| Display brightness | 230 cd/m² |
| HD type | SVGA |
| Response time | 35 ms |
| Contrast ratio (typical) | 500:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 130° |
| Panel life | 30000 h |
| Transparency | 82% |
| Touchscreen technology | Resistive |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi | No |
| DC-in jack | Yes |
| Ethernet LAN | No |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| RS-232 interface | Yes |
| USB ports quantity | 1 |
| Design | |
| Placement supported | Indoor |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Mounting type | Wall |
| Performance | |
| Purpose | Commercial |
| On Screen Display (OSD) | Yes |
| Wi-Fi | No |
| Panel life | 30000 h |
| Power | |
| Power consumption (typical) | 36 W |
| AC input voltage | 100 - 240 V |
| Input voltage | +12 V |
| Weight & dimensions | |
| Width | 290.2 mm |
| Depth | 35.1 mm |
| Height | 237.6 mm |
| Weight | 2.05 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Number of simultaneous touchpoints | 5 |
| Other features | |
| Number of simultaneous touchpoints | 5 |
| Wi-Fi | No |
| Display technology | LCD |
| DC-in jack | Yes |
| Input voltage | +12 V |
