10.1", 1920x1200 WUXGA, HFD LCD, 800cd/m2, Qualcomm Snapdragon 660 octa-core 2.2 GHz, 4GB LPDDR4x, 64GB eMMC, MicroSD up to 2TB, 1x 13MP Rear, 1x 8MP Front, 2400mAh, 26Wh, BT5.0, WiFi IEEE 802.11, NFC, IP65, 1x USB 3.0 Type-C, 1x 3.5mm Combo Audio, 1 x AIM extension 14-pin pogo, 1 x 2-wire UART, 180x280x18.3mm, 980g
Qualcomm SDA660/SDM660 with Android 10
10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass and multi-touch PCAP control supports glove mode
Integrated barcode scanner supports data collection
Fast roaming and dual band WLAN , BT 5.0, NFC, 3G/ 4G LTE connectivity for seamless communications
Optional extension include 1D/2D barcode scanner, LAN+COM module, UHF RFID module

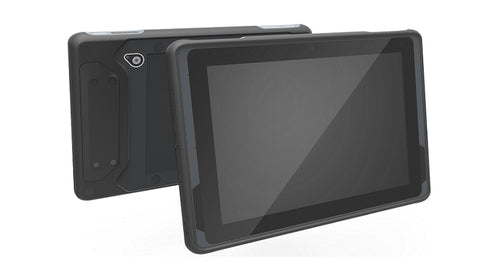

Advantech AIM-78S 64 GB 25.6 cm (10.1") Qualcomm Snapdragon 4 GB Wi-Fi 5 (802.11ac) Android 12 Black
Advantech AIM-78S 64 GB 25.6 cm (10.1") Qualcomm Snapdragon 4 GB Wi-Fi 5 (802.11ac) Android 12 Black
£1,116.94
Taxes included.
Shipping calculated at checkout.
Details
Description
10.1" Industrial-Grade Tablet with Qualcomm® Snapdragon™ 660 Processor, Android 10Qualcomm SDA660/SDM660 with Android 10
10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass and multi-touch PCAP control supports glove mode
Integrated barcode scanner supports data collection
Fast roaming and dual band WLAN , BT 5.0, NFC, 3G/ 4G LTE connectivity for seamless communications
Optional extension include 1D/2D barcode scanner, LAN+COM module, UHF RFID module
Specifications
| Display | |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Display technology | LCD |
| Touchscreen type | Capacitive |
| Display brightness | 800 cd/m² |
| Display diagonal | 25.6 cm (10.1") |
| Panel type | IPS |
| Processor | |
| Processor manufacturer | Qualcomm |
| Processor frequency | 2.2 GHz |
| Processor model | 660 |
| Processor family | Qualcomm Snapdragon |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Storage | |
| Storage media | eMMC |
| Internal storage capacity | 64 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Audio | |
| Number of built-in speakers | 2 |
| Camera | |
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 13 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 8 MP |
| Network | |
| Mobile network connection | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Docking connector type | Pogo Pin |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| 3.5 mm connector | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Gyroscope | Yes |
| Electronic compass | Yes |
| Design | |
| International Protection (IP) code | IP65 |
| Device type | Mobile tablet |
| Form factor | Slate |
| Product colour | Black |
| Performance | |
| Operating system installed | Android 12 |
| Ambient light sensor | Yes |
| Gyroscope | Yes |
| Electronic compass | Yes |
| Technical details | |
| Device type | Mobile tablet |
| Form factor | Slate |
| Product colour | Black |
| Processor manufacturer | Qualcomm |
| Sustainability compliance | Yes |
| Software | |
| Platform | Android |
| Operating system installed | Android 12 |
| Battery | |
| Battery capacity | 2400 mAh |
| Battery capacity | 26 Wh |
| Battery included | Yes |
| Removable battery | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 18.3 mm |
| Height | 280 mm |
| Weight | 980 g |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Processor manufacturer | Qualcomm |
| Processor family | Qualcomm Snapdragon |
