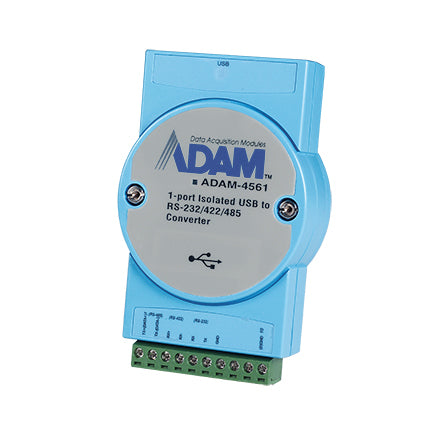

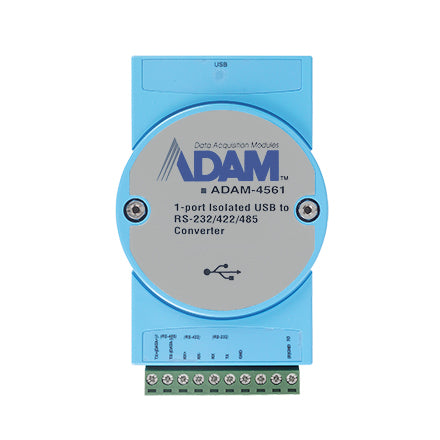

1-port Isolated USB to RS-232/422/485 Converter, plug-in terminal
Advantech ADAM-4561-CE serial converter/repeater/isolator USB 2.0 RS-232/422/485 Blue
£83.34
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Full compliance with USB V1.1 specifications
- RS-232/422/485 port supported
- Transmission speed up to 115.2 kbps
- Isolation protection 3000 VDC provided
- Automatic RS-485 data flow control
- No external power supply necessary; the hub derives its power from the USB port
- Plug & Play installation
- No additional IRQs or I/O ports required
- Hot swap function supported
Description
ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. Thismakes the ADAM-4561/4562 especially suitable for modems, printers, POS systems and industrial control devices.Specifications
| Technical details | |
|---|---|
| Connector 2 | Terminal block |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8 |
| Windows operating systems supported | Yes |
| Serial ports quantity | 1 |
| RS-232 signals | GND, Rx, Tx |
| Output interface | RS-232/422/485 |
| Mounting | DIN-rail |
| Isolation | 3 kV |
| Host interface | USB 2.0 |
| Product colour | Blue |
| Baud rate | 115.2 Kbit/s |
| Parity bit | Even, Odd |
| Power | |
| Input voltage | 5 V |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Manual | Yes |
| Certificates | |
| Certification | FCC, CE UL, cUL RoHS |
| Indication | |
| LED indicators | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Material | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
