20 kVA/20 kW, rack or tower mount, 3U, configurable for 3 phase or 1 phase input/output, Black

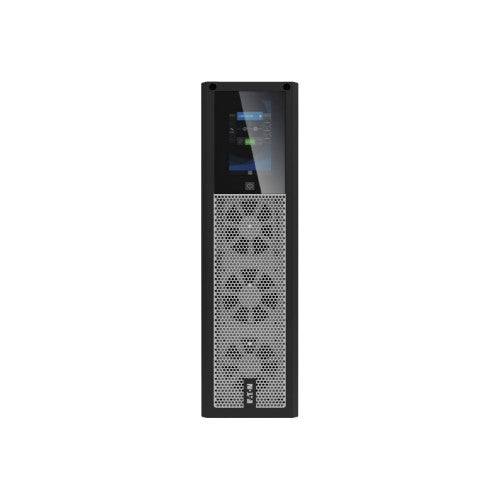

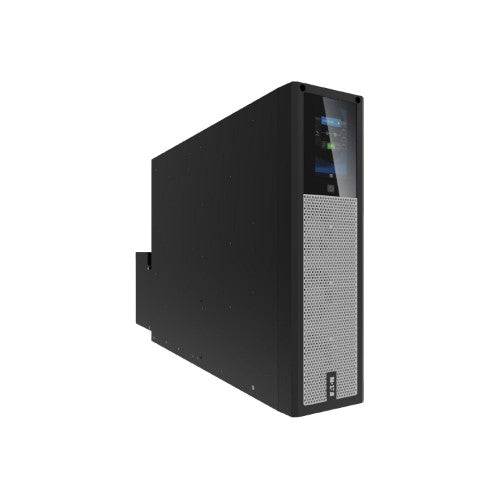

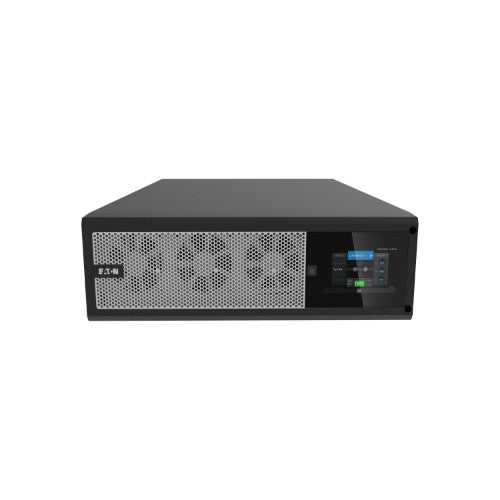

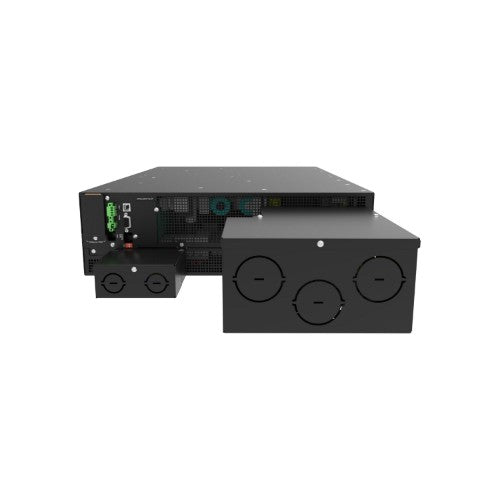

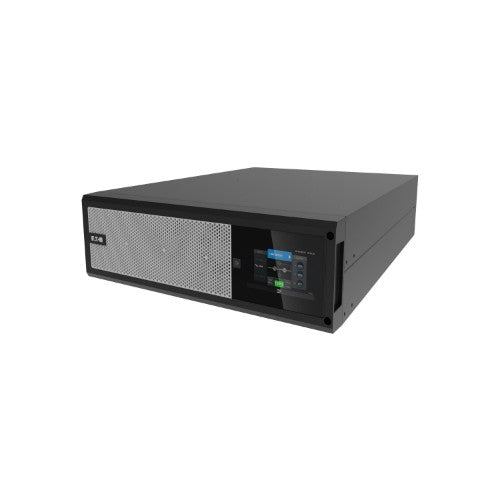

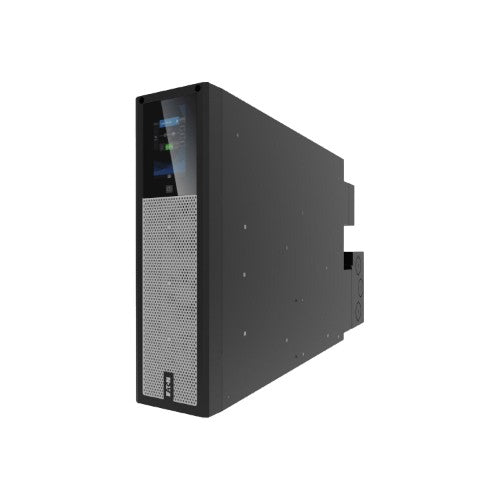

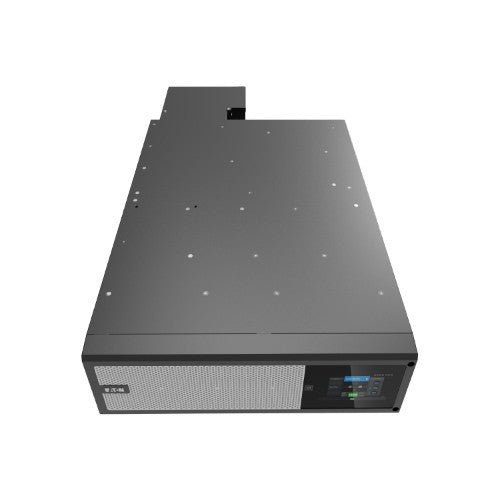

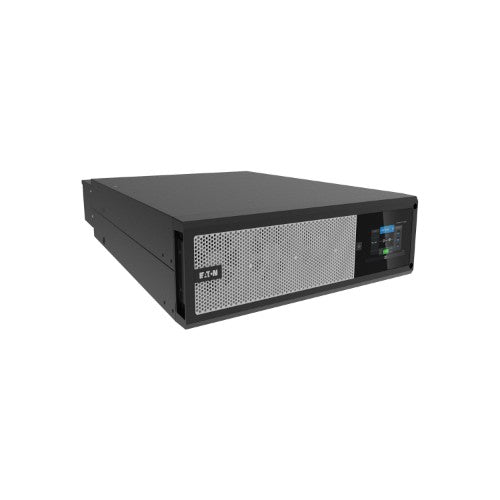

Eaton 93PX uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Sale price
£5,509.16
Regular price
£8,272.64
Taxes included.
Shipping calculated at checkout.
Details
Description
Specifications
| Power | |
|---|---|
| Output power | 20000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 415 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 415 V |
| Efficiency | 0.96% |
| Input current Total Harmonic Distortion (THD) | 1% |
| Output power capacity | 20 kVA |
| Efficiency (On-line mode) | 99% |
| Efficiency (ECO mode) | 99% |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Number of output phases | 3 |
| Number of input phases | 3 |
| Output power | 20000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 415 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 415 V |
| Efficiency | 0.96% |
| Input current Total Harmonic Distortion (THD) | 1% |
| Audible alarm(s) | Yes |
| Output power capacity | 20 kVA |
| Efficiency (On-line mode) | 99% |
| Efficiency (ECO mode) | 99% |
| ECO mode | Yes |
| Input frequency | 50/60 Hz |
| Potential-free output | Yes |
| Auto shut-off | Yes |
| Ports & interfaces | |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Hot-swap battery | No |
| Design | |
| Rack capacity | 3U |
| Form factor | Tower |
| Product colour | Black |
| Certification | IEC/EN 62040-2 IEC/EN 62040-1 EN 62040-3 |
| Modular | Yes |
| Display type | LCD |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 24.8 kg |
| Width | 438 mm |
| Height | 129 mm |
| Depth | 802 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Manual | Yes |
| Certificates | |
| Certification | IEC/EN 62040-2 IEC/EN 62040-1 EN 62040-3 |
| Other features | |
| Input connection type | Fixed |
| Output connection type | Fixed |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
