Intel Atom C3538, 4 GB DDR4, 16 x SATA SSD/HDD, 2 x USB 3.0, RJ-45, 132.3 mm x 482 mm x 656.5, 17.4 kg
RS2818RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory and optional high-speed NIC support. It fits perfectly as a backup target for distributed businesses, a centralized file server, or a backup target for employee workstations in a growing business.
Robust scalability and reliability
RS2818RP+ provides large, scalable storage capacity with affordable total cost of ownership. The 3U chassis design accommodates up to 16 drives and the storage capacity can be further scaled up when connected to one Synology Expansion Unit RX1217 or RX1217RP1, providing a total drive count of 28 without disrupting host services.
Ultimate Backup Solution
RS2818RP+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

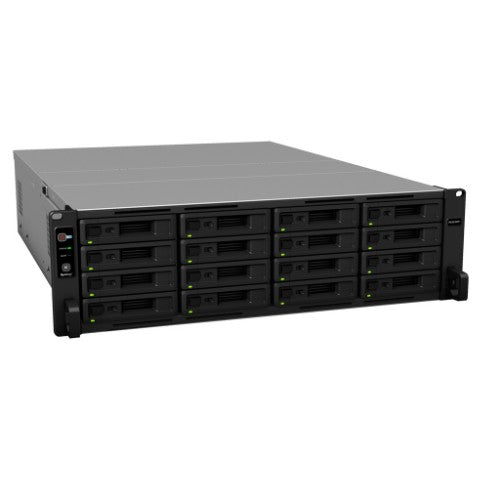

Synology RackStation RS2818RP+ NAS/storage server Rack (3U) Intel Atom® C3538 4 GB DDR4 Black
MPN:
RS2818RP+
Out of stock
£2,509.14
VAT included.
Shipping calculated at checkout.
Details
Description
Scalable Storage Server On-DemandRS2818RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory and optional high-speed NIC support. It fits perfectly as a backup target for distributed businesses, a centralized file server, or a backup target for employee workstations in a growing business.
Robust scalability and reliability
RS2818RP+ provides large, scalable storage capacity with affordable total cost of ownership. The 3U chassis design accommodates up to 16 drives and the storage capacity can be further scaled up when connected to one Synology Expansion Unit RX1217 or RX1217RP1, providing a total drive count of 28 without disrupting host services.
Ultimate Backup Solution
RS2818RP+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 16 |
| Maximum supported storage capacity | 192 TB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor manufacturer | Intel |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 15 W |
| Tcase | 87 °C |
| Stepping | B1 |
| Processor threads | 4 |
| Processor socket | BGA 1310 |
| Processor package size | 34 x 28 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Denverton |
| Processor code | SR3L7 |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Processor boost frequency | 2.1 GHz |
| PCI Express slots version | 3.0 |
| ECC supported by processor | Yes |
| CPU configuration (max) | 1 |
| Maximum internal memory supported by processor | 256 GB |
| Conflict-Free processor | Yes |
| Processor ARK ID | 97929 |
| Processor frequency | 2.1 GHz |
| Processor family | Intel Atom® |
| Processor model | C3538 |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 GB |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Design | |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Drive bay locking | Yes |
| Built-in display | No |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| LED indicators | Yes |
| Chassis type | Rack (3U) |
| Technical details | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Built-in display | No |
| Product colour | Black |
| Noise level | 51 dB |
| Multilingual support | Yes |
| LED indicators | Yes |
| Chassis type | Rack (3U) |
| Number of fans | 3 fan(s) |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Performance | |
| Built-in FTP server | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Noise level | 51 dB |
| Multilingual support | Yes |
| Access Control List (ACL) | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 3 fan(s) |
| Security | |
| Drive bay locking | Yes |
| Access Control List (ACL) | Yes |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 138.1 W |
| Number of power supply units | 2 |
| Weight & dimensions | |
| Width | 485 mm |
| Depth | 656.5 mm |
| Height | 132.3 mm |
| Weight | 17.4 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| Processor special features | |
| Maximum number of PCI Express lanes | 12 |
| Intel® Turbo Boost Technology | No |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Boot | Yes |
| Intel QuickAssist Technology | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR4-SDRAM |
| Operational conditions | |
| Storage temperature (T-T) | 5 - 95 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Packaging data | |
| Cables included | AC, LAN (RJ-45) |
| Other features | |
| Processor ARK ID | 97929 |
| Compliance certificates | RoHS |
