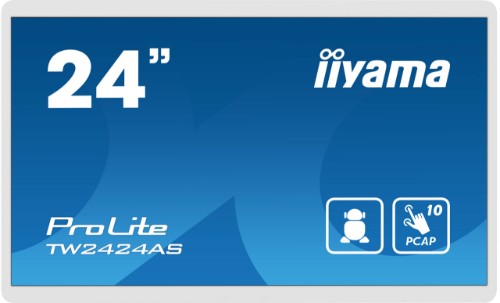

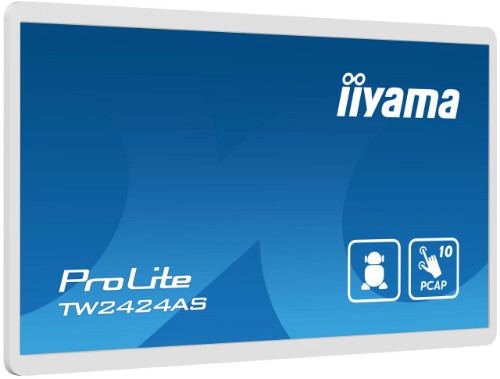

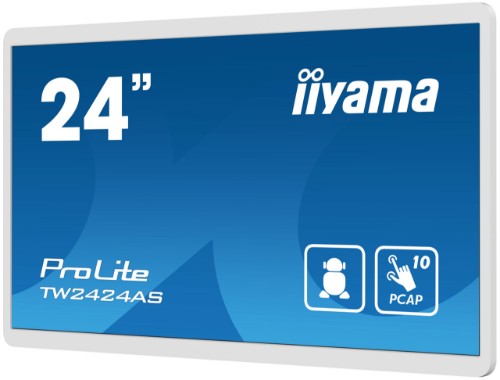

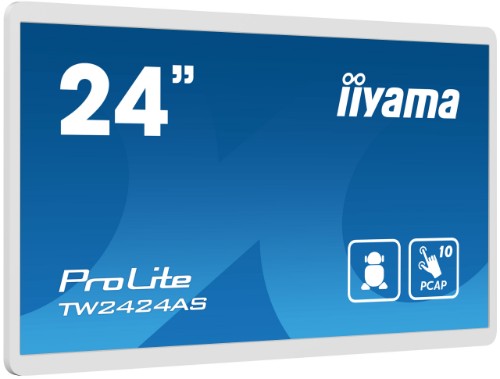

23.8” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology and anti glare coating
iiyama 23.8” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology and anti glare coating
Sale price
£367.98
Regular price
£368.29
Taxes included.
Shipping calculated at checkout.
Details
Reasons To Buy
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.24/7
24/7 displays are designed for a continuous operation.Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.Description
The ProLite TW2424AS-W1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Horizontal scan range | 31 - 83 kHz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 14 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 3H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 60.5 cm |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 250 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Mean time between failures (MTBF) | 50000 h |
| Built-in microphone | Yes |
| Operating system installed | Android |
| Flicker-free technology | Yes |
| Operating system version | 12 |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Built-in microphone | Yes |
| Design | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Product colour | Black |
| Front bezel colour | White |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| HDMI ports quantity | 1 |
| HDCP | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Touch port | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Built-in microphone | Yes |
| Product colour | Black |
| Front bezel colour | White |
| Built-in processor | Yes |
| Power supply type | External |
| Active display area (W x H) | 527 x 296.5 mm |
| Weight (with stand) | 4.23 kg |
| Surface hardness | 3H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |

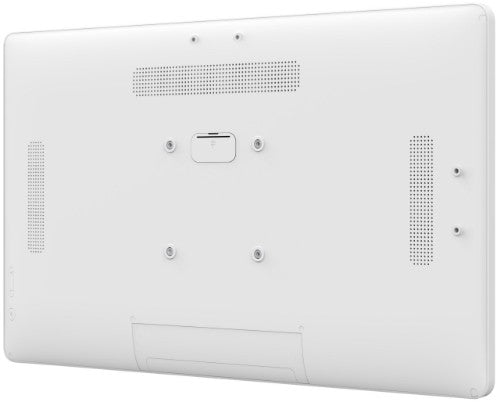

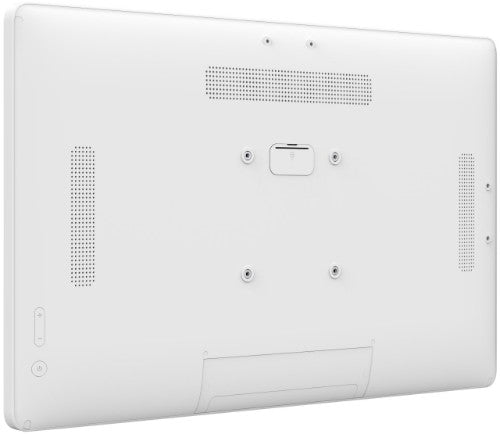

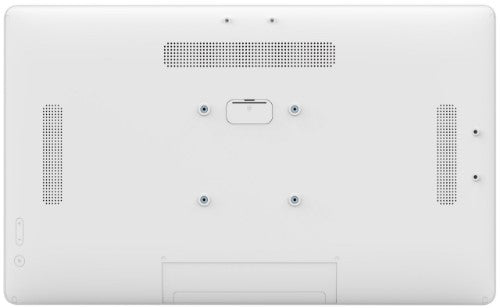

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| Power | |
| Power supply type | External |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 19 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Weight & dimensions | |
| Width (with stand) | 549.5 mm |
| Depth (with stand) | 28 mm |
| Height (with stand) | 336 mm |
| Weight (with stand) | 4.23 kg |
| Package width | 580 mm |
| Package depth | 580 mm |
| Package height | 375 mm |
| Package weight | 6.15 kg |
| Packaging data | |
| Package width | 580 mm |
| Package depth | 580 mm |
| Package height | 375 mm |
| Package weight | 6.15 kg |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | HDMI, Power, USB |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | HDMI, Power, USB |
| Batteries included | Yes |
| Thin Client | |
| Operating system installed | Android |
| Processor cores | 2 |
| Processor frequency | 1.8 GHz |
| Processor family | ARM Rockchip |
| Processor model | RK3399 |
| Other features | |
| Built-in processor | Yes |
| Active display area (W x H) | 527 x 296.5 mm |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Ethernet LAN (RJ-45) ports | 1 |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth | Yes |
| Remote control included | Yes |
| Bluetooth version | 5.2 |
| Quick start guide | Yes |
| Surface hardness | 3H |
| Power supply type | External |
| Ethernet LAN | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | White |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
