4K60 HDMI eARC Extractor
This extractor supports the full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, for enhanced contrast and more lifelike colour. Featuring support for HDCP 2.2, this is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including 7.1 Channel audio this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to the audio device. HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.

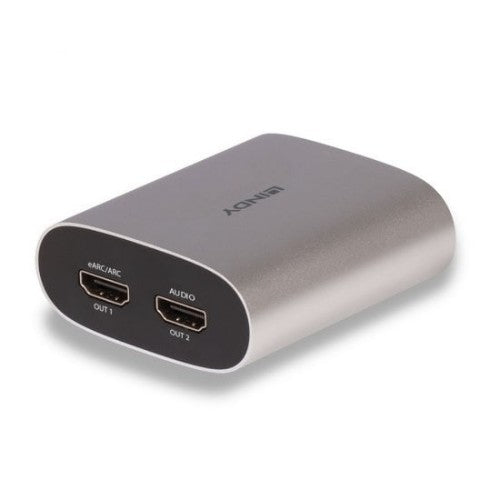

Lindy 4K60 HDMI eARC Extractor
MPN:
38368
Out of stock
Price excluding VAT:
Exc Vat £32.95
Price including VAT:
Inc Vat £39.54
Shipping calculated at checkout.
Details
Key Features
- Extracts stereo or multi-channel audio from an HDMI eARC port
- Supports 4K@60Hz video pass-through, with additional support for HDR10, HDR10+ and Dolby Vison
- CEC and and EDID management
- Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby digital plus, Dolby True-HD, DolbyAtmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
Description
The Lindy 4K HDMI extractor allows users to seamlessly extract digital audio from an HDMI Source and HDMI eARC display, while sending the video signal to a 4K UHD display. This is a perfect solution for separating audio signals too your AV Receiver or sound bar.This extractor supports the full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, for enhanced contrast and more lifelike colour. Featuring support for HDCP 2.2, this is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including 7.1 Channel audio this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to the audio device. HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.
Specifications
| Inputs | |
|---|---|
| HDMI in | 1 |
| USB connector type | Micro-USB B |
| USB 1.1 ports quantity | 1 |
| DC-in jack | Yes |
| Outputs | |
| Number of HDMI outputs | 2 |
| Technical details | |
| Audio playback formats | LPCM, PCM |
| Maximum resolution | 4096 x 2160 pixels |
| Package width | 65 mm |
| Package height | 27 mm |
| Product colour | Black, Silver |
| Housing material | Aluminium |
| HDCP version | 2.2 |
| HDCP | Yes |
| HDMI version | 2.0b |
| Chipset | Sil9437CNUC |
| Supported sample rates | 192 kHz |
| Audio codecs | PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X |
| Bit rate | 24 bit |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 70 mm |
| Height | 27 mm |
| Package depth | 70 mm |
| Package weight | 191.6 g |
| Package width | 65 mm |
| Package height | 27 mm |
| Weight | 83 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Colour | |
| Product colour | Black, Silver |
| Packaging data | |
| Package depth | 70 mm |
| Package weight | 191.6 g |
| Package width | 65 mm |
| Package height | 27 mm |
| Quantity | 1 |
| Cables included | USB Type-A to Micro-USB Type-B |
| Manual | Yes |
| Package type | Box |
| Packaging content | |
| Power cable length | 1 m |
