HDMI ARC Audio Downmix Decoder
The converter's Dolby® Digital Decoder function ensures that Dolby® Digital audio signals are down-mixed to analogue stereo without any compression or loss in audio quality, and with support for PCM sample rates up to 192kHz and Dolby digital sample rates up to 48kHz, music and movies can be heard how the artist and sound engineers intended, with greater detail and clarity. Featuring flexible operation between all audio formats, and status LEDs, to indicate a Dolby Digital encoded audio source or for power, ensures simple, fuss-free installation and use.

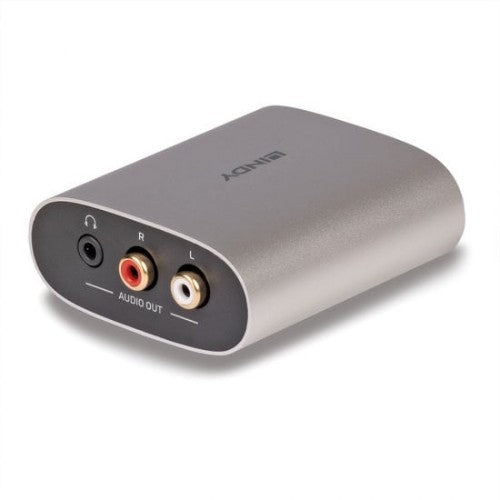

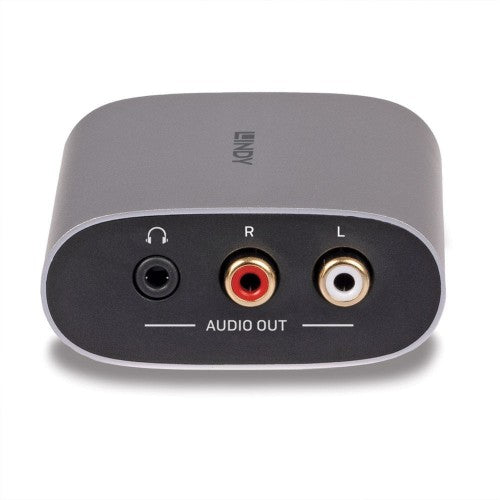

Lindy HDMI ARC Audio Downmix Decoder
MPN:
38362
Out of stock
Price excluding VAT:
Exc Vat £42.78
Price including VAT:
Inc Vat £51.34
Shipping calculated at checkout.
Details
Key Features
- ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analogue stereo output, for audio receiver/amplifier/headphones
- Support PCM 2.0, Dolby 5.1, DTS 5.1 audio downmix to 2 channel stereo audio output
- CEC Pass Through
- 2 Year Warranty
Description
The Lindy HDMI ARC Audio Downmix Decoder of high quality audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance, for a high quality audio experience of movies, music and games. Effortlessly adjust TV sound and speaker sound synchronously with CEC passthrough allowing you to increase or decreases the TV volume with your regular remote. The separate micro-USB port is used for power, via connection to a source devices USB port, avoiding the need for a separate PSU.The converter's Dolby® Digital Decoder function ensures that Dolby® Digital audio signals are down-mixed to analogue stereo without any compression or loss in audio quality, and with support for PCM sample rates up to 192kHz and Dolby digital sample rates up to 48kHz, music and movies can be heard how the artist and sound engineers intended, with greater detail and clarity. Featuring flexible operation between all audio formats, and status LEDs, to indicate a Dolby Digital encoded audio source or for power, ensures simple, fuss-free installation and use.
Specifications
| Inputs | |
|---|---|
| HDMI in | 1 |
| USB connector type | Micro-USB |
| Outputs | |
| Audio (L/R) out | 1 |
| Headphone out | Yes |
| Technical details | |
| Package width | 146 mm |
| Package height | 65 mm |
| Product colour | Silver |
| Certification | California Proposition 65 |
| Frequency range | 20 - 20000 Hz |
| Housing material | Plastic |
| Sustainability compliance | Yes |
| HDMI version | 1.3 |
| Chipset | SPHE8107S-AD |
| CEC pass-through | Yes |
| Output impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Warranty period | 2 year(s) |
| Signal-to-Noise Ratio (SNR) | 101 dB |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Power | |
| Operating voltage | 5 V |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 65 mm |
| Height | 27 mm |
| Package depth | 105 mm |
| Package weight | 175 g |
| Package width | 146 mm |
| Package height | 65 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Colour | |
| Product colour | Silver |
| Certificates | |
| Certification | California Proposition 65 |
| Packaging data | |
| Package depth | 105 mm |
| Package weight | 175 g |
| Package width | 146 mm |
| Package height | 65 mm |
| Quantity | 1 |
| Cables included | USB Type-A to Micro-USB Type-B |
| Manual | Yes |
| Package type | Box |
