5.7" Touch Screen, 2D CMOS imager, BT, WiFi (dual band), 4G, NFC, GPS and Camera
Mobile Computers
Designed to bridge the gap between a rugged PDA and a sleek & stylish smartphone, the M10 Pilot Pro offers businesses a high quality Android mobile computer. At 5.7”, it’s one of the largest durable touchscreens on the market. It features edge to edge screen protection by a metal housing that’s designed to withstand high drops and offer reliable performance in all weathers. The M10 features a white anti-microbial casing that makes it perfect for healthcare applications.
The M10 Pilot Pro uses an ultra-slim megapixel barcode scanner with left and right scan solutions for comfortable data capture, all housed in a design that matches the look and feel of high-end modern consumer phones. With Newland’s standard warranty, extended warranty options and Ndevor MDM solutions, the M10 Pilot Pro has all the style, functionality and support needed for any enterprise.
Comprehensive data capture.
The M10 Pilot Pro can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode Comprehensive data capture. The M10 can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode scanning, NFC RFID reading, fingerprint recognition and GPS/Beidou/GLONASS.
Versatile connectivity.
With dual band 802.11 a/b/g/n/ac WiFi and 4G/3G/2G support, the M10 keeps you connected. Further optimizing this, the dual SIM option allows you to use the most suitable provider no matter where you are. It's a match for any leading consumer-brand mobile phone experience.
Powerful performance.
The Android 11.0 operating system helps you get more from your mobile computer. It's intuitive, fast and tailored to you and your choice of software, applications and operational use. A 2.0GHz octacore processor keeps you running even smoother.
Long Lasting Battery.
The M10 is equipped with a 4800mAh battery. Supplemented by a low-power design, the usage time is significant. The device is so power-efficient that you won't need to change the battery to operate well beyond a standard shift. To top it off, it supports fast-charging via its Type-C port.
Android Enterprise Recommended.
The M10 is the first Newland unit to be Android Enterprise recommended. Additionally, GMS services are included.
Antimicrobial Casing.
With healthcare in mind, the M10 features an antimicrobial casing that is built to resist even the harshest cleaning agents.
Biometric Security.
The M10 has fingerprint biometrics for extra security and a faster login. Positioned on the back of the device, the device can be comfortably unlocked with one hand without having the press the front of the screen.

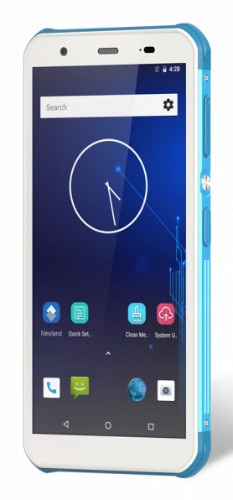

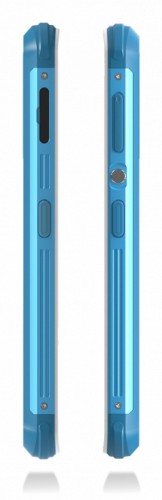

Newland M10 handheld mobile computer 14.5 cm (5.7") 1440 x 720 pixels Touchscreen 231 g Black
Sale price
£370.56
Regular price
£648.51
Taxes included.
Shipping calculated at checkout.
Details
Description
M10Mobile Computers
Designed to bridge the gap between a rugged PDA and a sleek & stylish smartphone, the M10 Pilot Pro offers businesses a high quality Android mobile computer. At 5.7”, it’s one of the largest durable touchscreens on the market. It features edge to edge screen protection by a metal housing that’s designed to withstand high drops and offer reliable performance in all weathers. The M10 features a white anti-microbial casing that makes it perfect for healthcare applications.
The M10 Pilot Pro uses an ultra-slim megapixel barcode scanner with left and right scan solutions for comfortable data capture, all housed in a design that matches the look and feel of high-end modern consumer phones. With Newland’s standard warranty, extended warranty options and Ndevor MDM solutions, the M10 Pilot Pro has all the style, functionality and support needed for any enterprise.
Comprehensive data capture.
The M10 Pilot Pro can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode Comprehensive data capture. The M10 can be integrated with a variety of data capture options including Mega Pixel 1D/2D barcode scanning, NFC RFID reading, fingerprint recognition and GPS/Beidou/GLONASS.
Versatile connectivity.
With dual band 802.11 a/b/g/n/ac WiFi and 4G/3G/2G support, the M10 keeps you connected. Further optimizing this, the dual SIM option allows you to use the most suitable provider no matter where you are. It's a match for any leading consumer-brand mobile phone experience.
Powerful performance.
The Android 11.0 operating system helps you get more from your mobile computer. It's intuitive, fast and tailored to you and your choice of software, applications and operational use. A 2.0GHz octacore processor keeps you running even smoother.
Long Lasting Battery.
The M10 is equipped with a 4800mAh battery. Supplemented by a low-power design, the usage time is significant. The device is so power-efficient that you won't need to change the battery to operate well beyond a standard shift. To top it off, it supports fast-charging via its Type-C port.
Android Enterprise Recommended.
The M10 is the first Newland unit to be Android Enterprise recommended. Additionally, GMS services are included.
Antimicrobial Casing.
With healthcare in mind, the M10 features an antimicrobial casing that is built to resist even the harshest cleaning agents.
Biometric Security.
The M10 has fingerprint biometrics for extra security and a faster login. Positioned on the back of the device, the device can be comfortably unlocked with one hand without having the press the front of the screen.
Specifications
| Display | |
|---|---|
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Display resolution | 1440 x 720 pixels |
| Display diagonal | 14.5 cm (5.7") |
| Memory | |
| Internal memory | 4 GB |
| Maximum memory card size | 128 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Flash memory | 64 GB |
| Processor | |
| Processor frequency | 2 GHz |
| Number of cores | 8 |
| Network | |
| Near Field Communication (NFC) | Yes |
| Internal modem | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Data network | 2G, 3G, 4G |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| SIM card type | NanoSIM |
| GPS Performance | |
| GLONASS | Yes |
| GPS (satellite) | Yes |
| Assisted GPS (A-GPS) | Yes |
| BeiDou | Yes |
| Galileo | Yes |
| Camera | |
| Built-in flash | Yes |
| Auto focus | Yes |
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 13 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Audio | |
| Built-in microphone | Yes |
| Speakers | Yes |
| Performance | |
| RFID reader | Yes |
| Barcode reader | Yes |
| Drop proof | Yes |
| Drop proof | 1.5 cm |
| 2D (matrix & stacked) barcodes supported | Code 39, Data Matrix, PDF417, QR Code |
| International Protection (IP) code | IP67 |
| Product colour | Black |
| Vibrating alert | Yes |
| LED indicators | Yes |
| Certification | CE RED, FCCID, RoHS, IEC6247 |
| Scanner type | 1D/2D |
| Software | |
| Operating system version | 11 |
| Operating system installed | Android |
| Bundled software | Ndevor, SOTI, Airwatch |
| Power | |
| Battery voltage | 3.8 V |
| Battery capacity | 4800 mAh |
| AC adapter output current | 2 A |
| AC adapter output voltage | 5 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 76.3 mm |
| Depth | 12.6 mm |
| Height | 157 mm |
| Weight | 231 g |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 55 °C |
| Wireless LAN features | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Data transmission | |
| Data network | 2G, 3G, 4G |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Technical details | |
| RFID reader | Yes |
| Barcode reader | Yes |
| Drop proof | Yes |
| Drop proof | 1.5 cm |
| 2D (matrix & stacked) barcodes supported | Code 39, Data Matrix, PDF417, QR Code |
| International Protection (IP) code | IP67 |
| Product colour | Black |
| Vibrating alert | Yes |
| LED indicators | Yes |
| Keypad number of keys | 10 |
| Certification | CE RED, FCCID, RoHS, IEC6247 |
| Scanner type | 1D/2D |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
