22" Full HD 10pt touchscreen featuring IPS panel technology, touch through glass function and anti fingerprint coating

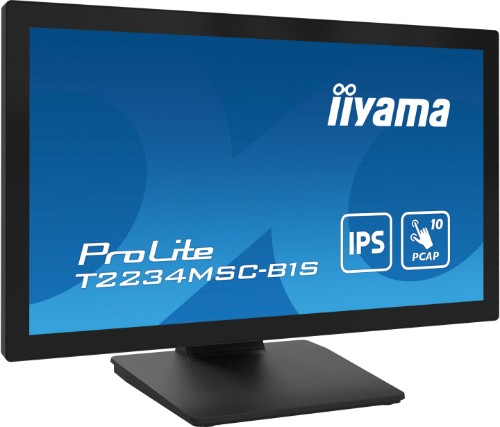

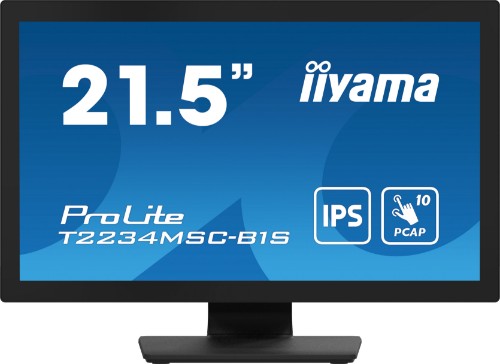

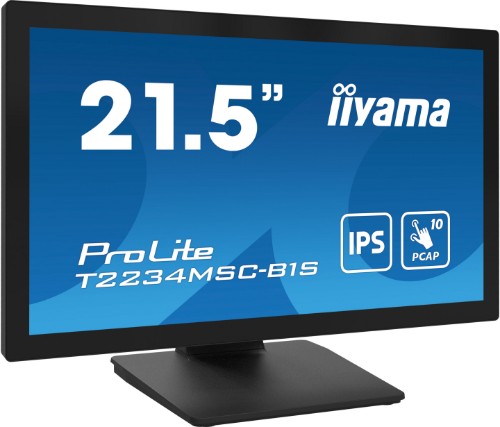

iiyama ProLite 22" Full HD 10pt touchscreen featuring IPS panel technology, touch through glass function and anti fingerprint coating
£375.59
Taxes included.
Shipping calculated at checkout.
Details
Reasons To Buy
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.Description
The ProLite T2234MSC-B1S uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Display brightness (peak) | 350 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 54.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Palm rejection | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 2.5 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| HDMI | Yes |
| Product colour | Black |
| Front bezel colour | Black |
| Power supply type | External |
| Weight (with stand) | 5.9 kg |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 90° |
| Height adjustment | No |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 21 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1531684 |
| Weight & dimensions | |
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 374 mm |
| Weight (with stand) | 5.9 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | Audio, DisplayPort, HDMI, Power, USB |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1531684 |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | Audio, DisplayPort, HDMI, Power, USB |
| Other features | |
| International Protection (IP) code | IP65 |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Power supply type | External |
| Display brightness (peak) | 350 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
