Cellular / 5G MIMO & GNSS Antenna, 96 x 130 mm, 1.5m

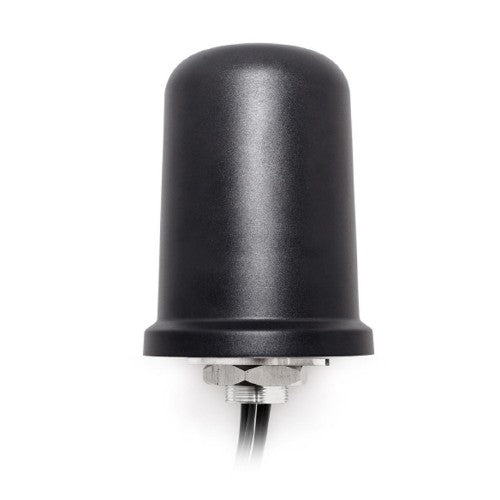

Advantech BB-2J7184BGFC-150 network antenna MIMO directional antenna SMA 4.7 dBi
£181.46
Taxes included.
Shipping calculated at checkout.
Details
Description
Specifications
| Performance | |
|---|---|
| Bandwidth note | 600 - 5800 MHz |
| Antenna gain level (max) | 4.7 dBi |
| Frequency band | 5.1 - 5.9 GHz |
| Features | |
| International Protection (IP) code | IP67, IP69K |
| Connector gender | Male |
| Antenna type | MIMO directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 3.7:1 |
| Product colour | Black |
| Cable length | 1.5 m |
| Antenna connector type | SMA |
| Antenna gain level (max) | 4.7 dBi |
| Frequency band | 5.1 - 5.9 GHz |
| Power | |
| Power consumption (max) | 35 W |
| Weight & dimensions | |
| Height | 130 mm |
| Diameter | 9.6 cm |
| Technical details | |
| Antenna gain level (max) | 4.7 dBi |
| Frequency band | 5.1 - 5.9 GHz |
| Antenna type | MIMO directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 3.7:1 |
| Cable length | 1.5 m |
| Antenna connector type | SMA |
| Colour | |
| Product colour | Black |
