4xPoE++, 2xSFP, 100-240V, 50/60Hz
Ex Connection Rail 4-Port PoE++ is a high performance industrial PoE++ switch for hazardous areas. It is designed to provide power and network connectivity for up to four explosion-protected PoE cameras. Furthermore, this managed switch is equipped with two additional RJ45 and two SFP data ports that allows for fiber connectivity over long distance installations. The enclosure is equipped with a glass front for easy status verification without opening in a potentially combustible atmosphere. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and is ready for wall mounting.
Total overview with unique user interface
Ex Connection Rail 4-Port PoE++ uses a unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.

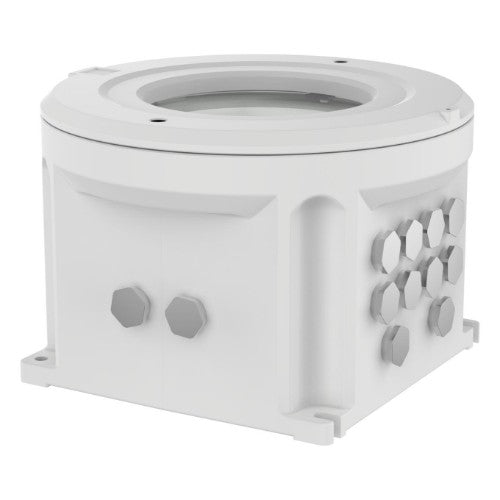

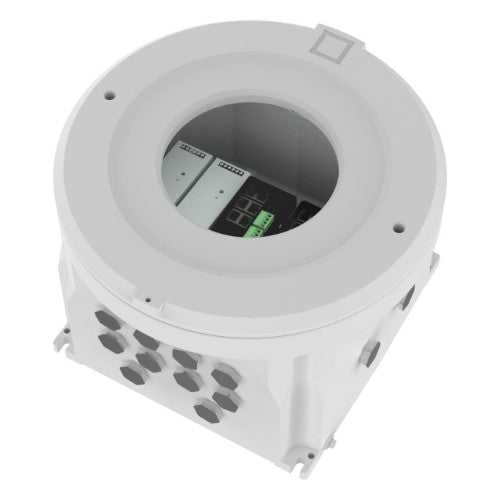

Axis 02746-001 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
£7,832.35
Taxes included.
Shipping calculated at checkout.
Details
Description
Industrial PoE++ switch for hazardous areasEx Connection Rail 4-Port PoE++ is a high performance industrial PoE++ switch for hazardous areas. It is designed to provide power and network connectivity for up to four explosion-protected PoE cameras. Furthermore, this managed switch is equipped with two additional RJ45 and two SFP data ports that allows for fiber connectivity over long distance installations. The enclosure is equipped with a glass front for easy status verification without opening in a potentially combustible atmosphere. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and is ready for wall mounting.
Total overview with unique user interface
Ex Connection Rail 4-Port PoE++ uses a unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3at, IEEE 802.3bt |
| Design | |
| International Protection (IP) code | IP66 |
| Product colour | White |
| Housing material | Aluminium |
| Certification | 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A, IEC/EN 60529 IP66, IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-31, ATEX, IECEx, EAC Ex |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 50 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 348 mm |
| Depth | 348 mm |
| Height | 230 mm |
| Weight | 21 kg |
| Sustainability | |
| Doesn't contain | PVC |
| Optical fiber | |
| Fiber optic connector | SFP |
| Technical details | |
| Product colour | White |
| Housing material | Aluminium |
| Doesn't contain | PVC |
| Compliance certificates | REACH, RoHS |
| Certificates | |
| Certification | 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A, IEC/EN 60529 IP66, IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-31, ATEX, IECEx, EAC Ex |
| Compliance certificates | REACH, RoHS |
