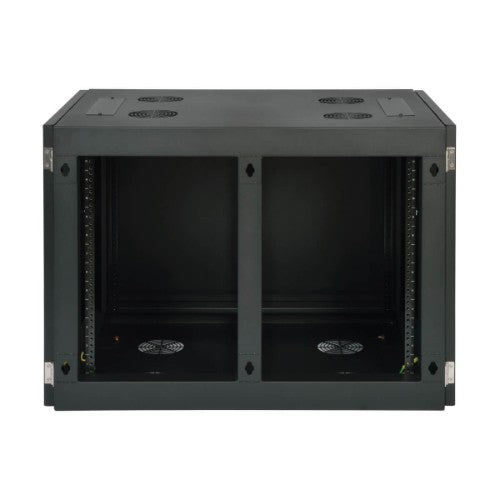

SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure
Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels.
The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.

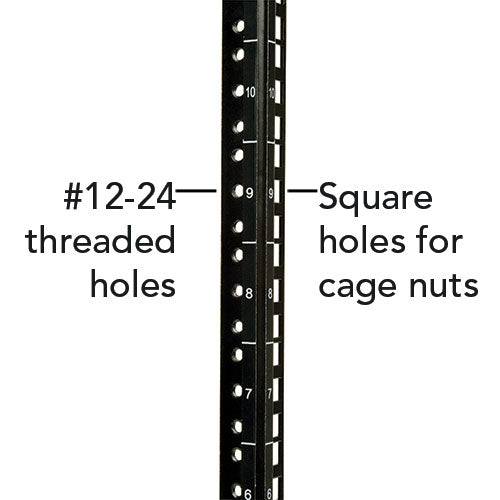

The SRW12UHD comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.
Tripp Lite SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Small Rack Enclosure
MPN:
SRW12UHD
Low stock: 1
Price excluding VAT:
Exc Vat £461.92
Price including VAT:
Inc Vat £554.30
Shipping calculated at checkout.
Details
Key Features
- Maximum load capacity of 500 lbs (226.8 kgs)
- Locking steel cabinet vented at sides, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 32.5 in. deep
Description
The SRW12UHD SmartRack 12U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 lbs (226.8 kgs).Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels.
The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.
The SRW12UHD comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 965.2 mm |
| Package width | 660.4 mm |
| Package height | 711.2 mm |
| Package weight | 59 kg |
| Width | 920 mm |
| Depth | 629.2 mm |
| Height | 672.1 mm |
| Weight | 46 kg |
| Width (imperial) | 92 cm (36.2") |
| Depth (imperial) | 62.9 cm (24.8") |
| Height (imperial) | 67.2 cm (26.5") |
| Maximum weight capacity | 225 kg |
| Features | |
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 225 kg |
| Product colour | Black |
| Certification | EIA-310-E, NOM |
| Packaging data | |
| Package depth | 965.2 mm |
| Package width | 660.4 mm |
| Package height | 711.2 mm |
| Package weight | 59 kg |
| Technical details | |
| Package width | 660.4 mm |
| Package height | 711.2 mm |
| Type | Wall mounted rack |
| Master (outer) case GTIN (EAN/UPC) | 00037332183323 |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | EIA-310-E, NOM |
| Logistics data | |
| Master (outer) case width | 660.4 mm |
| Master (outer) case length | 965.2 mm |
| Master (outer) case height | 711.2 mm |
| Master (outer) case gross weight | 59 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
