15.6'', 1366 x 768 @ 60Hz, 6.41 W, 16:9, PCAP, 283.4 x 387.1 x 173.5 mm, 2.642 kg, black
Integrated touch.
With no moving parts to wear out, the 1509 offers a touch response that is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus.
Flexible mounting.

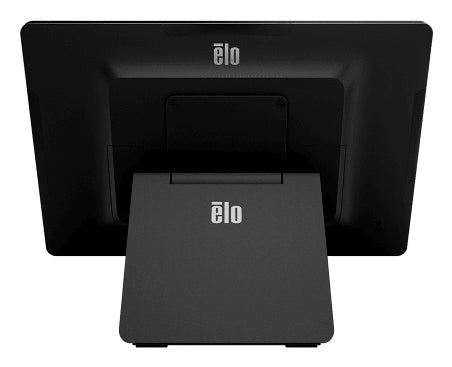

The touchscreen monitor can be affixed to a counter, or when the stand is removed, mounted on a wall or to a pole, and with the LED backlight power consumption is significantly reduced.
Commercial grade.
The 15.6-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our two-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

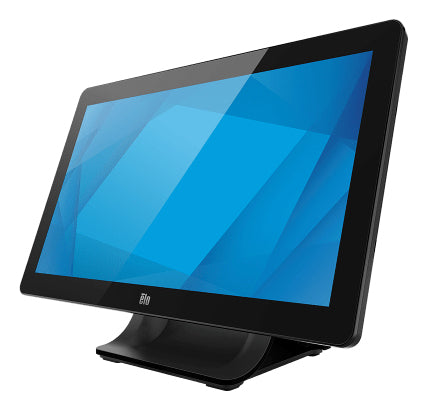

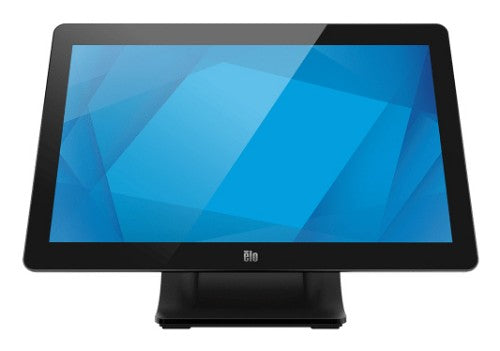

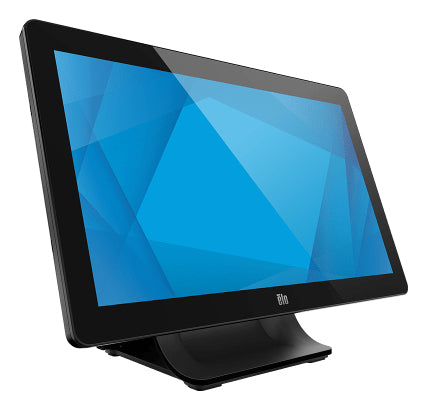

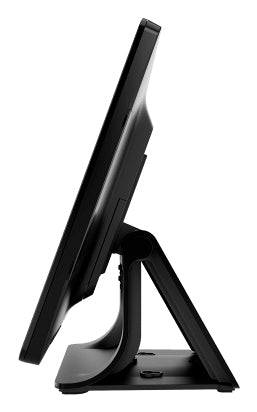

Elo Touch Solutions 1509L Digital signage flat panel 39.6 cm (15.6") LED 200 cd/m² Black Touchscreen
Elo Touch Solutions 1509L Digital signage flat panel 39.6 cm (15.6") LED 200 cd/m² Black Touchscreen
£285.33
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Sleek and modern widescreen design with built-for-touch reliability
- Energy savings using LED technology
- Pure, clear glass touchscreen for superior picture quality
- Removable stand allows the monitor to be mounted on a wall or to a pole (via VESA bracket)
- Fixable to counter for extra securityOptional, field-installable magnetic stripe reader (MSR)
- Touchscreen is sealed for resistance to water, dust, grease
Description
The Elo 1509L 15.6-inch widescreen LED touchscreen monitor delivers a low-profile, retail-hardened solution with a pure glass construction to allow high light transmission without compromising durability or functionality. Available with TouchPro® PCAP offering multi touch capacity, the 1509 has been "built for touch" offering an ideal solution for general applications including hospitality and retail environments.Integrated touch.
With no moving parts to wear out, the 1509 offers a touch response that is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus.
Flexible mounting.
The touchscreen monitor can be affixed to a counter, or when the stand is removed, mounted on a wall or to a pole, and with the LED backlight power consumption is significantly reduced.
Commercial grade.
The 15.6-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our two-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| Panel type | TFT-LCD |
| Touchscreen | Yes |
| Active display area (W x H) | 344.23 x 193.55 mm |
| Display technology | LED |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Display brightness | 200 cd/m² |
| Response time | 12 ms |
| Contrast ratio (typical) | 500:1 |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 60° |
| Display diagonal (metric) | 419.1 cm |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 31.5 - 82 kHz |
| Number of displays | 1 |
| Touchscreen technology | Projected capacitive system |
| Native refresh rate | 60 Hz |
| Multi-touch | Yes |
| Ports & interfaces | |
| USB connector type | USB Type-B |
| USB port | Yes |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Product design | Digital signage flat panel |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Stand type | Center stand |
| Performance | |
| International Protection (IP) code | IPX1 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| Power | |
| Power consumption (sleep) | 0.84 W |
| Power consumption (off) | 0.21 W |
| Power consumption (typical) | 6.41 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 8 kWh |
| Weight & dimensions | |
| Width (with stand) | 283.4 mm |
| Height (with stand) | 387.1 mm |
| Depth (with stand) | 173.5 mm |
| Weight (with stand) | 2.64 kg |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 260 mm |
| Package height | 326 mm |
| Package weight | 4.76 kg |
| Manual | Yes |
| Cables included | USB Type-A to USB Type-B, VGA |
| Packaging content | |
| Stand included | Yes |
| Manual | Yes |
| Cables included | USB Type-A to USB Type-B, VGA |
| Stand colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-B |
| Stand included | Yes |
| Panel type | TFT-LCD |
| Weight (with stand) | 2.64 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| USB connector type | USB Type-B |
| Stand included | Yes |
| Panel type | TFT-LCD |
| Width (with stand) | 283.4 mm |
| Mean time between failures (MTBF) | 50000 h |
| Height (with stand) | 387.1 mm |
| Display technology | LED |
| Depth (with stand) | 173.5 mm |
| DC-in jack | Yes |
| Aspect ratio | 16:9 |
| Manual | Yes |
| Weight (with stand) | 2.64 kg |
| Energy efficiency scale | A to G |
