Layer 3 Stackable Smart Managed Switch, 44x 10/100/1000 Base-T PoE Ports, 4x 2.5G Base-T PoE Ports, 2x 10G Base-T Ports, 2x 10G SFP+ Ports, 188 Gbps Switching Capacity

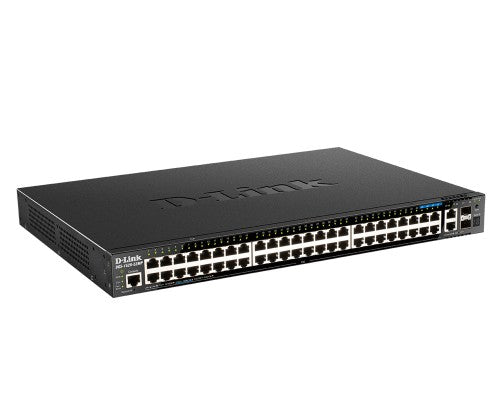

D-Link DGS-1520-52MP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Sale price
£1,381.70
Regular price
£1,824.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Effortless deployment with Zero Touch Provisioning
- Multi-site management via Web GUI
- Perfect for SMB access & aggregation layers
- Quickly add 10 GB Ethernet upgrade to infrastructure
- Power over Ethernet and fiber options with various port combinations
Description
The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers. - Stackable Smart Gigabit Stack up to eight switches for high-density Gigabit aggregation - Zero Touch Provisioning Effortless multi-site deployment - Multi-Gigabit Ports Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models) - Flexible Stacking or Uplink 10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink - High Capacity Up to 188 Gbps switching capacity per switch - PoE Capable Up to 370 W PoE output per switch - Power Redundancy Connect with DPS-520 for power redundancy (non-PoE models) - Advanced Manageability Supports dynamic routing and selective Q-in-Q tagging High Availability The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity. Zero Touch Provisioning Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments. Multi-Gigabit Support Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds. Powerful Stacking Capability Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs. Minimize Outages with Power Redundancy For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs. Auto Discovery: Automatically detect power requirements of connected PD devices. RPS Port Priority: Enables administrators to define RPS failover policy. Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status. Low Network Latency, High PoE Budget High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices. Enhanced Manageability for Peace of Mind D-View 7 For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience. D-Link Network Assistant Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Data transmission | |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Jumbo frames | 12288 |
| MAC address table | 16384 entries |
| Switching capacity | 188 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 139.88 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP+ |
| Performance | |
| Stackable | Yes |
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Noise level | 56.7 dB |
| Mean time between failures (MTBF) | 328174 h |
| Technical details | |
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Noise level | 56.7 dB |
| Mean time between failures (MTBF) | 328174 h |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| 2.5G Ethernet (copper) ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 2 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, RIP, RIPng, VRRP |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power consumption (max) | 459.5 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 44 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Heat dissipation | 1635.1 BTU/h |
| Weight & dimensions | |
| Weight | 4.8 kg |
