13 mm, 8.3 fps, NETD, IP66/IP67, RJ-45
What’s the temperature?
AXIS Q2101-TE lets you remotely monitor temperatures over large areas—automatically or manually with just one camera. It can monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F) with several trigger types such as lowest and highest temperature or temperature gradient. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view. This also enables thermometric guard tour with support for up to 256 presets with 10 polygonal detection areas each. Spot temperature reading acts as a visual aid and lets you see the exact temperature in a specific area. Additionally, temperature metadata enables statistics, follow up, and process analysis.
Detect early signs of fire
Built on ARTPEC 8, the latest Axis system-on-chip (SoC), AXIS Q2101-TE offers powerful analytics capabilities. It comes with early fire detection analytics preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. Using smart filtering, the analytics can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles for reduced false alarms.
Depend on it - robust and secure
This reliable, IK10-, NEMA 4X-rated thermal camera is ideal for monitoring critical assets. It includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to electronic image stabilization (EIS), this robust camera provides smooth video even in scenes with vibrations. And, with four I/O ports and support for edge-to-edge technology it’s possible to connect a network speaker to enable audio alarms.

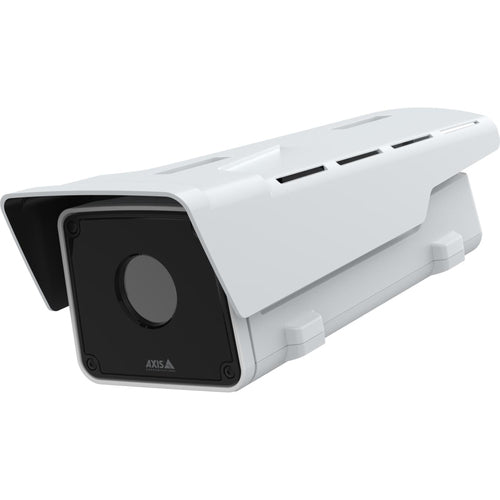

Axis 02651-001 security camera Box IP security camera Indoor 768 x 576 pixels Wall
MPN:
02651-001
Out of stock
Price excluding VAT:
Exc Vat £3,837.38
Price including VAT:
Inc Vat £4,604.86
Shipping calculated at checkout.
Details
Key Features
- Thermometric guard tour capabilities
- Early fire detection analytics
- Spot temperature reading
- Built-in cybersecurity features
- Support for edge-to-edge technology
Description
Ideal for patrolling large sites, this robust thermal camera lets you remotely monitor temperatures and trigger temperature-based events. It offers early fire detection analytics and built-in cybersecurity features.What’s the temperature?
AXIS Q2101-TE lets you remotely monitor temperatures over large areas—automatically or manually with just one camera. It can monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F) with several trigger types such as lowest and highest temperature or temperature gradient. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view. This also enables thermometric guard tour with support for up to 256 presets with 10 polygonal detection areas each. Spot temperature reading acts as a visual aid and lets you see the exact temperature in a specific area. Additionally, temperature metadata enables statistics, follow up, and process analysis.
Detect early signs of fire
Built on ARTPEC 8, the latest Axis system-on-chip (SoC), AXIS Q2101-TE offers powerful analytics capabilities. It comes with early fire detection analytics preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. Using smart filtering, the analytics can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles for reduced false alarms.
Depend on it - robust and secure
This reliable, IK10-, NEMA 4X-rated thermal camera is ideal for monitoring critical assets. It includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to electronic image stabilization (EIS), this robust camera provides smooth video even in scenes with vibrations. And, with four I/O ports and support for edge-to-edge technology it’s possible to connect a network speaker to enable audio alarms.
Specifications
| Performance | |
|---|---|
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Processor model | ARTPEC-8 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Thermal sensitivity (NETD) | 40 mK |
| Thermal module | Yes |
| Built-in processor | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Box |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| Camera | |
| Field of view (FOV) angle | 28° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 17 µm |
| Image sensor | |
| Sensor type | Microbolometer |
| Sensor type (thermal module) | Noise equivalent temperature difference (NETD) |
| Lens system | |
| Maximum aperture number | 1 |
| Lens diameter | 1.3 cm |
| Night vision | |
| Night vision | No |
| Video | |
| Privacy masking | Yes |
| Gain control type | Auto |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 768 x 576 pixels |
| Frame rate | 8.3 fps |
| Video streaming | Yes |
| Video recording | Yes |
| Audio | |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2048 MB |
| Flash memory | 8192 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| RS-485 ports | 2 |
| Headphone outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security | |
| Temperature sensor | Yes |
| Temperature measurement range | -40 - 350 °C |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Temperature measurement accuracy | 5 °C |
| Fire detection | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (Power over Ethernet (PoE)) | 4.6 W |
| Power consumption (typical) | 4.1 W |
| DC-in jack | Yes |
| DC output voltage | 8, 9, 10, 12, 15, 16, 24, 28 |
| Certificates | |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 404 mm |
| Height | 159 mm |
| Weight | 3.3 kg |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Packaging content | TORX T30 bit, TORX T20 screwdriver, terminal block connectors, connector guard, cable gaskets, owner authentication key |
| Technical details | |
| Temperature measurement range | -40 - 350 °C |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
