2 x Fast Ethernet RJ-45, 4 x RS-232/422/485
The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking reliability. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network. The EKI-1221/1222/1224 provide a feature that can allow users to select master or slave operation mode for each serial port. They not only allow an Ethernet master to control serial slaves, but also allow serial masters to control Ethernet slaves.

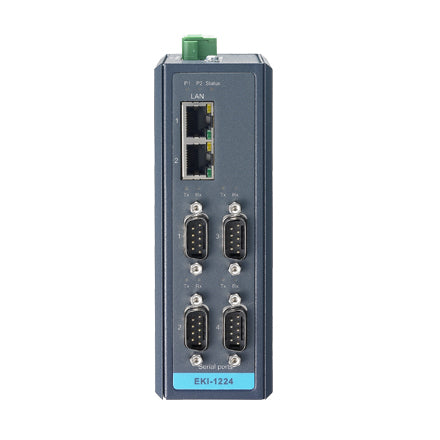

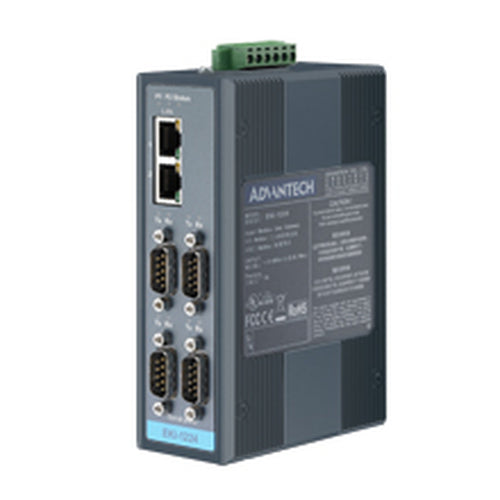

Advantech EKI-1224-CE gateway/controller
£451.24
Taxes included.
Shipping calculated at checkout.
Details
Description
4-port Modbus GatewayThe EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking reliability. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network. The EKI-1221/1222/1224 provide a feature that can allow users to select master or slave operation mode for each serial port. They not only allow an Ethernet master to control serial slaves, but also allow serial masters to control Ethernet slaves.
Specifications
| Design | |
|---|---|
| LED indicators | Power |
| Certification | CE, FCC |
| Mounting type | DIN-rail |
| Product colour | Black |
| Protocols | |
| Supported protocols | Modbus RTU, Modbus TCP, Modbus ASCII |
| Network | |
| Cabling technology | 10/100Base-T(X) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| I/O ports | 2 x RJ-45 4 x RS-232/422/485 |
| Power | |
| Power consumption (typical) | 6.3 W |
| Software | |
| Compatible operating systems | 32-bit/64-bit Windows XP/Vista/7/8/8.1, Windows Server 2003/2008/2008 R2/2012/2012 R2, Windows CE 5.0, Linux |
| Weight & dimensions | |
| Weight | 668 g |
| Dimensions (WxDxH) | 55 x 95 x 140 mm |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Indication | |
| LED indicators | Power |
| Certificates | |
| Certification | CE, FCC |
| Performance | |
| Certification | CE, FCC |
| Mounting type | DIN-rail |
| Product colour | Black |
