StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA
Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.
Mount to a Wall, Desk or DIN-Rail
Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices
This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.
The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
Wide Device Compatibility
The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux.
StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA
MPN:
5G4AINDNP-USB-A-HUB
In stock: 11
Sale price
£85.02 GBP
Regular price
£90.99 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- 4-PORT INDUSTRIAL USB HUB: USB 5Gbps expansion hub w/metal enclosure for durability in harsh environments; Provides 4 USB 3.0 Type-A Downstream Facing Ports (DFP); 5Gbps shared; 6ft A-B host cable; USB Event Monitoring utility (available for download)
- ESD PROTECTION: Heavy-duty USB hub with integrated electrostatic discharge safeguards; Protects connected devices with up to 8kV air and 4kV contact ESD protection
- FLEXIBLE MOUNTING OPTIONS: Built-in mounting brackets for wall or desk installation; DIN rail mounting hardware included; Screw-lock connectors on host and device ports to ensure a reliable and secure connection
- POWER OPTIONS: Rugged multiport hub is powered by either the DC barrel connection or terminal block using a 5 to 24V DC source (DC source not incl.); Optional power adapter available ITB20D3250 (sold separately) to power the hub via 2-wire terminal block
- POWER & CHARGE: When connected to a power source, the mountable port expander hub supports BC 1.2 charging; Each port supports 12W (2.4A); Overcurrent protection protects connected devices from overdrawing power
Description
Connect four USB Type-A 3.2 Gen 1 (5Gbps) devices to a single USB port on your computer, using a USB hub that's suitable for harsh industrial/commercial environmentsIncrease USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.

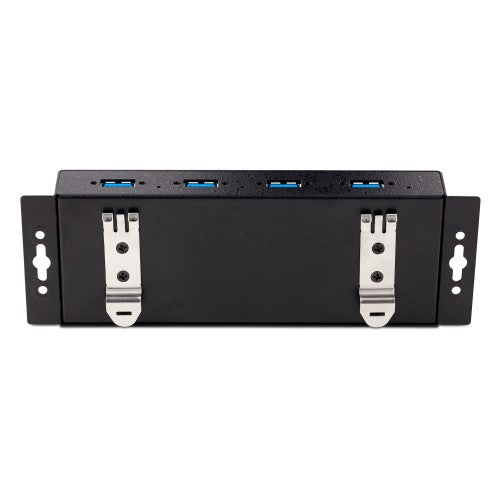

Mount to a Wall, Desk or DIN-Rail
Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices
This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.
The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
Wide Device Compatibility
The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Terminal block port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack | Yes |
| Ports quantity | 4 |
| Cable length | 1.8 m |
| Features | |
| Plug and Play | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 1.8 m |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Steel |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Power plug type | Type M |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 280 g |
| Width | 59 mm |
| Depth | 178 mm |
| Height | 23 mm |
| Package width | 149 mm |
| Package depth | 213 mm |
| Package height | 51 mm |
| Package weight | 500 g |
| Packaging data | |
| Package width | 149 mm |
| Package depth | 213 mm |
| Package height | 51 mm |
| Package weight | 500 g |
| Performance | |
| Plug and Play | Yes |
| Data transfer rate | 5000 Mbit/s |
| Mean time between failures (MTBF) | 243753 h |

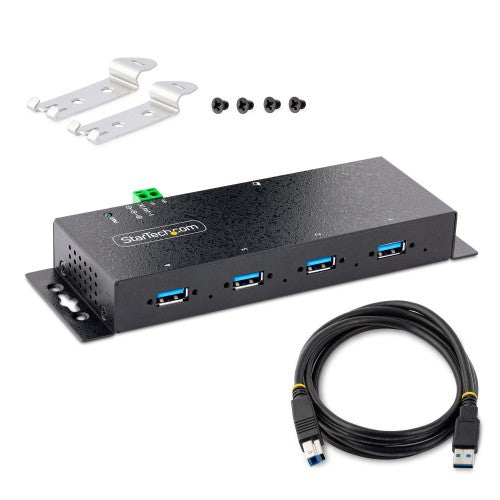

| Packaging content | |
| Cables included | USB Type-A to USB Type-B |
| Quick start guide | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 1.8 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Indication | |
| LED indicators | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 25 pc(s) |
| Other features | |
| Chipset | VIA/VLI - VL817-Q7 |
