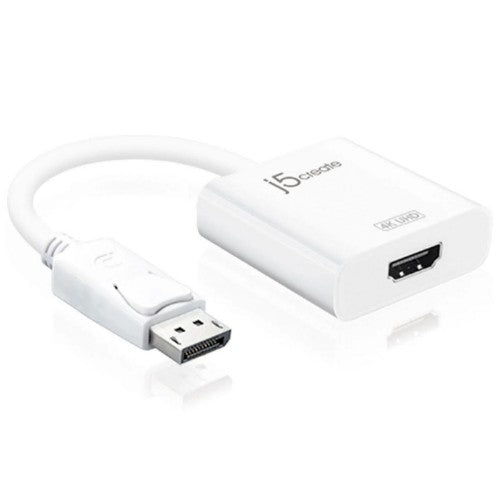

JDA158 DisplayPort to 4K HDMI Active Adapter, White
j5create JDA158 DisplayPort™ to 4K HDMI™ Active Adapter, White
MPN:
JDA158-N
Out of stock
£17.80 GBP
VAT included.
Shipping calculated at checkout.
Details
Key Features
- Active DisplayPort™ conversion
- Compliant with DisplayPort™ v1.2
- Compliant with HDMI™ 1.4a specifications - up to 3 Gbps
- Supports resolutions up to 4K Ultra HD (4096 x 2160 @ 60Hz) and 3D video formats over HDMI™
- Supports audio
- Easy-to-use cable
- No software required
- Easy installation
Description

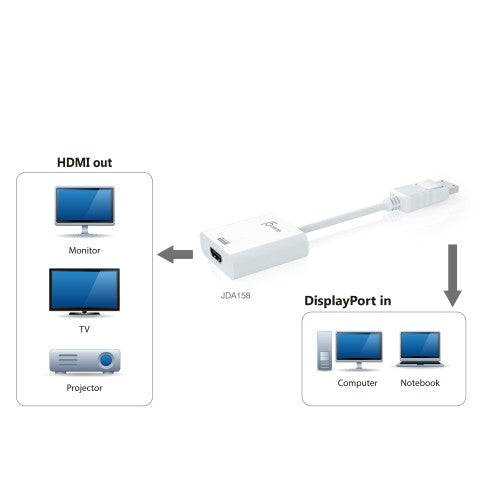

The JDA158 DisplayPort™ to 4K HDMI active adapter allows you to quickly and easily connect your Mac or PC to a 4K HDTV or other display device using a HDMI input. Simply connect the DisplayPort™ end of the connector to your computer and plug your existing HDMI cable from the display into the adapter. The adapter seamlessly converts the DisplayPort™ video signal into a HDMI signal for a fast plug-and-play setup. Fully DisplayPort™ 1.2 compliant, also compatible with DisplayPort™ 1.1Specifications
| Features | |
|---|---|
| Country of origin | Taiwan |
| HDMI version | 1.4b |
| DisplayPort version | 1.2a |
| Product colour | White |
| Cable length | 0.16 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Jacket material | Plastic |
| Data transfer rate | 21.6 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Plug and Play | Yes |
| Windows operating systems supported | Windows 10, Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
| Maximum refresh rate | 60 Hz |
| Voltage rating | 5 V |
| Connector housing material | Plastic |
| Cable colour | White |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Technical details | |
| Country of origin | Taiwan |
| Cable colour | White |
| Power consumption | 150 mA |
| Compatible products | Devices with available DisplayPort™ 1.2 |
| Box contents | 1 x JDA158 DisplayPort™ to 4K HDMI Active Adapter 1 x Quick Installation Guide |
| Warranty period | 2 year(s) |
| Other features | |
| Packaging content | 1 x JDA158 DisplayPort™ to 4K HDMI Active Adapter, 1 x Quick Installation Guide |
| Width | 21 mm |
| Height | 45 mm |
| Depth | 12 mm |
| Supported resolutions | 3840*2160 @60 Hz |
| Cable colour | White |
| Material | Plastic |
| Power consumption | 150 mA |
| Technical features | Active DisplayPort™ conversion Easy installation Supports Audio |
| Quantity per box | 1 pc(s) |
| Compatible products | Devices with available DisplayPort™ 1.2 |
| Weight & dimensions | |
| Width | 21 mm |
| Height | 45 mm |
| Depth | 12 mm |
| Weight | 35 g |
| Package width | 120 mm |
| Package depth | 97 mm |
| Package height | 25 mm |
| Package weight | 76.5 g |
| Packaging data | |
| Packaging content | 1 x JDA158 DisplayPort™ to 4K HDMI Active Adapter, 1 x Quick Installation Guide |
| Package width | 120 mm |
| Package depth | 97 mm |
| Package height | 25 mm |
| Package type | Box |
| Package weight | 76.5 g |
| Quick installation guide | Yes |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Batteries included | No |
| Package type | Box |
| Quick installation guide | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 210 mm |
| Master (outer) case height | 145 mm |
| Master (outer) case gross weight | 1.79 kg |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795080784 |
| Export Control Classification Number (ECCN) | EAR99 |
