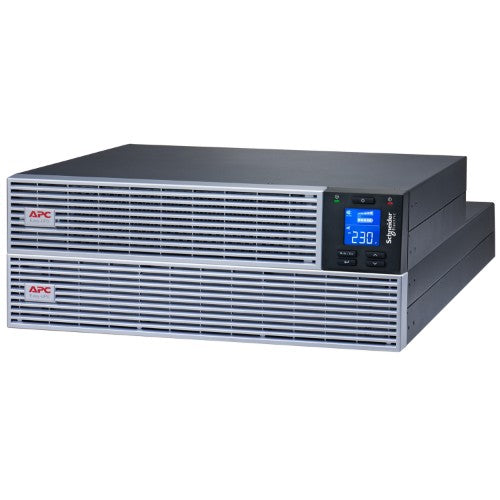

Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit
APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit
Sale price
£2,988.62
Regular price
£4,281.95
Taxes included.
Shipping calculated at checkout.
Details
Description

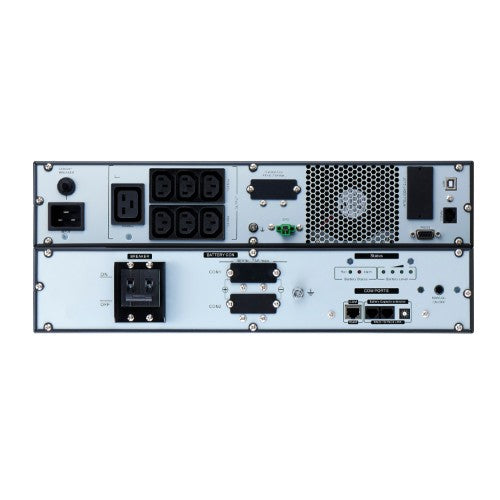

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.Specifications
| Power | |
|---|---|
| Output power | 2700 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 945 J |
| Efficiency | 90% |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| ECO mode | Yes |
| Performance | |
| Audible alarm modes | Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 2700 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 945 J |
| Efficiency | 90% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Power source type | AC |
| Detachable power cord | Yes |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery life (max) | 10 year(s) |
| Battery voltage | 48 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery recharge time | 4.8 h |

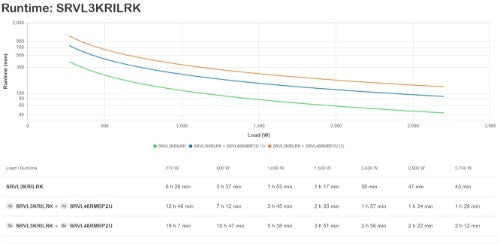

| Typical backup time at half load | 88 min |
| Typical backup time at full load | 45 min |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 4U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Certification | CB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS |
| Built-in fan | Yes |
| Control type | Buttons |
| Display type | LCD |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | CE, RoHS, UKCA |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Package width | 800 mm |
| Package depth | 600 mm |
| Package height | 480 mm |
| Weight | 38.3 kg |
| Width | 438 mm |
| Package weight | 50.6 kg |
| Height | 172 mm |
| Depth | 616 mm |
| Packaging data | |
| Cables included | Phone (RJ-11), Power load cable, RJ-45, RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Package width | 800 mm |
| Package depth | 600 mm |
| Package height | 480 mm |
| Package weight | 50.6 kg |
| Certificates | |
| Certification | CB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS |
| Packaging content | |
| Cables included | Phone (RJ-11), Power load cable, RJ-45, RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
