Smart-UPS On-Line, 1500VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included
APC Smart-UPS On-Line, 1500VA, Lithium-ion, Rackmount 4U, 230V, 8x C13 IEC outlets, SmartSlot, Extended long runtime, Rail kit included
Sale price
£2,896.65
Regular price
£4,161.67
Taxes included.
Shipping calculated at checkout.
Details
Description
At 1350W/1500VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.Specifications
| Power | |
|---|---|
| Output frequency regulation | -3 - 3 Hz |
| Output power | 1350 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 230 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 340 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 1.5 kVA |
| Ports & interfaces | |
| Cable length | 1.83 m |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-A |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of input phases | 1 |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output frequency regulation | -3 - 3 Hz |
| Number of input phases | 1 |
| Output power | 1350 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 230 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 340 J |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| Input frequency | 40 - 70 Hz |
| Power source type | AC |
| Detachable power cord | Yes |
| Heat dissipation | 450 BTU/h |
| Battery | |
| Battery life (max) | 10 year(s) |
| Battery voltage | 48 V |
| Battery technology | Lithium-Ion (Li-Ion) |

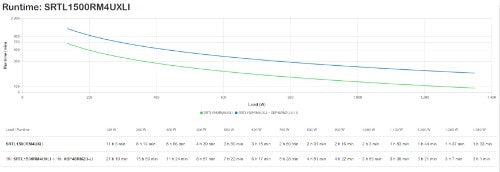

| Typical backup time at half load | 176 min |
| Typical backup time at full load | 93 min |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 4U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Certification | RoHS, CE |
| Cable length | 1.83 m |
| Control type | Buttons |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | Green Premium |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 40.7 kg |
| Width | 432 mm |
| Height | 171 mm |
| Depth | 590 mm |
| Packaging data | |
| Cables included | Power load cable |
| Certificates | |
| Certification | RoHS, CE |
| Packaging content | |
| Cables included | Power load cable |
