15 kVA, 15 kW, 304x477V, 45/65Hz, 60 dB, IP20, 380x907x1400mm, 211kg, White
High-efficiency 3-phase UPS with internal batteries providing a runtime of 25 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.

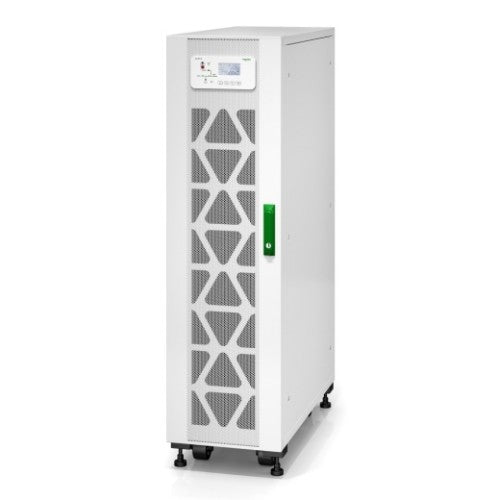

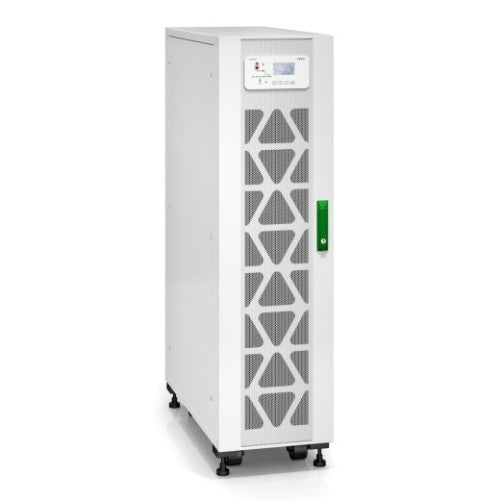

APC E3SUPS15K3IB2 uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W
£5,922.99
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Front-access servicing: simplifies installation and UPS maintenance while minimizing space requirements
- ECO Mode: operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Intuitive user interface: the intuitive graphical user interface allows for easy system configuration
- Easy to install fast: quickly roll the compact and lightweight UPS into position
- Easy Loop Test: verifies UPS performance before you connect your load, without the need for a load bank
- Straightforward installation: including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment
- Optional SNMP Card: when you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT
- Wide Input Voltage Window: saves your battery power for when you really need it - during power cuts!
- Parallel capability: multiple units can be placed in parallel to meet power capacity and redundancy requirements
- Replaceable dust filters: protect the UPS in harsh environments
Description
Easy UPS 3S 15 kVA 400 V 3:1 UPS with internal batteries - 25 minutes runtimeHigh-efficiency 3-phase UPS with internal batteries providing a runtime of 25 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 3% |
| Input power factor | 0.99 |
| Output power | 15000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Crest factor | 3:1 |
| Output power capacity | 15 kVA |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Power protection features | Overload |
| Noise level | 60 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Output voltage regulation | 3% |
| Input power factor | 0.99 |
| Output power | 15000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Power protection features | Overload |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Noise level | 60 dB |
| Crest factor | 3:1 |
| Output power capacity | 15 kVA |
| ECO mode | Yes |
| Input frequency | 45/65 Hz |
| Battery | |
| Number of batteries supported | 2 |
| Battery voltage | 240 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Large tower |
| Product colour | White |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Weight & dimensions | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Weight | 211 kg |
| Width | 380 mm |
| Package weight | 229 kg |
| Height | 1400 mm |
| Depth | 907 mm |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 229 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
